0603WAF4700T5E

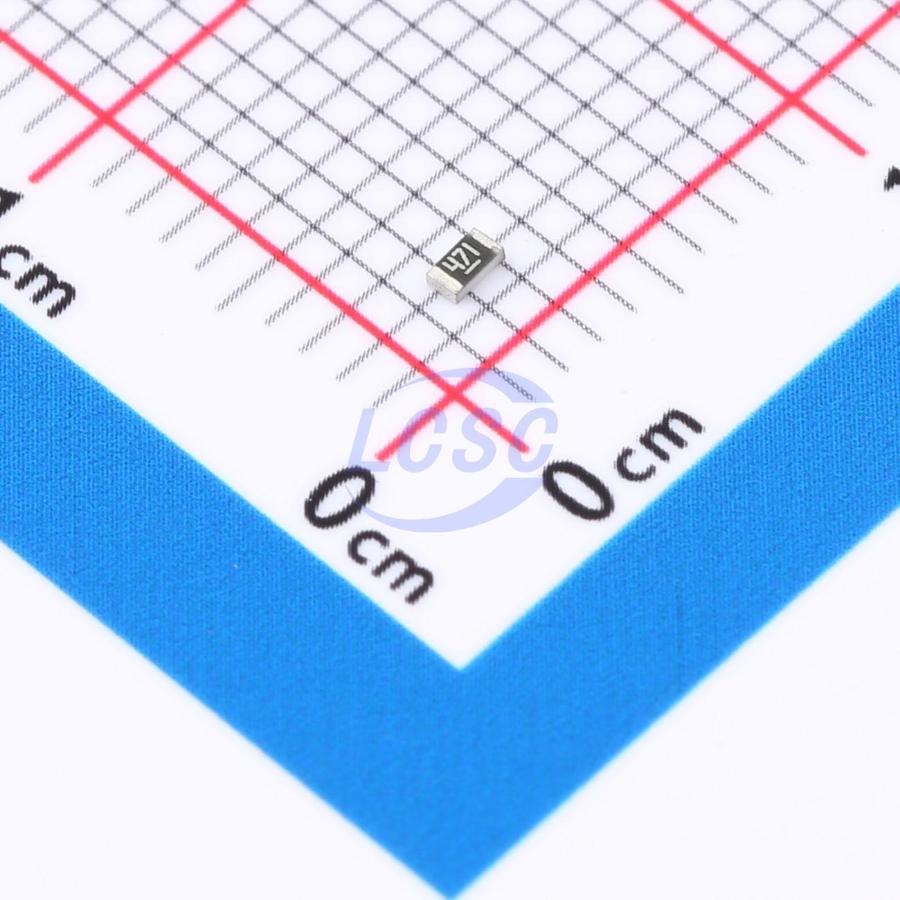

470Ω ±1% 100mW 0603 Thick Film Resistor
RES 470Ω ±1% 100mW 0603
- Manufacturer
- UNI-ROYAL
- Manufacturer part #
- 0603WAF4700T5E
- Store part #
- C23179
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
34,67,700 in stock
#C23179
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.3043 | ₹30.43 |
| 1,000+ | ₹0.2381 | ₹238.10 |
| 5,000+ | ₹0.1985 | ₹992.50 |
| 10,000+ | ₹0.172 | ₹1,720.00 |
| 50,000+ | ₹0.1455 | ₹7,275.00 |
100 × ₹0.3043
₹30.43
excl. GST
₹35.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
0603WAF4700T5E
₹30.43 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 470Ω
- Voltage Rating
- 75V
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.026 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TC0325B4700T5F#C2989099UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 35,080 | ₹3.19 · 35,080 in stock | View |
 | CQ03WAF4700T5E#C2759721UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | On request | Price on request | Quote |
| HP03W5F4700T5E#C2774266UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | On request | Price on request | Quote | |
| PS03W4F4700T5E#C2784997UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | On request | Price on request | Quote | |
 | 0603WAD4700T5E#C407580UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | On request | Price on request | Quote |
Questions about 0603WAF4700T5E
What are the fundamental resistance ratings, tolerance limits, and temperature drift parameters of the 0603WAF4700T5E?
The UNI-ROYAL 0603WAF4700T5E is a thick film surface-mount chip resistor with a nominal resistance of 470 Ω. According to the part number system, the "F" code indicates a ±1% tolerance, while "WA" denotes the 1/10 W power rating. For 0603 resistors with resistance values greater than 10 Ω, the Temperature Coefficient of Resistance (TCR) is ±100 ppm/°C.
Which continuous power ratings and maximum voltage limits apply to this resistor?
The 0603WAF4700T5E has a continuous power rating of 0.1 W (1/10 W) at an ambient temperature of 70°C. It has a maximum continuous working voltage of 75 V and a maximum overload voltage of 150 V. When operated above 70°C, the power rating should be derated according to the manufacturer's derating curve.
What are the physical dimensions and package specifications of the 0603WAF4700T5E?
The resistor is supplied in a 0603 surface-mount package. Its nominal body dimensions are 1.60 ± 0.10 mm in length, 0.80 ± 0.10 mm in width, and 0.45 ± 0.10 mm in height.
What operating temperature range applies to the 0603WAF4700T5E?
The 0603WAF4700T5E is specified for an operating temperature range of −55°C to +155°C. The part number suffix "E" indicates the standard lead-free/environmental protection version defined by the manufacturer.
What packaging options are provided for automated SMT assembly?
The "T5E" suffix indicates tape-and-reel packaging, with "T" representing tape and reel, "5" indicating a standard packing quantity of 5,000 pieces, and "E" denoting the lead-free version. For the 0603 package, components are supplied on paper tape with a 178 mm (7-inch) reel containing 5,000 pieces. The datasheet also states that the resistor is suitable for both wave soldering and reflow soldering.
