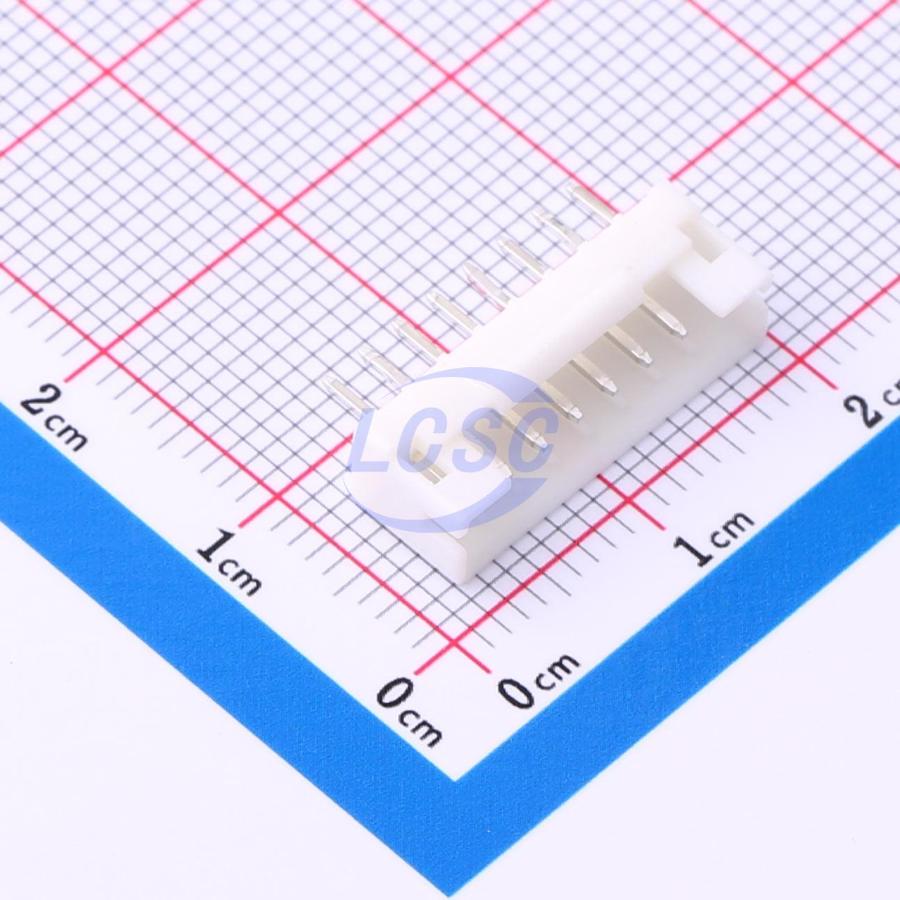

1735446-8

2mm Through Hole 3A 250V -25℃~+85℃ Tin 8P 8 1x8P 1 Through Hole,P=2mm Headers, Male Pins RoHS

Through Hole,P=2mmROHS3 CompliantActive

PCB Mount Header, Vertical, Wire-to-Board, 8 Position, 2 mm Centerline, Partially Shrouded, Tin, Through Hole - Solder, Signal, Natural

Manufacturer: TE Connectivity
Manufacturer part #: 1735446-8
Store part #: C5329526
Package / case: Through Hole,P=2mm
Category: Headers, Male Pins
Packaging: Bag-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C5329526

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹57.38	₹57.38
10+	₹45.86	₹458.60
30+	₹40.85	₹1,225.50
300+	₹33.47	₹10,041.00
600+	₹30.64	₹18,384.00
900+	₹28.91	₹26,019.00

Quantity (min 1)

1 × ₹57.38

₹57.38

excl. GST

₹67.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 300 per bag

1735446-8

₹57.38 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Pitch: 2mm
Connector Type: Through Hole
Flame Retardant Rating: UL94V-0
Current Rating: 3A
Voltage Rating (Max): 250V
Operating Temperature: -25℃~+85℃
Contact Plating: Tin
Number of PINs: 8P
Contact Material: Copper alloy
X-Length of Bottom Edge on Board (Spacing Line): 18mm
Number of PINs Per Row: 8
Pin Structure: 1x8P
Number of Rows: 1

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Bag-packed
Standard pack: 300 / Bag
Sold per: Piece
Minimum order: 1
Unit weight: 0.52 g

Overview

Connector System: Wire-to-Board Number of Positions: 8 Number of Rows: 1 Centerline Spacing (Pitch): 2mm [0.079 in] PCB Mounting Orientation: Vertical All AMP HPI 2.0mm Plugs (206)

Key features

Product Type Characteristics
Configuration Characteristics
Body Characteristics
Termination Characteristics
Mechanical Connection Characteristics
Housing Characteristics
Dimensions
Operating Conditions
Product Compliance: TE part numbers designated as compliant with the EU RoHS directive are manufactured with maximum weight concentrations of Lead, Hexavalent Chromium, Mercury, Polybrominated Biphenyls (PBB), Polybrominated Diphenyl Ethers (PBDE), Dibutyl Phthalate (DBP), Benzyl Butyl Phthalate (BBP), Bis(2-ethylhexyl) Phthalate (DEHP), and Diisobutyl Phthalate (DIBP) not exceeding 0.1% and Cadmium not exceeding 0.01% in homogeneous materials, or are compliant with the applicable exemptions set forth in the Annex of Directive 2011/65/EU (RoHS2). Finished electrical and electronic equipment products will be CE marked in accordance with Directive 2011/65/EU. Components may not be CE marked. In addition, TE part numbers designated as compliant with the EU ELV directive are manufactured with maximum weight concentrations of Lead, Hexavalent Chromium, and Mercury not exceeding 0.1% and Cadmium not exceeding 0.01% in homogeneous materials, or are compliant with the applicable exemptions set forth in the Annex of Directive 2000/53/EC (ELV). Regarding the REACH regulation, information on Substances of Very High Concern (SVHC) contained in articles supplied by TE for this part number is based on the most current "Guidance on requirements for substances in articles" published by the European Chemicals Agency (ECHA) at: https://echa.europa.eu/guidance-documents/guidance-on-reach
