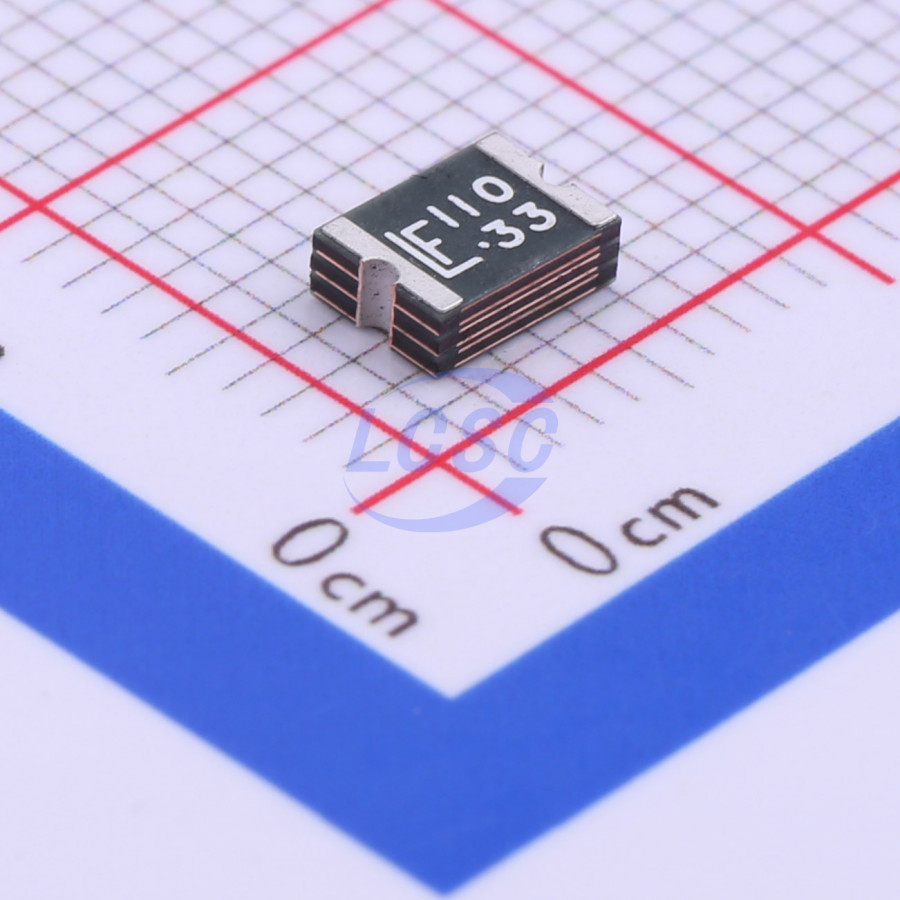

1812L110/33MR
Polymeric PTC Resettable Fuse 33V 1.1A Surface Mount 1812
Popular1812ROHS3 CompliantActive
PTC RESET FUSE 33V 1.1A 1812
- Manufacturer
- Littelfuse
- Manufacturer part #
- 1812L110/33MR
- Store part #
- C142747
- Package / case
- 1812
- Category
- PTC Resettable Fuses
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
69,530 in stock
#C142747
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.25 | ₹81.25 |
| 50+ | ₹12.77 | ₹638.50 |
| 150+ | ₹11.03 | ₹1,654.50 |
| 1,000+ | ₹9.74 | ₹9,740.00 |
| 2,000+ | ₹8.69 | ₹17,380.00 |
| 5,000+ | ₹8.18 | ₹40,900.00 |
5 × ₹16.25
₹81.25
excl. GST
₹95.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
1812L110/33MR
₹81.25 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Voltage - Max
- 33V
- Hold Current
- 1.1A
- Current - Max
- 20A
- Power Dissipation
- 800mW
- Trip Current
- 1.95A
- Height
- 2mm
- Length
- 4.73mm
- Width
- 3.41mm
- Time to Trip(Max)
- 500ms
- Resistance @ 25℃
- 60mΩ
- Resistance - Post Trip (R1) (Max)
- 200mΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.183 g
Overview
The 1812L Series PTC provides surface mount overcurrent protection for applications where resettable protection is desired.
Applications
- Plug and play protection
- PCI cards for motherboards and
- Game console port peripherals protection
- USB peripherals
Key features
- RoHS compliant, lead-free
- Low resistance and halogen-free
- Low-profile
- Fast response
- Compatible with high temperature solders
- Compact design
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MINISMDC110F/24-2#C2649922Littelfuse · 1812 | Littelfuse | 1812 | 5,240 | ₹36.70 · 5,240 in stock | View |
 | SMD1812B110TF/33#C269134Brightking · 1812 | Brightking | 1812 | 4,00,950 | ₹8.22 · 4,00,950 in stock | View |
 | SMD1812P110TF/33#C495358PTTC(Polytronics Tech) · 1812 | PTTC(Polytronics Tech) | 1812 | 7,030 | ₹15.66 · 7,030 in stock | View |
 | ASMD1812-110-33V#C2982280JDTfuse · 1812 | JDTfuse | 1812 | 24,030 | ₹11.32 · 24,030 in stock | View |
 | SMD1812-110-33#C46641155R+O · 1812 | R+O | 1812 | 37,750 | ₹9.16 · 37,750 in stock | View |
