DIODESDatasheet (PDF)

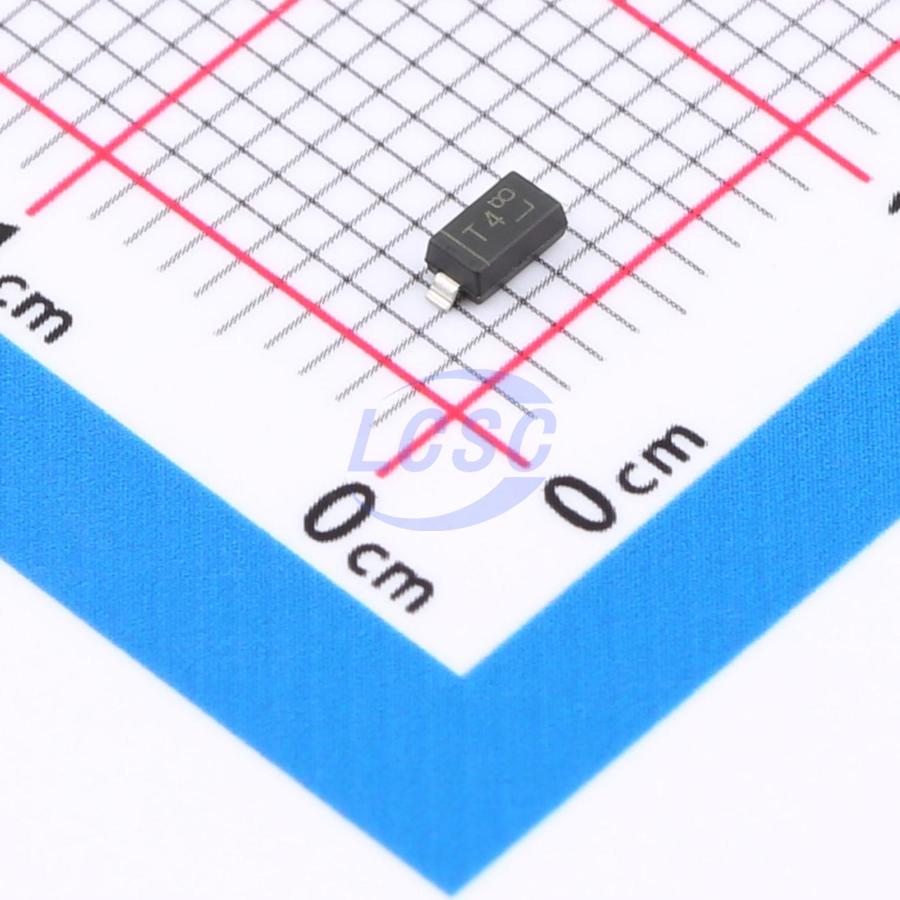

1N4148W-7-F
Diode Independent 100V 300mA Surface Mount SOD-123
PopularSOD-123ROHS3 CompliantActive
DIODE GP 100V 300mA SOD-123
- Manufacturer
- DIODES
- Manufacturer part #
- 1N4148W-7-F
- Store part #
- C83528
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,00,600 in stock
#C83528
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.81 | ₹76.20 |
| 200+ | ₹2.90 | ₹580.00 |
| 600+ | ₹2.49 | ₹1,494.00 |
| 3,000+ | ₹2.18 | ₹6,540.00 |
| 9,000+ | ₹2.06 | ₹18,540.00 |
| 21,000+ | ₹1.98 | ₹41,580.00 |
20 × ₹3.81
₹76.20
excl. GST
₹89.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
1N4148W-7-F
₹76.20 for 20 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- Standalone
- Pd - Power Dissipation
- 400mW
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 1uA@75V
- Non-Repetitive Peak Forward Surge Current
- 2A
- Current - Rectified
- 300mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.033 g
Overview
Key features
- Fast switching speed
- Low forward voltage: 0.715V max at 1mA
- Fast reverse recovery: 4ns max
- Low capacitance: 2pF max
- Surface mount package, ideal for automated insertion
- Suitable for general-purpose switching applications
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- 1N4148WQ for automotive applications requiring specific change control; this product is AEC-Q101 qualified, PPAP capable, and manufactured in IATF 16949 certified facilities
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N4148WQ-7-F#C500775DIODES · SOD-123 | DIODES | SOD-123 | 1,62,165 | ₹16.05 · 1,62,165 in stock | View |
 | 1N4148W#C1884539YFW · SOD-123 | YFW | SOD-123 | 20,550 | ₹1.36 · 20,550 in stock | View |
 | 1N4148W#C917030JSMSEMI · SOD-123 | JSMSEMI | SOD-123 | 25,27,650 | ₹1.11 · 25,27,650 in stock | View |
 | 1N4148WL#C108804Jingdao Microelectronics · SOD-123F | Jingdao Microelectronics | SOD-123F | 16,750 | ₹1.65 · 16,750 in stock | View |
 | 1N4148WL(T4)#C2875079Jingdao Microelectronics · SOD-123FL | Jingdao Microelectronics | SOD-123FL | 1,08,250 | ₹1.38 · 1,08,250 in stock | View |
