VISHAYDatasheet (PDF)

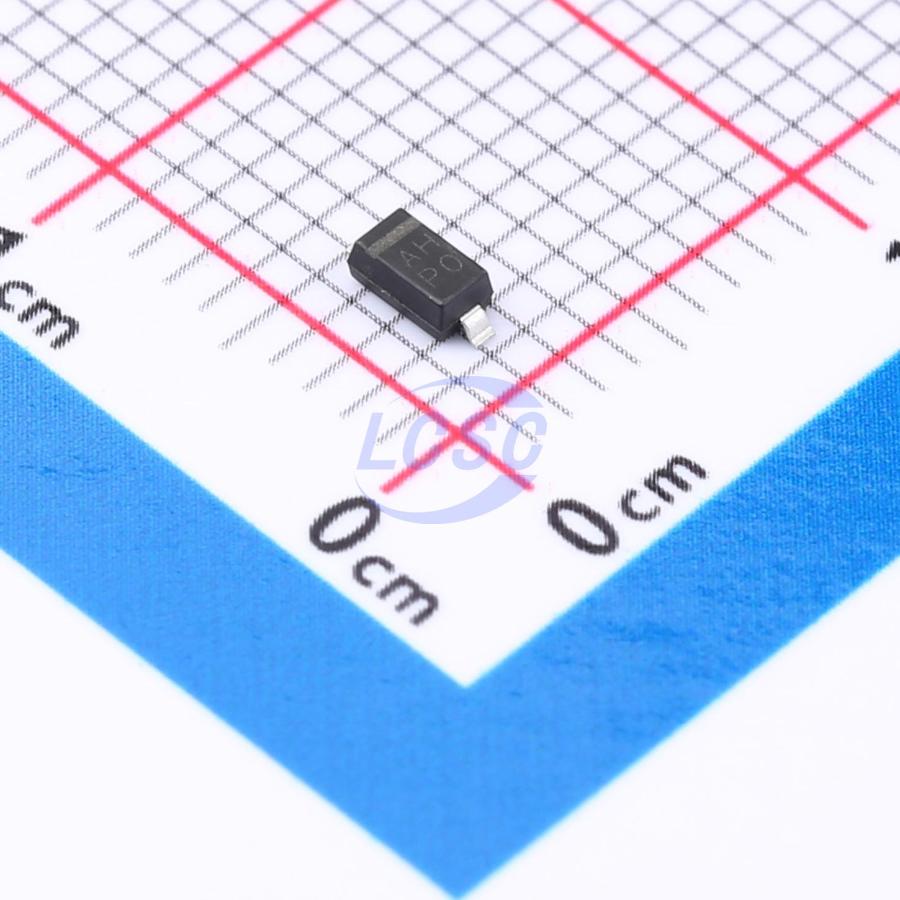

1N4148W-G3-08
Diode Independent 75V 150mA Surface Mount SOD-123
SOD-123ROHS3 CompliantActive
DIODE GP 75V 150mA SOD-123
- Manufacturer
- VISHAY
- Manufacturer part #
- 1N4148W-G3-08
- Store part #
- C3313027
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,925 in stock
#C3313027
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.79 | ₹153.95 |
| 50+ | ₹24.53 | ₹1,226.50 |
| 150+ | ₹21.84 | ₹3,276.00 |
| 500+ | ₹18.50 | ₹9,250.00 |
| 3,000+ | ₹17.00 | ₹51,000.00 |
| 6,000+ | ₹16.11 | ₹96,660.00 |
5 × ₹30.79
₹153.95
excl. GST
₹181.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
1N4148W-G3-08
₹153.95 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 75V
- Pd - Power Dissipation
- 350mW
- Voltage - Forward(Vf@If)
- 1.2V@100mA
- Reverse Leakage Current (Ir)
- 100uA@100V
- Non-Repetitive Peak Forward Surge Current
- 500mA
- Current - Rectified
- 150mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
Key features
- Silicon epitaxial planar diode
- Fast switching diode
- AEC-Q101 compliant versions available (request applicable part numbers)
- Base part number P/N - G3 denotes Green, commercial grade
- Material Category: For definitions of compliance, see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAV16W#C2965560Slkor · SOD-123 | Slkor | SOD-123 | 850 | ₹2.29 · 850 in stock | View |
 | 1N914W#C41419582HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 400 | ₹1.40 · 400 in stock | View |
 | BAV16W#C19267765HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 50 | ₹2.28 · 50 in stock | View |
 | ACDSW4148-HF#C3019733Comchip · SOD-123 | Comchip | SOD-123 | 17 | ₹23.55 · 17 in stock | View |
 | HMMSD4148T1G#C42389371HXY MOSFET · SOD-123 | HXY MOSFET | SOD-123 | 2,880 | ₹2.90 · 2,880 in stock | View |
