JSMSEMI

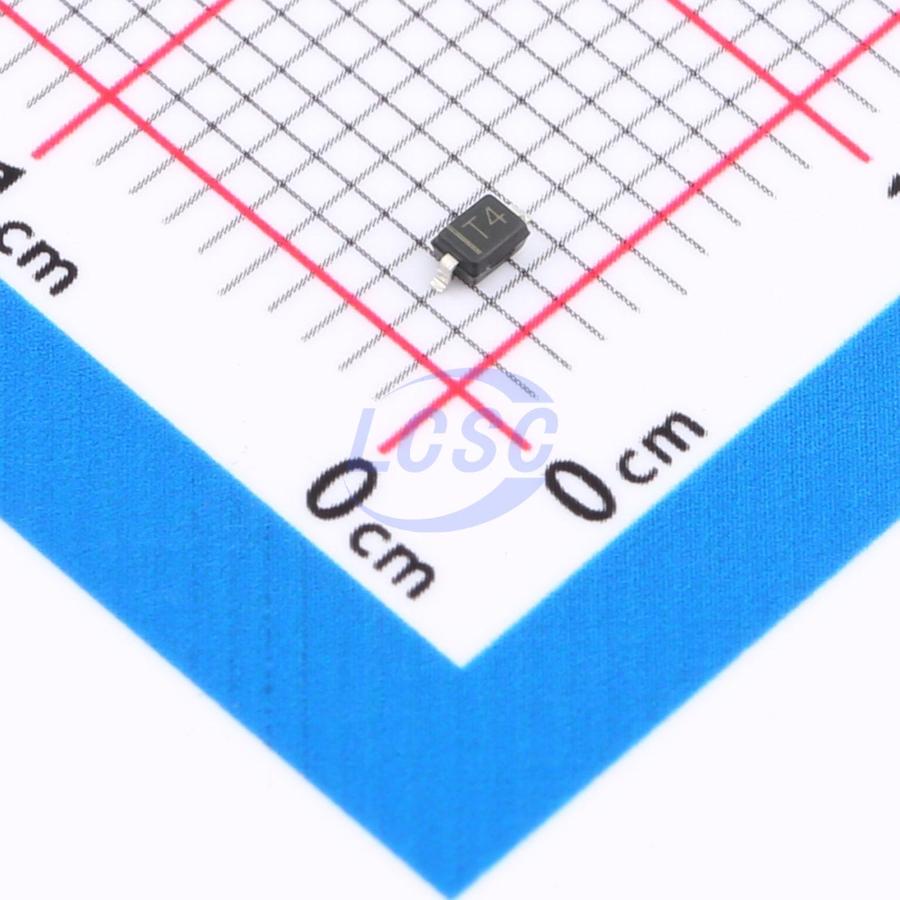

1N4148WS

Diode Independent 75V 200mA Surface Mount SOD-323

PopularSOD-323ROHS CompliantActive

DIODE GP 75V 200mA SOD-323

Manufacturer: JSMSEMI
Manufacturer part #: 1N4148WS
Store part #: C917117
Package / case: SOD-323
Category: Single Diodes
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

17,53,200 in stock

#C917117

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
50+	₹1.10	₹55.00
500+	₹0.8467	₹423.35
3,000+	₹0.7012	₹2,103.60
6,000+	₹0.635	₹3,810.00
24,000+	₹0.5689	₹13,653.60

Quantity (min 50, multiples of 50)

50 × ₹1.10

₹55.00

excl. GST

₹64.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

1N4148WS

₹55.00 for 50 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Reverse Recovery Time (trr): 4ns
Operating Junction Temperature Range: -55℃~+150℃
Voltage - DC Reverse (Vr) (Max): 75V
Diode Configuration: Standalone
Pd - Power Dissipation: 200mW
Voltage - Forward(Vf@If): 1.25V@150mA
Reverse Leakage Current (Ir): 1uA@75V
Non-Repetitive Peak Forward Surge Current: 2A
Current - Rectified: 200mA

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 50 (multiples of 50)
Unit weight: 0.013 g

Alternatives

Similar parts — check the datasheet before substituting.

Part		Manufacturer	Package	Stock	Price from (excl. GST)	Action
	BAV21WS#C916996JSMSEMI · SOD-323	JSMSEMI	SOD-323	6,400	₹1.56 · 6,400 in stock	View
	BAS321#C917126JSMSEMI · SOD-323	JSMSEMI	SOD-323	6,500	₹2.49 · 6,500 in stock	View
