DIODESDatasheet (PDF)

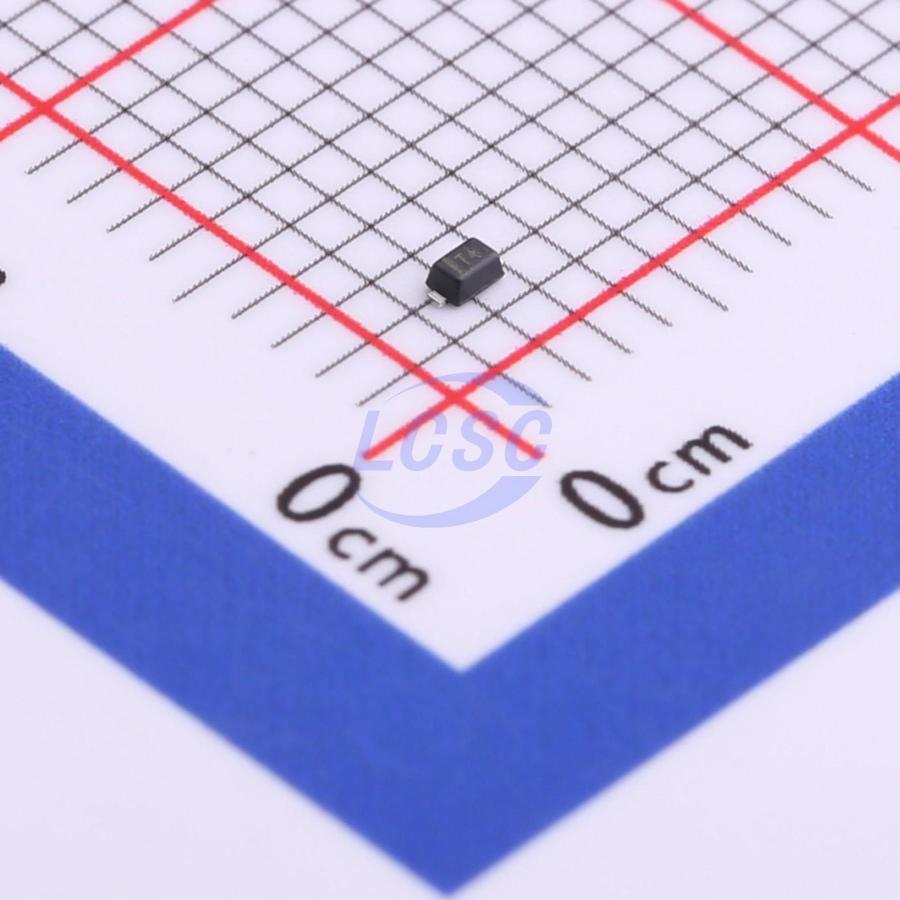

1N4148WTQ-7
Diode Independent 80V 125mA Surface Mount SOD-523
SOD-523ROHS3 CompliantActive
DIODE GP 80V 125mA SOD-523
- Manufacturer
- DIODES
- Manufacturer part #
- 1N4148WTQ-7
- Store part #
- C526201
- Package / case
- SOD-523
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
25 in stock
#C526201
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.88 | ₹139.40 |
| 50+ | ₹23.01 | ₹1,150.50 |
| 150+ | ₹20.92 | ₹3,138.00 |
| 500+ | ₹18.32 | ₹9,160.00 |
| 3,000+ | ₹16.14 | ₹48,420.00 |
| 6,000+ | ₹15.45 | ₹92,700.00 |
5 × ₹27.88
₹139.40
excl. GST
₹164.49 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
1N4148WTQ-7
₹139.40 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 4ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 80V
- Diode Configuration
- Standalone
- Pd - Power Dissipation
- 150mW
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 1uA@75V
- Non-Repetitive Peak Forward Surge Current
- 2A
- Current - Rectified
- 125mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.026 g
Overview
Key features
- Fast switching speed
- Ultra-small SMT package
- General-purpose switching applications
- High conductance
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- 1N4148WTQ for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP capable, manufactured in IATF 16949 certified facility
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAS516#C699078YANGJIE · SOD-523(SC-79) | YANGJIE | SOD-523(SC-79) | 10,850 | ₹3.02 · 10,850 in stock | View |
 | 1N4148WT#C7420320R+O · SOD-523 | R+O | SOD-523 | 25,18,800 | ₹1.68 · 25,18,800 in stock | View |
 | 1N4148WT-7#C83482DIODES · SOD-523 | DIODES | SOD-523 | 39,025 | ₹33.55 · 39,025 in stock | View |
 | 1N4148WT#C5249637ElecSuper · SOD-523 | ElecSuper | SOD-523 | 2,630 | ₹1.73 · 2,630 in stock | View |
 | BAS516#C5178954FUXINSEMI · SOD-523(SC-79) | FUXINSEMI | SOD-523(SC-79) | 13,550 | ₹1.89 · 13,550 in stock | View |
