VISHAYDatasheet (PDF)

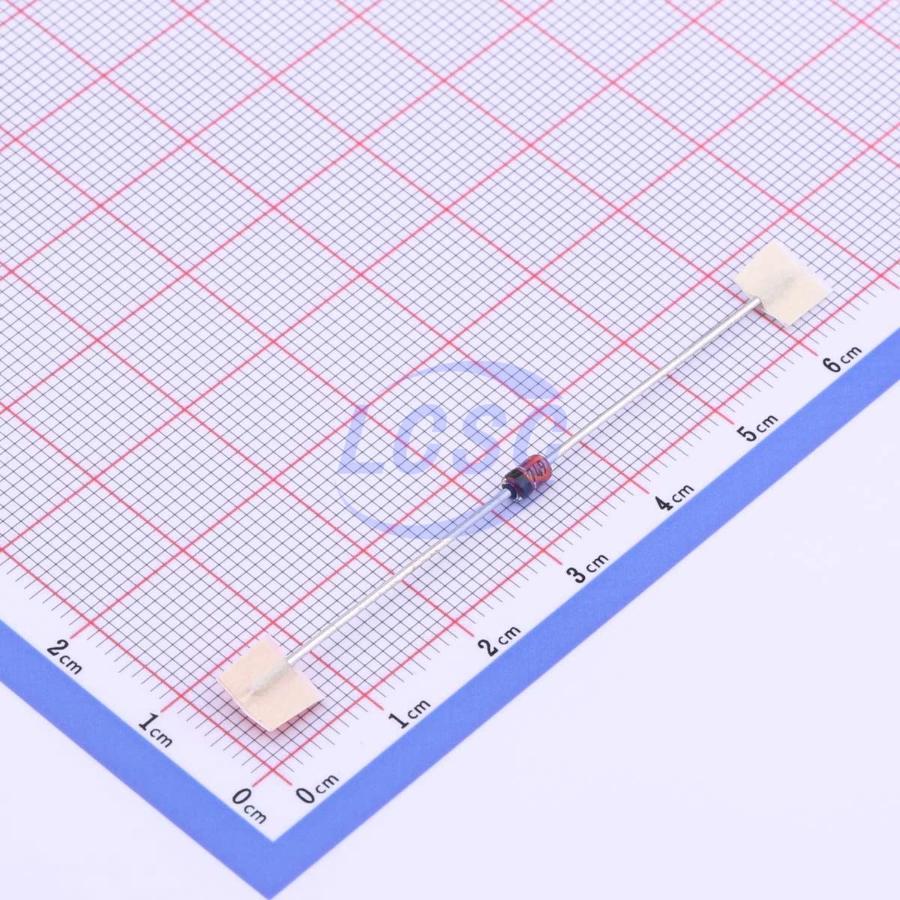

1N4749A-TR
Zener Diode Independent 24V 1300mW Through Hole DO-204AL(DO-41)
DO-204AL(DO-41)ROHS3 CompliantActive
DIODE ZENER 24V 1300mW DO-204AL(DO-41)
- Manufacturer
- VISHAY
- Manufacturer part #
- 1N4749A-TR
- Store part #
- C3734509
- Package / case
- DO-204AL(DO-41)
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,960 in stock
#C3734509
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.45 | ₹62.25 |
| 50+ | ₹9.92 | ₹496.00 |
| 150+ | ₹8.67 | ₹1,300.50 |
| 500+ | ₹7.71 | ₹3,855.00 |
| 2,500+ | ₹6.59 | ₹16,475.00 |
| 5,000+ | ₹6.20 | ₹31,000.00 |
5 × ₹12.45
₹62.25
excl. GST
₹73.46 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1N4749A-TR
₹62.25 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Pd - Power Dissipation
- 1.3W
- Reverse Leakage Current (Ir)
- 5uA
- Impedance(Zzt)
- 25Ω
- Zener Voltage(Range)
- 22.8V~25.2V
- Zener Voltage(Nom)
- 24V
- Impedance(Zzk)
- 750Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.37 g
Overview
Applications
- Voltage stabilization
Key features
- Silicon planar power Zener diodes
- For use in stabilizing and clipping circuits with high power rating
- Standard Zener voltage tolerance is ± 5%
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N4749A-TAP#C241980VISHAY · DO-41 (DO-204AL) | VISHAY | DO-41 (DO-204AL) | 340 | ₹11.29 · 340 in stock | View |
 | 1N4749ATR#C890088onsemi · DO-41 | onsemi | DO-41 | 40 | ₹11.15 · 40 in stock | View |
 | BZV85-C24,113#C550468Nexperia · DO-41 | Nexperia | DO-41 | 60 | ₹8.11 · 60 in stock | View |
 | BZV85-C24,133#C550469Nexperia · DO-41 | Nexperia | DO-41 | 10 | ₹9.10 · 10 in stock | View |
 | BZX85B24V#C432163LGE · DO-41 | LGE | DO-41 | 650 | ₹9.16 · 650 in stock | View |
