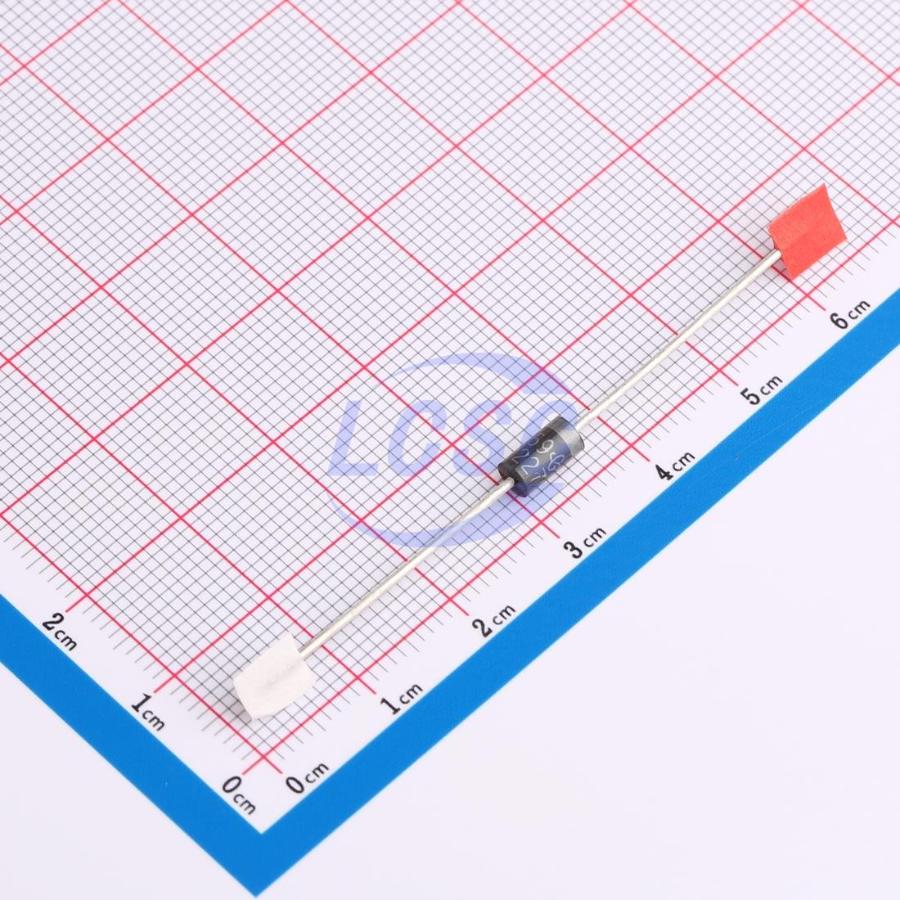

1N5059GP-E3/54
Diode 200V 1A Through Hole DO-204AC(DO-15)
DO-204AC(DO-15)ROHS3 CompliantActive
DIODE STANDARD 200V 1A DO-204AC(DO-15)
- Manufacturer
- VISHAY
- Manufacturer part #
- 1N5059GP-E3/54
- Store part #
- C5357985
- Package / case
- DO-204AC(DO-15)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8 in stock
#C5357985
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹260.55 | ₹260.55 |
| 10+ | ₹254.89 | ₹2,548.90 |
| 30+ | ₹250.99 | ₹7,529.70 |
| 100+ | ₹247.30 | ₹24,730.00 |
1 × ₹260.55
₹260.55
excl. GST
₹307.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
1N5059GP-E3/54
₹260.55 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1.2V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 50A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.531 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes application.
Key features
- Superectifier structure for high reliability application
- Cavity-free glass-passivated junction
- Low forward voltage drop
- Low leakage current
- High forward surge capability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBYV27-200-E3/54#C125939VISHAY · DO-15 | VISHAY | DO-15 | 1 | ₹95.51 · 1 in stock | View |
 | 1N5399#C5280508XCH · DO-15 | XCH | DO-15 | 150 | ₹2.13 · 150 in stock | View |
| 1N5399#C5292901JSCJ · DO-15 | JSCJ | DO-15 | 1,420 | ₹4.43 · 1,420 in stock | View | |
 | 1N5399#C7450321LangJie · DO-15 | LangJie | DO-15 | 3,000 | ₹3.35 · 3,000 in stock | View |
 | 1N5399#C266269Suzhou Good-Ark Elec · DO-15 | Suzhou Good-Ark Elec | DO-15 | 120 | ₹4.00 · 120 in stock | View |
