onsemiDatasheet (PDF)

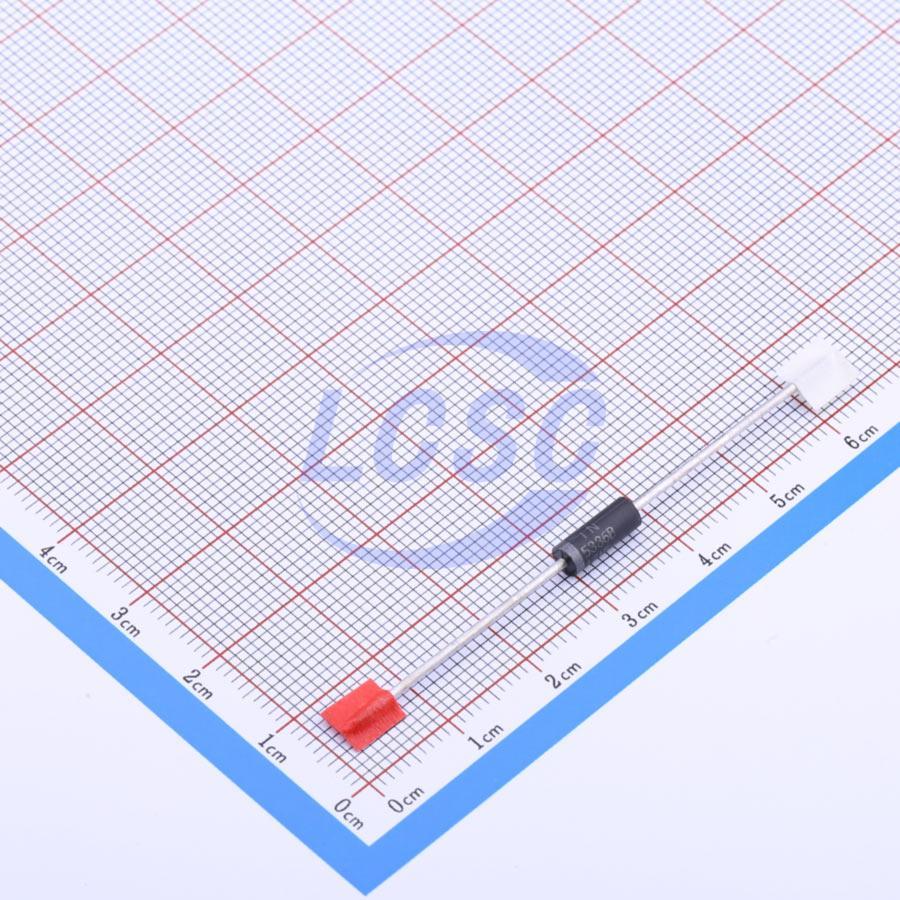

1N5336BRLG
Zener Diode Independent 4.3V 5W Through Hole DO-27
DO-27ROHS3 CompliantActive
DIODE ZENER 4.3V 5W DO-27
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5336BRLG
- Store part #
- C9712
- Package / case
- DO-27
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
47 in stock
#C9712
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.13 | ₹69.13 |
| 10+ | ₹55.91 | ₹559.10 |
| 30+ | ₹50.06 | ₹1,501.80 |
| 100+ | ₹43.13 | ₹4,313.00 |
| 500+ | ₹35.32 | ₹17,660.00 |
| 1,000+ | ₹33.38 | ₹33,380.00 |
1 × ₹69.13
₹69.13
excl. GST
₹81.57 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
1N5336BRLG
₹69.13 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 5W
- Reverse Leakage Current (Ir)
- 10uA@1V
- Impedance(Zzt)
- 2Ω
- Zener Voltage(Range)
- 4.09V~4.52V
- Zener Voltage(Nom)
- 4.3V
- Impedance(Zzk)
- 500Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.733 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N5337BRLG#C9705onsemi · DO-201AD | onsemi | DO-201AD | 1,090 | ₹42.68 · 1,090 in stock | View |
 | 1N5335B#C7430157LGE · DO-27(DO-201AD) | LGE | DO-27(DO-201AD) | 440 | ₹34.77 · 440 in stock | View |
 | 1N5337B#C5331143LGE · DO-27(DO-201AD) | LGE | DO-27(DO-201AD) | 3,335 | ₹32.93 · 3,335 in stock | View |
 | 1N5335BRLG#C9704onsemi · DO-27 | onsemi | DO-27 | On request | ₹194.75 · 0 in stock | View |
 | 1N5337BG#C146735onsemi · DO-201 | onsemi | DO-201 | On request | ₹56.44 · 0 in stock | View |
