onsemiDatasheet (PDF)

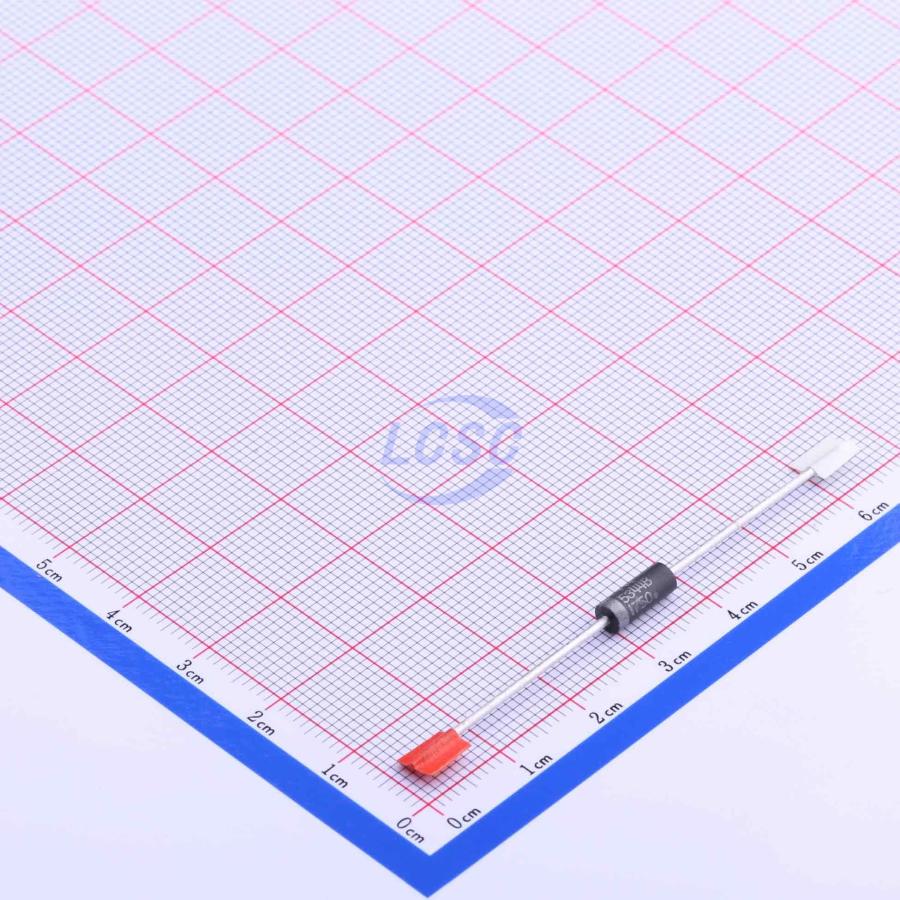

1N5344BRLG
Zener Diode Independent 8.2V 5W Through Hole DO-27
DO-27ROHS3 CompliantActive
DIODE ZENER 8.2V 5W DO-27
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5344BRLG
- Store part #
- C9709
- Package / case
- DO-27
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
85 in stock
#C9709
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹55.26 | ₹276.30 |
| 50+ | ₹44.49 | ₹2,224.50 |
| 150+ | ₹34.78 | ₹5,217.00 |
| 500+ | ₹29.03 | ₹14,515.00 |
| 2,500+ | ₹26.46 | ₹66,150.00 |
| 4,000+ | ₹24.91 | ₹99,640.00 |
5 × ₹55.26
₹276.30
excl. GST
₹326.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
1N5344BRLG
₹276.30 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 5W
- Reverse Leakage Current (Ir)
- 10uA
- Impedance(Zzt)
- 1.5Ω
- Zener Voltage(Range)
- 7.79V~8.61V
- Zener Voltage(Nom)
- 8.2V
- Impedance(Zzk)
- 200Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.733 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CZ5344B BK PBFREE#C5690549Central · DO-201 | Central | DO-201 | On request | ₹152.67 · 0 in stock | View | |
| CZ5344B TR PBFREE#C5690551Central · DO-201 | Central | DO-201 | On request | ₹61.97 · 0 in stock | View | |
| 1N5344B_R2_00001#C6984145PANJIT · DO-201AE | PANJIT | DO-201AE | On request | ₹37.18 · 0 in stock | View | |
 | 1N5343BRLG#C9708onsemi · DO-27 | onsemi | DO-27 | On request | ₹61.31 · 0 in stock | View |
| CZ5345B BK PBFREE#C6170475Central · DO-201 | Central | DO-201 | On request | ₹152.67 · 0 in stock | View | |
