onsemiDatasheet (PDF)

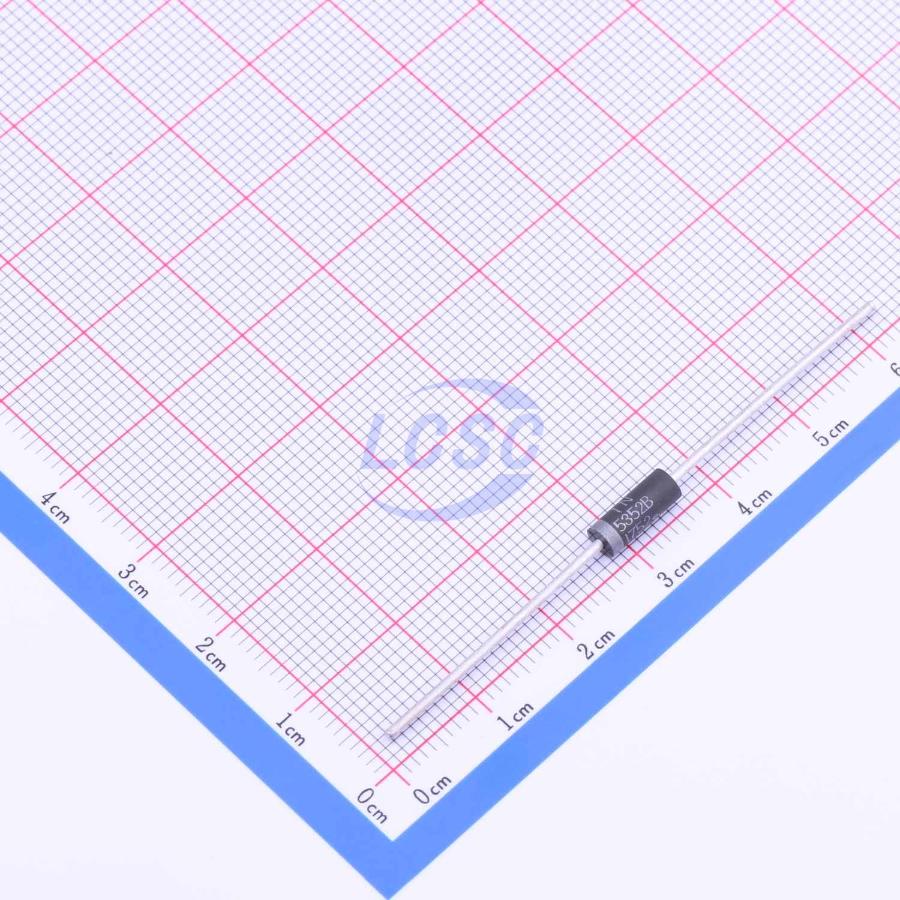

1N5352BG
Zener Diode Independent 15V 5W Through Hole DO-201
DO-201ROHS3 CompliantActive
DIODE ZENER 15V 5W DO-201
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5352BG
- Store part #
- C232447
- Package / case
- DO-201
- Category
- Single Zener Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
995 in stock
#C232447
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.83 | ₹77.83 |
| 10+ | ₹61.27 | ₹612.70 |
| 30+ | ₹54.30 | ₹1,629.00 |
| 100+ | ₹45.35 | ₹4,535.00 |
| 500+ | ₹39.03 | ₹19,515.00 |
| 1,000+ | ₹36.63 | ₹36,630.00 |
1 × ₹77.83
₹77.83
excl. GST
₹91.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
1N5352BG
₹77.83 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 5W
- Reverse Leakage Current (Ir)
- 500nA
- Impedance(Zzt)
- 2.5Ω
- Zener Voltage(Range)
- 14.25V~15.75V
- Zener Voltage(Nom)
- 15V
- Impedance(Zzk)
- 75Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.733 g
Overview
This is a complete series of 5 Watt Zener diodes with tight limits and better operating characteristics that reflect the superior capabilities of silicon- oxide passivated junctions. All this in an axial lead, transfer- molded plastic package that offers protection in all common environmental conditions.
Key features
- Zener Voltage Range - 3.3V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Surge Rating of up to 180W @ 8.3ms
- Maximum Limits Guaranteed on up to Six Electrical Parameters
- Pb- Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N5351BRLG#C9710onsemi · DO-27 | onsemi | DO-27 | On request | ₹82.91 · 0 in stock | View |
 | 1N5353BRLG#C9087onsemi · DO-27 | onsemi | DO-27 | 3,935 | ₹55.26 · 3,935 in stock | View |
| CZ5352B TR PBFREE#C6580873Central · DO-201 | Central | DO-201 | On request | ₹71.75 · 0 in stock | View | |
| CZ5352B BK PBFREE#C6923892Central · DO-201 | Central | DO-201 | On request | ₹232.19 · 0 in stock | View | |
 | 1N5352BRLG#C9711onsemi · DO-27 | onsemi | DO-27 | On request | ₹100.81 · 0 in stock | View |
