onsemiDatasheet (PDF)

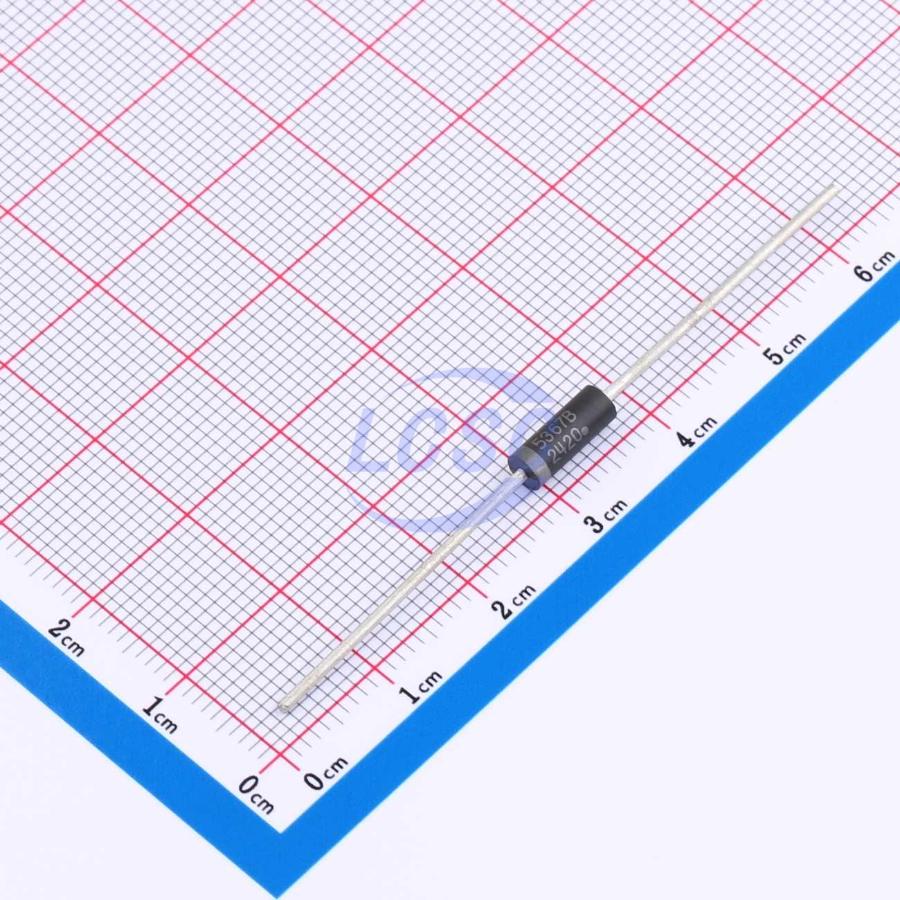

1N5367BG
Zener Diode 43V 5W Through Hole,D3.3xL8.38mm
Through Hole,D3.3xL8.4mmROHS3 CompliantActive
DIODE ZENER 43V 5W Through Hole,D3.3xL8.38mm
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5367BG
- Store part #
- C154596
- Package / case
- Through Hole,D3.3xL8.4mm
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
71 in stock
#C154596
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹69.56 | ₹69.56 |
| 10+ | ₹54.39 | ₹543.90 |
| 30+ | ₹47.89 | ₹1,436.70 |
| 100+ | ₹39.88 | ₹3,988.00 |
| 500+ | ₹36.20 | ₹18,100.00 |
| 1,000+ | ₹34.03 | ₹34,030.00 |
1 × ₹69.56
₹69.56
excl. GST
₹82.08 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
1N5367BG
₹69.56 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 5W
- Reverse Leakage Current (Ir)
- 500nA@32.7V
- Impedance(Zzt)
- 20Ω
- Zener Voltage(Range)
- 40.85V~45.15V
- Zener Voltage(Nom)
- 43V
- Impedance(Zzk)
- 190Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.871 g
Overview
This is a complete series of 5 Watt Zener diodes with tight limits and better operating characteristics that reflect the superior capabilities of silicon- oxide passivated junctions. All this in an axial lead, transfer- molded plastic package that offers protection in all common environmental conditions.
Key features
- Zener Voltage Range - 3.3V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Surge Rating of up to 180W @ 8.3ms
- Maximum Limits Guaranteed on up to Six Electrical Parameters
- Pb- Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N5366BG#C898896onsemi · Through Hole,D3.3xL8.4mm | onsemi | Through Hole,D3.3xL8.4mm | 66 | ₹58.90 · 66 in stock | View |
 | 1N5367BRLG#C894807onsemi · Through Hole,D3.3xL8.4mm | onsemi | Through Hole,D3.3xL8.4mm | On request | ₹27.19 · 0 in stock | View |
 | 1N5368BG#C898897onsemi · Through Hole,D3.3xL8.38mm | onsemi | Through Hole,D3.3xL8.38mm | On request | ₹40.56 · 0 in stock | View |
