onsemiDatasheet (PDF)

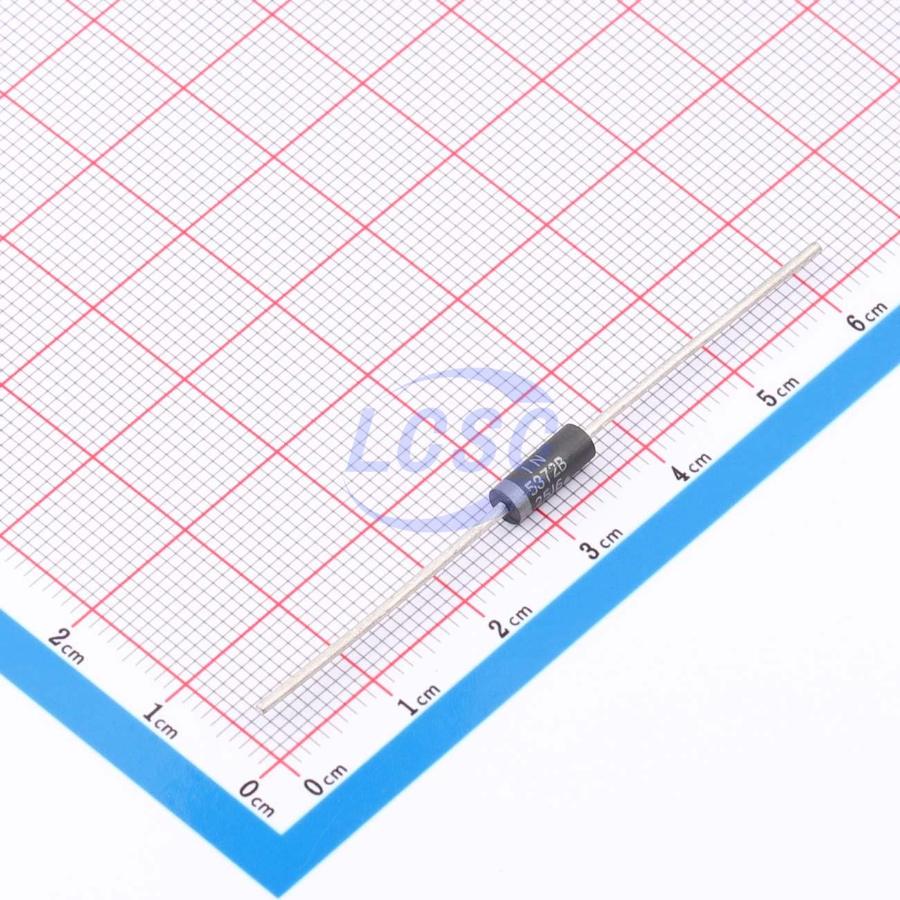

1N5372BG
1 Independent 58.9V~65.1V 62V Through Hole,D3.3xL8.38mm Single Zener Diodes RoHS
Through Hole,D3.3xL8.38mmROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5372BG
- Store part #
- C898898
- Package / case
- Through Hole,D3.3xL8.38mm
- Category
- Single Zener Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
91 in stock
#C898898
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.68 | ₹57.68 |
| 10+ | ₹56.37 | ₹563.70 |
| 30+ | ₹55.29 | ₹1,658.70 |
| 100+ | ₹54.43 | ₹5,443.00 |
1 × ₹57.68
₹57.68
excl. GST
₹68.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
1N5372BG
₹57.68 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+200℃
- Pd - Power Dissipation
- 5W
- Reverse Leakage Current (Ir)
- 500nA@47.1V
- Impedance(Zzt)
- 42Ω
- Zener Voltage(Range)
- 58.9V~65.1V
- Zener Voltage(Nom)
- 62V
- Impedance(Zzk)
- 400Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.567 g
Overview
This is a complete series of 5 Watt Zener diodes with tight limits and better operating characteristics that reflect the superior capabilities of silicon- oxide passivated junctions. All this in an axial lead, transfer- molded plastic package that offers protection in all common environmental conditions.
Key features
- Zener Voltage Range - 3.3V to 200V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Surge Rating of up to 180W @ 8.3ms
- Maximum Limits Guaranteed on up to Six Electrical Parameters
- Pb- Free Packages are Available
