onsemiDatasheet (PDF)
1N5404RL

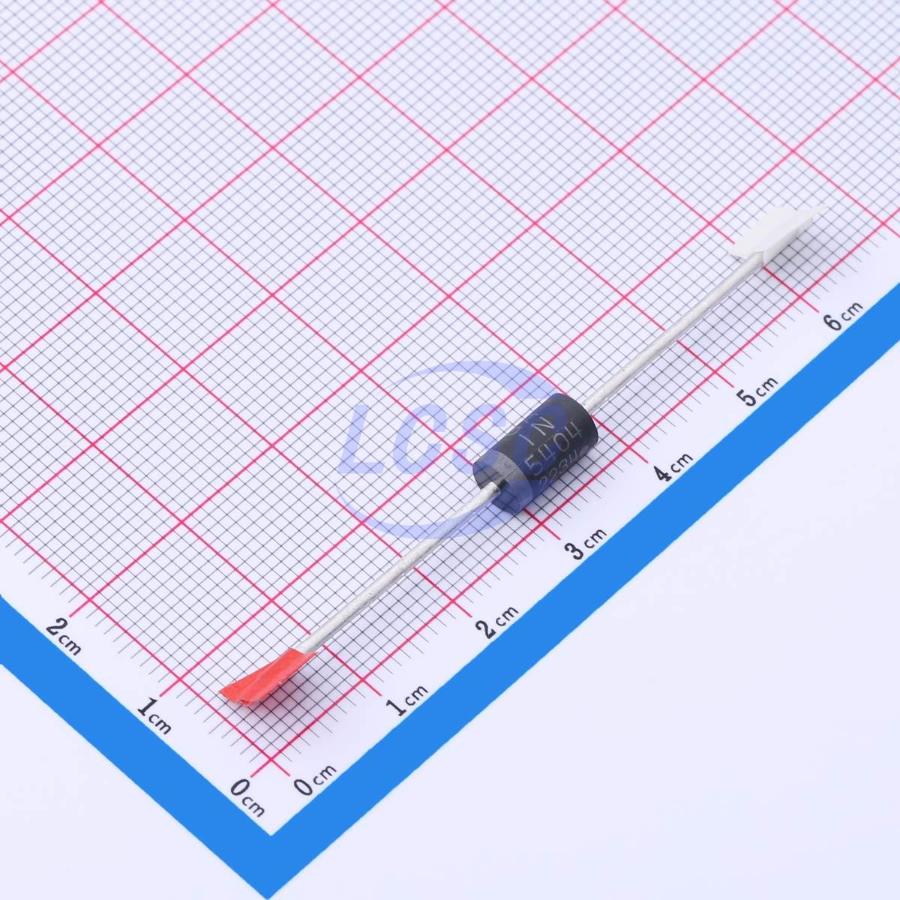

Diode 400V 3A Through Hole D5xL8mm
Through Hole,D5xL8mmROHS CompliantActive
DIODE STANDARD 400V 3A Through Hole D5xL8mm
- Manufacturer
- onsemi
- Manufacturer part #
- 1N5404RL
- Store part #
- C5208275
- Package / case
- Through Hole,D5xL8mm
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
27 in stock
#C5208275
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.61 | ₹100.61 |
| 10+ | ₹82.15 | ₹821.50 |
| 30+ | ₹72.80 | ₹2,184.00 |
| 100+ | ₹63.68 | ₹6,368.00 |
| 500+ | ₹55.63 | ₹27,815.00 |
| 1,200+ | ₹52.81 | ₹63,372.00 |
1 × ₹100.61
₹100.61
excl. GST
₹118.72 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,200 per reel
1N5404RL
₹100.61 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 400V
- Voltage - Forward(Vf@If)
- 1V@3A
- Reverse Leakage Current (Ir)
- 10uA
- Non-Repetitive Peak Forward Surge Current
- 200A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,200 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.48 g
Overview
Lead mounted standard recovery rectifiers are designed for use in power supplies and other applications having need of a device with the following features
Key features
- High Current to Small Size
- High Surge Current Capability
- Low Forward Voltage Drop
- Void−Free Economical Plastic Package
- Available in Volume Quantities
- Plastic Meets UL 94 V−0 for Flammability
- These are Pb−Free Devices
