MICROCHIPDatasheet (PDF)

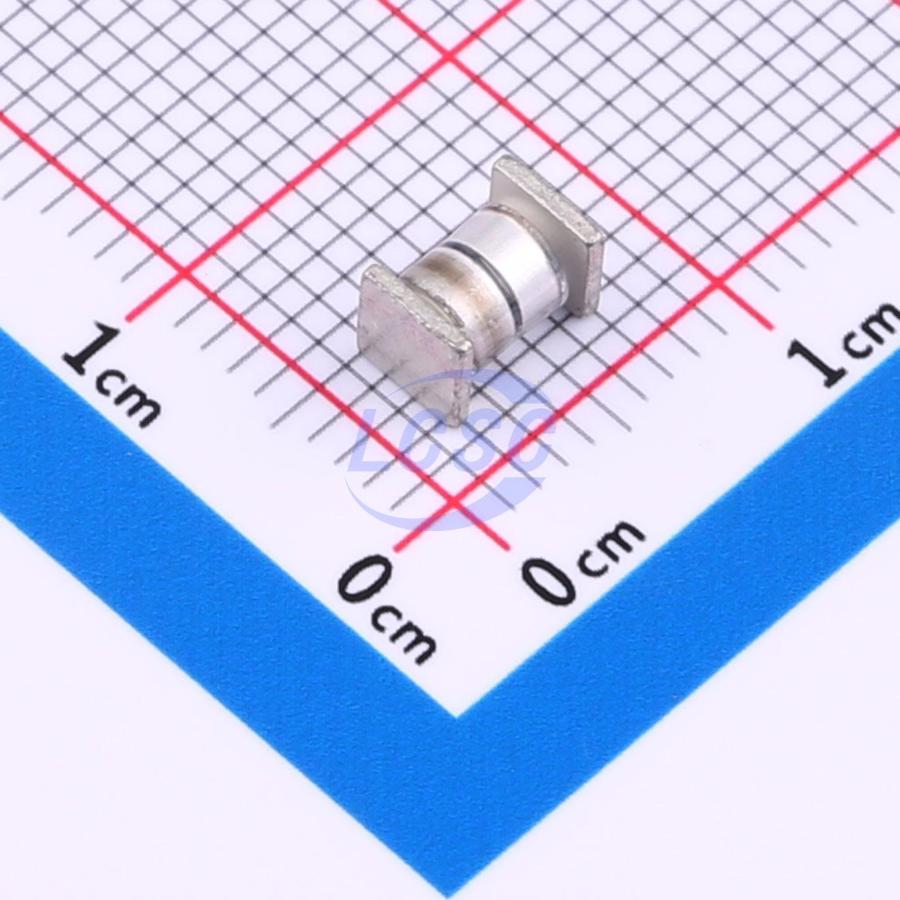

1N5809US
Diode 100V 6A MELF-SQ
MELF-SQROHS3 CompliantActive
DIODE GP 100V 6A MELF-SQ
- Manufacturer
- MICROCHIP
- Manufacturer part #
- 1N5809US
- Store part #
- C6797970
- Package / case
- MELF-SQ
- Category
- Single Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C6797970
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹2,077.65 | ₹2,077.65 |
| 10+ | ₹1,985.93 | ₹19,859.30 |
| 30+ | ₹1,827.23 | ₹54,816.90 |
| 100+ | ₹1,688.78 | ₹1,68,878.00 |
1 × ₹2,077.65
₹2,077.65
excl. GST
₹2,451.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1 per bag
1N5809US
₹2,077.65 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 30ns
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - Forward(Vf@If)
- 875mV@4A
- Reverse Leakage Current (Ir)
- 5uA@100V
- Non-Repetitive Peak Forward Surge Current
- 125A
- Current - Rectified
- 6A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.7 g
Overview
This “Ultrafast Recovery” rectifier diode series is ideal for high-reliability applications where a failure cannot be tolerated. The 6.0 amp rated rectifiers with working peak reverse voltages from 50 to 150 volts are hermetically sealed with void-less glass construction using an internal “Category 1” metallurgical bond. These devices are available in both surface mount MELF and leaded package configurations.
Applications
- Switching power supplies or other applications requiring extremely fast switching & low forward loss.
Key features
- JEDEC registered surface mount equivalent of 1N5807, 1N5809, 1N5811 series.
- Void-less hermetically sealed glass package.
- Quadruple-layer passivation.
- Extremely robust construction.
- Internal “Category 1” metallurgical bonds.
- JAN, JANTX, JANTXV and JANS qualifications are available per MIL-PRF-19500/477.
- RoHS compliant versions available (commercial grade only).
