VISHAYDatasheet (PDF)

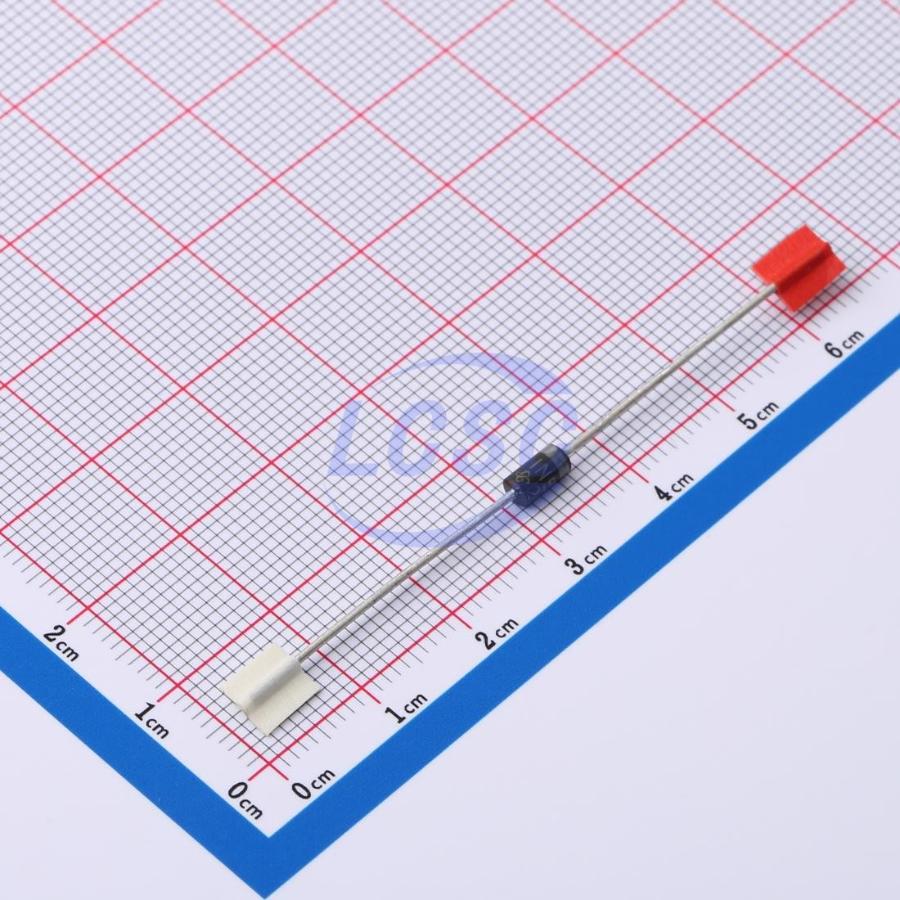

1N5817-E3/54
Diode 20V 1A Through Hole DO-204AL
DO-204ALROHS3 CompliantActive
DIODE SCHOTTKY 20V DO-204AL
- Manufacturer
- VISHAY
- Manufacturer part #
- 1N5817-E3/54
- Store part #
- C5224061
- Package / case
- DO-204AL
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
29 in stock
#C5224061
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.28 | ₹61.28 |
| 10+ | ₹49.11 | ₹491.10 |
| 30+ | ₹43.90 | ₹1,317.00 |
| 100+ | ₹37.60 | ₹3,760.00 |
| 500+ | ₹34.77 | ₹17,385.00 |
| 1,000+ | ₹33.04 | ₹33,040.00 |
1 × ₹61.28
₹61.28
excl. GST
₹72.31 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,500 per reel
1N5817-E3/54
₹61.28 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Voltage - Forward(Vf@If)
- 450mV@1A
- Reverse Leakage Current (Ir)
- 1mA@20V
- Non-Repetitive Peak Forward Surge Current
- 25A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.4 g
Overview
Applications
- Low voltage high frequency inverters
- Freewheeling
- DC/DC converters
- Polarity protection applications
Key features
- Guardring for overvoltage protection
- Very small conduction losses
- Extremely fast switching
- Low forward voltage drop
- High frequency operation
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N5817#C315569JSCJ · DO-41 | JSCJ | DO-41 | On request | Price on request | Quote |
 | 1N5818-E3/54#C5334404VISHAY · DO-41 | VISHAY | DO-41 | 5 | ₹29.48 · 5 in stock | View |
 | 1N5817-T#C507852DIODES · DO-41 | DIODES | DO-41 | 7,820 | ₹13.14 · 7,820 in stock | View |
 | 1N5819-E3/54#C145202VISHAY · DO-41 | VISHAY | DO-41 | 1,565 | ₹18.97 · 1,565 in stock | View |
 | 1N5819-E3/73#C145438VISHAY · DO-41 | VISHAY | DO-41 | 45 | ₹27.35 · 45 in stock | View |
