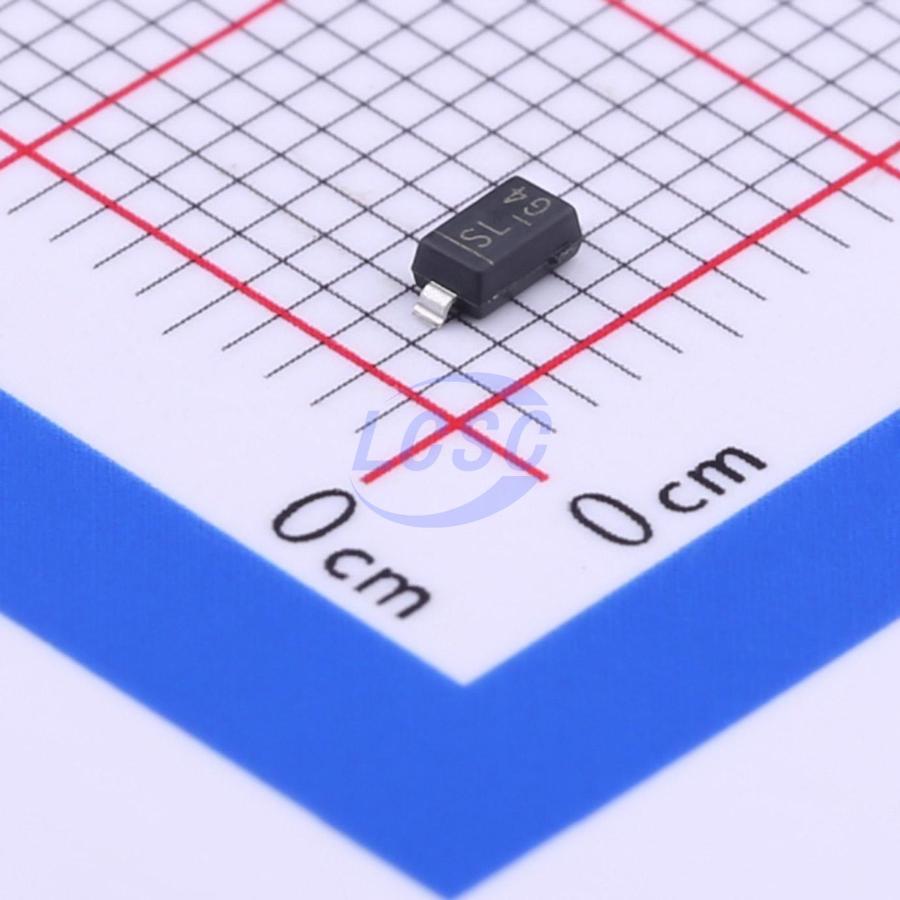

1N5819HW-7-F
1 Independent 40V 450mV@1A 1A SOD-123 Single Diodes RoHS
PopularSOD-123ROHS3 CompliantActive
Voltage: 40V Current: 1A
- Manufacturer
- DIODES
- Manufacturer part #
- 1N5819HW-7-F
- Store part #
- C82544
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,20,620 in stock
#C82544
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.59 | ₹75.90 |
| 100+ | ₹6.27 | ₹627.00 |
| 300+ | ₹5.60 | ₹1,680.00 |
| 3,000+ | ₹5.03 | ₹15,090.00 |
| 6,000+ | ₹4.83 | ₹28,980.00 |
| 9,000+ | ₹4.70 | ₹42,300.00 |
10 × ₹7.59
₹75.90
excl. GST
₹89.56 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
1N5819HW-7-F
₹75.90 for 10 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 450mV@1A
- Reverse Leakage Current (Ir)
- 1mA@40V
- Non-Repetitive Peak Forward Surge Current
- 25A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The device is a single rectifier offering low VF and excellent high temperature stability. This device is ideal for use in general rectification applications.
Applications
- For use in low-voltage, high-frequency inverters
- Free wheeling
- Polarity protection applications
Key features
- High Surge Capability
- Low Power Loss, High Efficiency
- High Current Capability and Low Forward Voltage Drop
- Guard Ring Die Construction for Transient Protection
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS1040L_R1_00001#C305161PANJIT · SOD-123 | PANJIT | SOD-123 | 7,450 | ₹6.59 · 7,450 in stock | View |
 | DTSS14L#C5161857ZHIDE · SOD-123FL | ZHIDE | SOD-123FL | 470 | ₹8.14 · 470 in stock | View |
 | 1N5819W#C169540Jingdao Microelectronics · SOD-123F | Jingdao Microelectronics | SOD-123F | 1,16,000 | ₹2.35 · 1,16,000 in stock | View |
 | B5819W#C47283674TWGMC · SOD-123 | TWGMC | SOD-123 | 12,200 | ₹2.13 · 12,200 in stock | View |
 | B5819W#C5763864YFW · SOD-123 | YFW | SOD-123 | 3,000 | ₹3.74 · 3,000 in stock | View |
