MICROCHIPDatasheet (PDF)

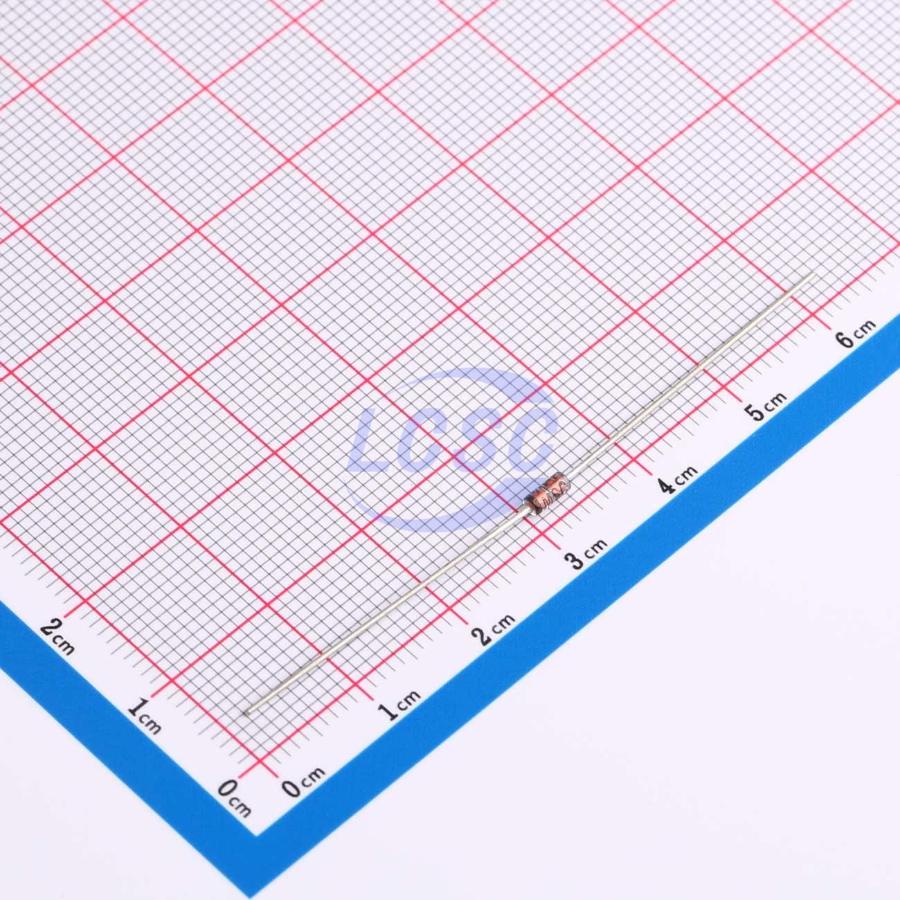

1N914
Diode 75V 200mA Through Hole DO-35
DO-35Active
DIODE STANDARD 75V 200mA DO-35
- Manufacturer
- MICROCHIP
- Manufacturer part #
- 1N914
- Store part #
- C5444762
- Package / case
- DO-35
- Category
- Single Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11 in stock
#C5444762
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹310.31 | ₹310.31 |
| 10+ | ₹264.49 | ₹2,644.90 |
| 30+ | ₹235.82 | ₹7,074.60 |
| 100+ | ₹206.30 | ₹20,630.00 |
| 500+ | ₹193.05 | ₹96,525.00 |
| 1,000+ | ₹187.40 | ₹1,87,400.00 |
1 × ₹310.31
₹310.31
excl. GST
₹366.17 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per bag
1N914
₹310.31 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 75V
- Voltage - Forward(Vf@If)
- 1.2V@50mA
- Reverse Leakage Current (Ir)
- 500nA@75V
- Current - Rectified
- 200mA
- Non-Repetitive Peak Forward Surge Current
- 2A
Packaging & compliance
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 5,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.175 g
Overview
This small low capacitance diode, with very fast switching speeds, is hermetically sealed and bonded into a double-plug DO-35 package. It may be used in a variety of very high speed applications including switchers, detectors, transient OR'ing, logic arrays, blocking, as well as low-capacitance steering diodes, etc.
Applications
- High frequency data lines
- RS-232 & RS–422 interface networks
- Ethernet 10 base T
- Low-capacitance steering diodes
- LAN
- Computers
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1N4448#C258170onsemi · DO-35 | onsemi | DO-35 | On request | ₹4.48 · 0 in stock | View |
 | 1N914TR#C896647onsemi · DO-35 | onsemi | DO-35 | 7,860 | ₹3.08 · 7,860 in stock | View |
| 1N916#C895282onsemi · DO-35 | onsemi | DO-35 | 55 | ₹5.11 · 55 in stock | View | |
| BAV19TR#C896659onsemi · DO-35 | onsemi | DO-35 | 925 | ₹12.48 · 925 in stock | View | |
 | FDH333TR#C896727onsemi · DO-35 | onsemi | DO-35 | 1,170 | ₹24.41 · 1,170 in stock | View |
