1PMT5933BT1G

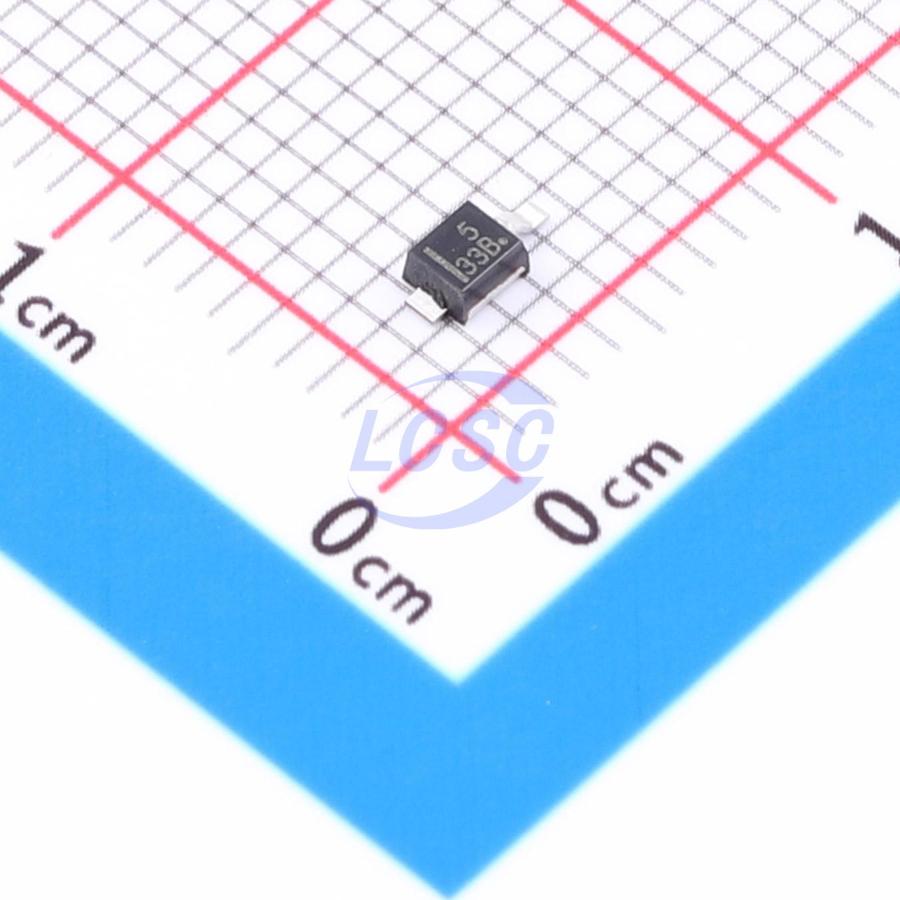

Zener Diode 22V 500mW Surface Mount DO-216AA-2
DIODE ZENER 22V 500mW DO-216AA-2
- Manufacturer
- onsemi
- Manufacturer part #
- 1PMT5933BT1G
- Store part #
- C890106
- Package / case
- DO-216AA-2
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C890106
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹212.96 | ₹212.96 |
| 10+ | ₹177.00 | ₹1,770.00 |
| 30+ | ₹157.19 | ₹4,715.70 |
| 100+ | ₹134.80 | ₹13,480.00 |
| 500+ | ₹124.89 | ₹62,445.00 |
| 1,000+ | ₹120.37 | ₹1,20,370.00 |
1 × ₹212.96
₹212.96
excl. GST
₹251.29 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
1PMT5933BT1G
₹212.96 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 1uA
- Impedance(Zzt)
- 17.5Ω
- Zener Voltage(Range)
- 20.9V~23.1V
- Zener Voltage(Nom)
- 22V
- Impedance(Zzk)
- 650Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.283 g
Overview
This complete new line of 3.2 Watt Zener Diodes are offered in highly efficient micro miniature, space saving surface mount with its unique heat sink design. The POWERMITE package has the same thermal performance as the SMA while being 50% smaller in footprint area and delivering one of the lowest height profiles (1.1mm) in the industry. Because of its small size, it is ideal for use in cellular phones, portable devices, business machines and many other industrial/consumer applications.
Applications
- cellular phones
- portable devices
- business machines
- industrial/consumer applications
Key features
- Zener Breakdown Voltage: 6.2 - 47V
- DC Power Dissipation: 3.2W with Tab 1 (Cathode) @ 75℃
- Low Leakage < 5μA
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Low Profile - Maximum Height of 1.1mm
- Integral Heat Sink/Locking Tabs
- Full Metallic Bottom Eliminates Flux Entrapment
- Small Footprint - Footprint Area of 8.45mm²
- Supplied in 12mm Tape and Reel
- Lead Orientation in Tape: Cathode (Short) Lead to Sprocket Holes
- POWERMITE is JEDEC Registered as DO-216AA
- Cathode Indicated by Polarity Band
- These Devices are Pb-Free and are RoHS Compliant
