onsemiDatasheet (PDF)

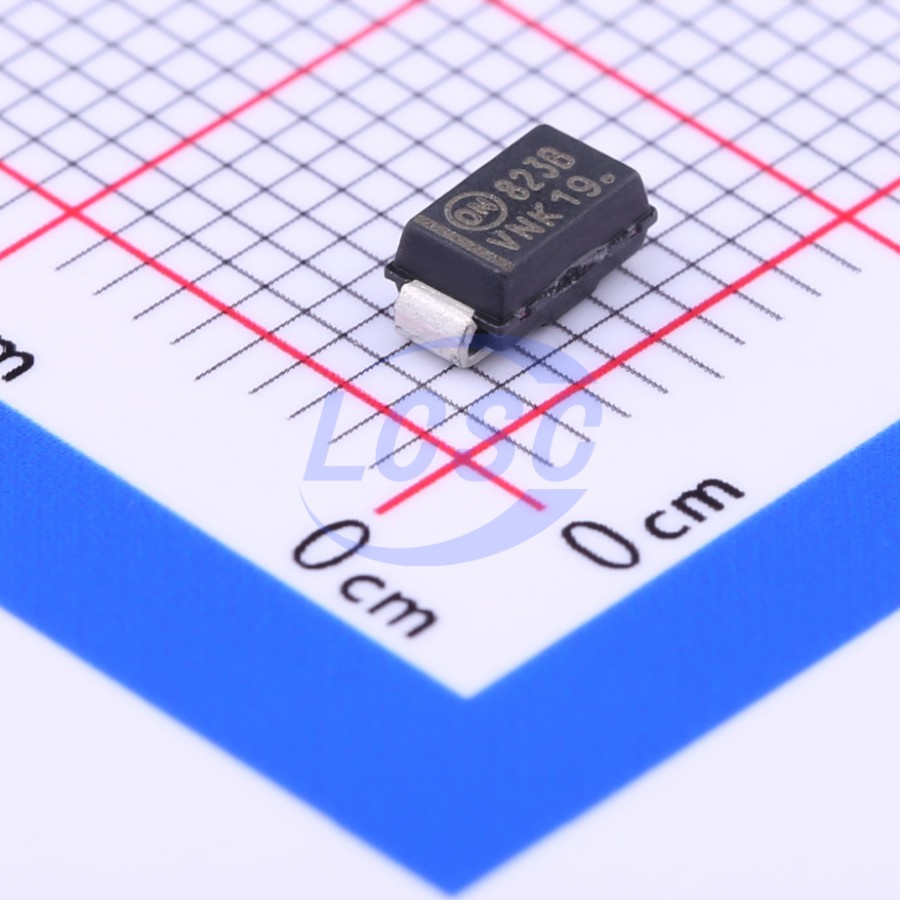

1SMA5923BT3G
Zener Diode Independent 8.2V 0.5W Surface Mount SMA
SMAROHS3 CompliantActive
DIODE ZENER 8.2V 0.5W SMA
- Manufacturer
- onsemi
- Manufacturer part #
- 1SMA5923BT3G
- Store part #
- C231286
- Package / case
- SMA
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,665 in stock
#C231286
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.53 | ₹162.65 |
| 50+ | ₹24.54 | ₹1,227.00 |
| 150+ | ₹21.12 | ₹3,168.00 |
| 500+ | ₹16.84 | ₹8,420.00 |
| 2,500+ | ₹13.32 | ₹33,300.00 |
| 5,000+ | ₹12.17 | ₹60,850.00 |
5 × ₹32.53
₹162.65
excl. GST
₹191.93 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1SMA5923BT3G
₹162.65 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 500nA
- Impedance(Zzt)
- 3.5Ω
- Zener Voltage(Range)
- 7.79V~8.61V
- Zener Voltage(Nom)
- 8.2V
- Impedance(Zzk)
- 400Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.125 g
Overview
Key features
- Standard Zener Breakdown Voltage Range - 3.3V to 68 V
- ESD Rating of Class 3 (>16kV) per Human Body Model
- Flat Handling Surface for Accurate Placement
- Package Design for Top Slide or Bottom Circuit Board Mounting
- Low Profile Package
- Ideal Replacement for MELF Packages
- AEC - Q101 Qualified and PPAP Capable - SZ1SMA59xxBT3G
- SZ Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements
- These are Pb - Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMA5923B#C3010096LGE · DO-214AC(SMA) | LGE | DO-214AC(SMA) | 1,245 | ₹10.24 · 1,245 in stock | View |
 | 1SMA4738A#C41399448GOODWORK · SMA | GOODWORK | SMA | 1,520 | ₹4.01 · 1,520 in stock | View |
 | 1SMA4738A#C5353093FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 8,220 | ₹5.27 · 8,220 in stock | View |
 | SMAZ8V2-MS#C22459345MSKSEMI · SMA | MSKSEMI | SMA | 1,900 | ₹11.36 · 1,900 in stock | View |
 | SMAZ8V2#C3015313EIC · DO-214AC(SMA) | EIC | DO-214AC(SMA) | 2,674 | ₹11.34 · 2,674 in stock | View |
