onsemiDatasheet (PDF)

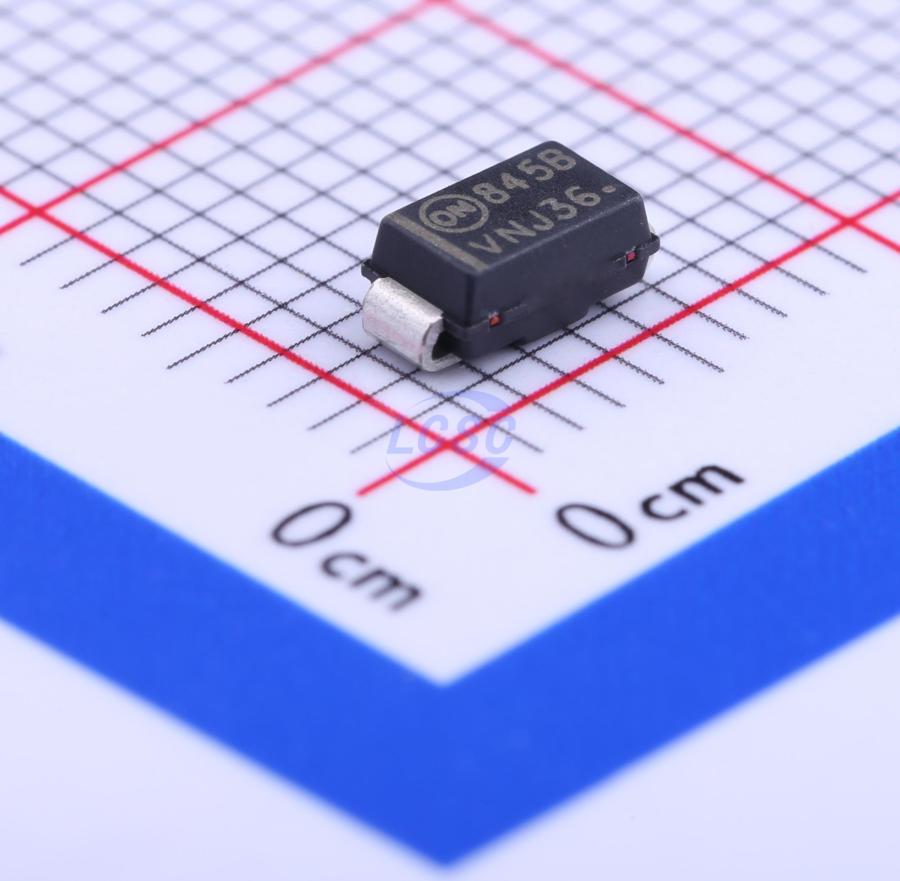

1SMA5945BT3G
Zener Diode Independent 68V 0.5W Surface Mount SMA
SMAROHS3 CompliantActive
DIODE ZENER 68V 0.5W SMA
- Manufacturer
- onsemi
- Manufacturer part #
- 1SMA5945BT3G
- Store part #
- C33753
- Package / case
- SMA
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
105 in stock
#C33753
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.60 | ₹68.00 |
| 50+ | ₹13.31 | ₹665.50 |
| 150+ | ₹13.11 | ₹1,966.50 |
| 500+ | ₹12.91 | ₹6,455.00 |
5 × ₹13.60
₹68.00
excl. GST
₹80.24 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
1SMA5945BT3G
₹68.00 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 500nA@51.7V
- Impedance(Zzt)
- 120Ω
- Zener Voltage(Range)
- 64.6V~71.4V
- Zener Voltage(Nom)
- 68V
- Impedance(Zzk)
- 1.7kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.124 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SZ1SMA5945BT3G#C896082onsemi · SMA | onsemi | SMA | 2 | ₹41.99 · 2 in stock | View |
 | CMZ5945B TR13 PBFREE#C5240502Central · SMA | Central | SMA | 3,195 | ₹39.88 · 3,195 in stock | View |
 | SMA5945A#C5161067ZHIDE · SMA | ZHIDE | SMA | 295 | ₹11.14 · 295 in stock | View |
 | 1SMA4760A#C47089152GOODWORK · SMA | GOODWORK | SMA | 1,880 | ₹4.51 · 1,880 in stock | View |
 | 1SMA4760A#C5353113FOSAN · SMA(DO-214AC) | FOSAN | SMA(DO-214AC) | 9,460 | ₹4.63 · 9,460 in stock | View |
