onsemiDatasheet (PDF)

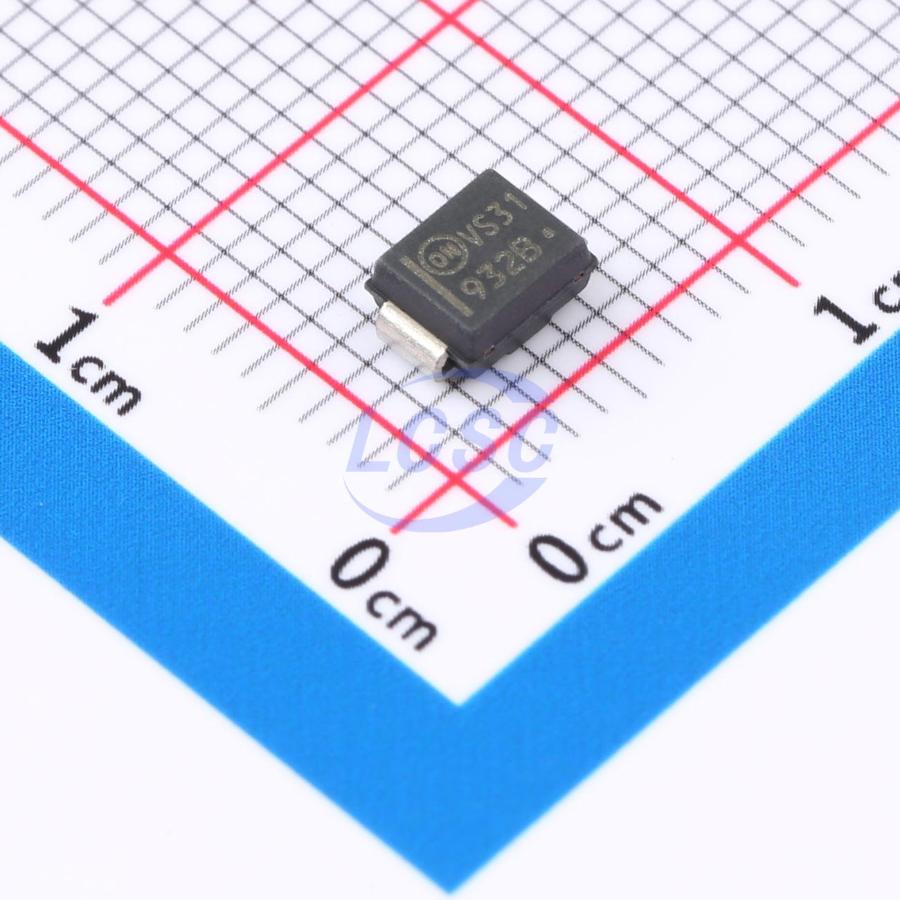

1SMB5932BT3G
Zener Diode Independent 20V 0.55W Surface Mount SMB
SMBROHS3 CompliantActive
DIODE ZENER 20V 0.55W SMB
- Manufacturer
- onsemi
- Manufacturer part #
- 1SMB5932BT3G
- Store part #
- C236172
- Package / case
- SMB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
490 in stock
#C236172
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.17 | ₹135.85 |
| 50+ | ₹21.54 | ₹1,077.00 |
| 150+ | ₹19.12 | ₹2,868.00 |
| 500+ | ₹16.10 | ₹8,050.00 |
| 2,500+ | ₹12.85 | ₹32,125.00 |
| 5,000+ | ₹12.04 | ₹60,200.00 |
5 × ₹27.17
₹135.85
excl. GST
₹160.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
1SMB5932BT3G
₹135.85 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 1uA@15.2V
- Impedance(Zzt)
- 14Ω
- Zener Voltage(Range)
- 19V~21V
- Zener Voltage(Nom)
- 20V
- Impedance(Zzk)
- 650Ω
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.136 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMB5932B-13#C5244673DIODES · SMB | DIODES | SMB | 45 | ₹22.50 · 45 in stock | View |
| SZ1SMB5932BT3G#C889930onsemi · SMB | onsemi | SMB | 152 | ₹75.89 · 152 in stock | View | |
 | 1SMB5932B#C46956729OTW · SMB | OTW | SMB | 750 | ₹4.84 · 750 in stock | View |
 | 3SMB5932B#C2983225LGE · SMB | LGE | SMB | 2,725 | ₹33.34 · 2,725 in stock | View |
 | TP1SMB5932BT3G#C49452366TECH PUBLIC · SMB | TECH PUBLIC | SMB | 500 | ₹14.90 · 500 in stock | View |
