onsemiDatasheet (PDF)

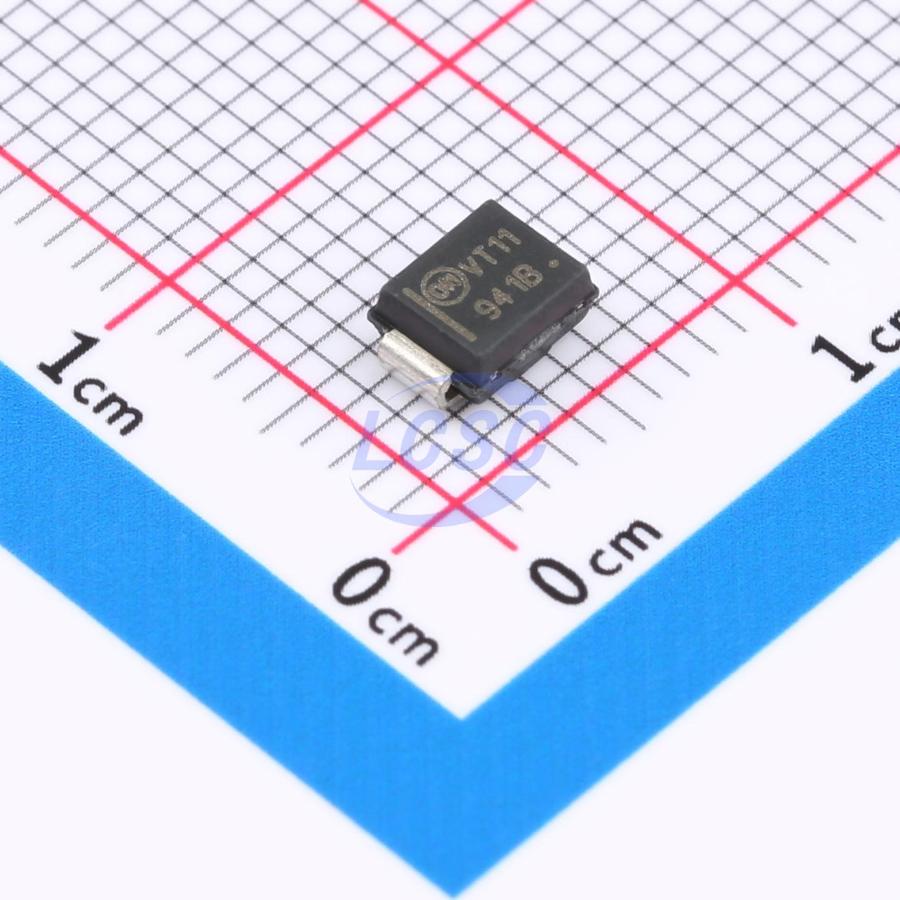

1SMB5941BT3G
Zener Diode Independent 47V 550mW Surface Mount SMB
SMBROHS3 CompliantActive
DIODE ZENER 47V 550mW SMB
- Manufacturer
- onsemi
- Manufacturer part #
- 1SMB5941BT3G
- Store part #
- C140695
- Package / case
- SMB
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
835 in stock
#C140695
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.12 | ₹185.60 |
| 50+ | ₹31.02 | ₹1,551.00 |
| 150+ | ₹28.40 | ₹4,260.00 |
| 500+ | ₹25.15 | ₹12,575.00 |
| 2,500+ | ₹22.68 | ₹56,700.00 |
| 5,000+ | ₹21.80 | ₹1,09,000.00 |
5 × ₹37.12
₹185.60
excl. GST
₹219.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
1SMB5941BT3G
₹185.60 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Pd - Power Dissipation
- 550mW
- Reverse Leakage Current (Ir)
- 1uA
- Impedance(Zzt)
- 67Ω
- Zener Voltage(Range)
- 44.65V~49.35V
- Zener Voltage(Nom)
- 47V
- Impedance(Zzk)
- 1kΩ
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.213 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 1SMB5941BT3G-MS#C18547795MSKSEMI · SMB | MSKSEMI | SMB | 1,750 | ₹16.55 · 1,750 in stock | View |
 | 1SMB5941B-13#C6396180DIODES · SMB | DIODES | SMB | 100 | ₹42.96 · 100 in stock | View |
| SZ1SMB5941BT3G#C889939onsemi · SMB | onsemi | SMB | 45 | ₹179.05 · 45 in stock | View | |
 | TP1SMB5941BT3G#C49452375TECH PUBLIC · SMB | TECH PUBLIC | SMB | 2,940 | ₹14.90 · 2,940 in stock | View |
 | 3SMB5941B#C2983226LGE · SMB(DO-214AA) | LGE | SMB(DO-214AA) | 2,405 | ₹24.26 · 2,405 in stock | View |
