VBsemi ElecDatasheet (PDF)

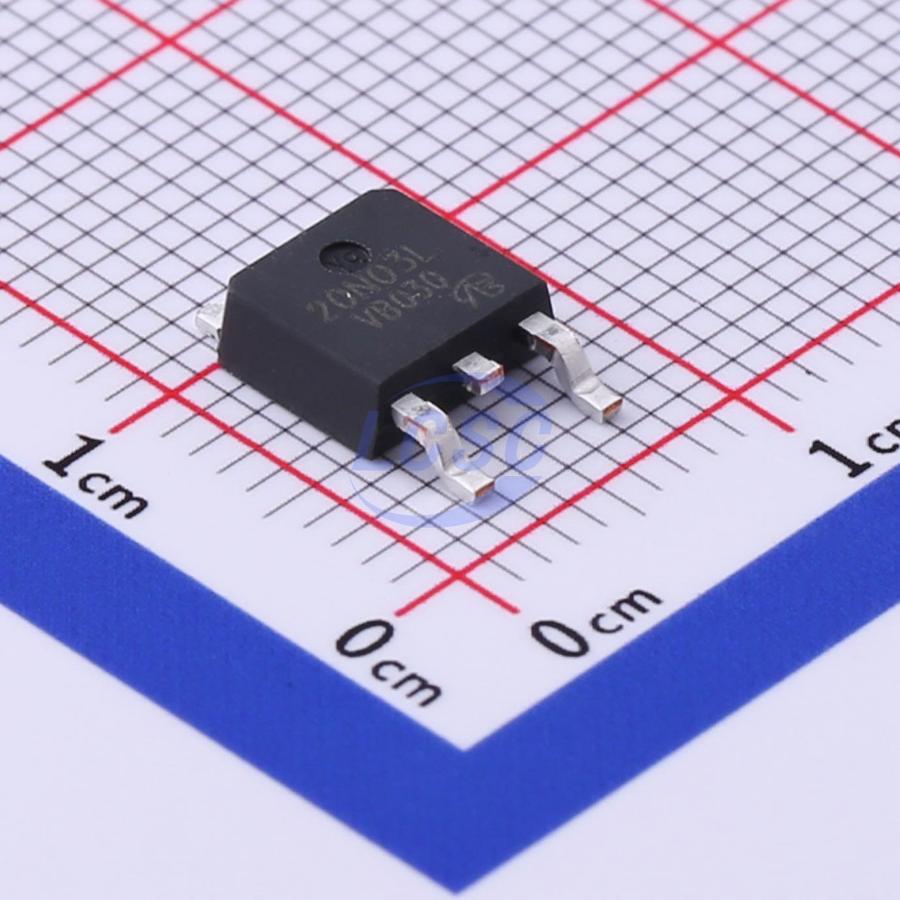

20N03L TO252-VB
N-Channel 30V 70A 3.25W Surface Mount TO-252
TO-252RoHSActive
MOSFET N-CH 30V 70A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 20N03L TO252-VB
- Store part #
- C724940
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18 in stock
#C724940
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹58.03 | ₹58.03 |
| 10+ | ₹46.73 | ₹467.30 |
| 30+ | ₹41.94 | ₹1,258.20 |
| 100+ | ₹35.87 | ₹3,587.00 |
| 500+ | ₹27.82 | ₹13,910.00 |
| 1,000+ | ₹26.08 | ₹26,080.00 |
1 × ₹58.03
₹58.03
excl. GST
₹68.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
20N03L TO252-VB
₹58.03 for 1 + GST
Specifications
- Drain to Source Voltage
- 30V
- Current - Continuous Drain(Id)
- 70A
- Ciss-Input Capacitance
- 2.201nF
- Pd - Power Dissipation
- 3.25W
- Reverse Transfer Capacitance (Crss)
- 370pF
- RDS(on)
- 7mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 35nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.384 g
Overview
Applications
- OR Gate - Server - DC-DC Conversion
Key features
- Trench power MOSFET
- 100% gate resistance (Rg) and unclamped inductive switching (UIS) tested
- Compliant with EU RoHS Directive 2011/65/EU
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | STD40NF03LT4-VB#C2680886VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 29 | ₹52.10 · 29 in stock | View |
 | FDD6680AS-VB#C5137451VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 20 | ₹53.99 · 20 in stock | View |
 | NTD20N03L27T4G-VB#C5179586VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 31 | ₹53.36 · 31 in stock | View |
 | STD27N3LH5-VB#C725205VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 56 | ₹52.79 · 56 in stock | View |
 | 15N03-VB#C5137423VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 6 | ₹53.99 · 6 in stock | View |
