TE ConnectivityDatasheet (PDF)
280610-1
3.96mm Through Hole 3A Tin 4P -65℃~+105℃ Green 4 1x4P 1 Through Hole Headers, Male Pins RoHS
Through HoleROHS CompliantActive

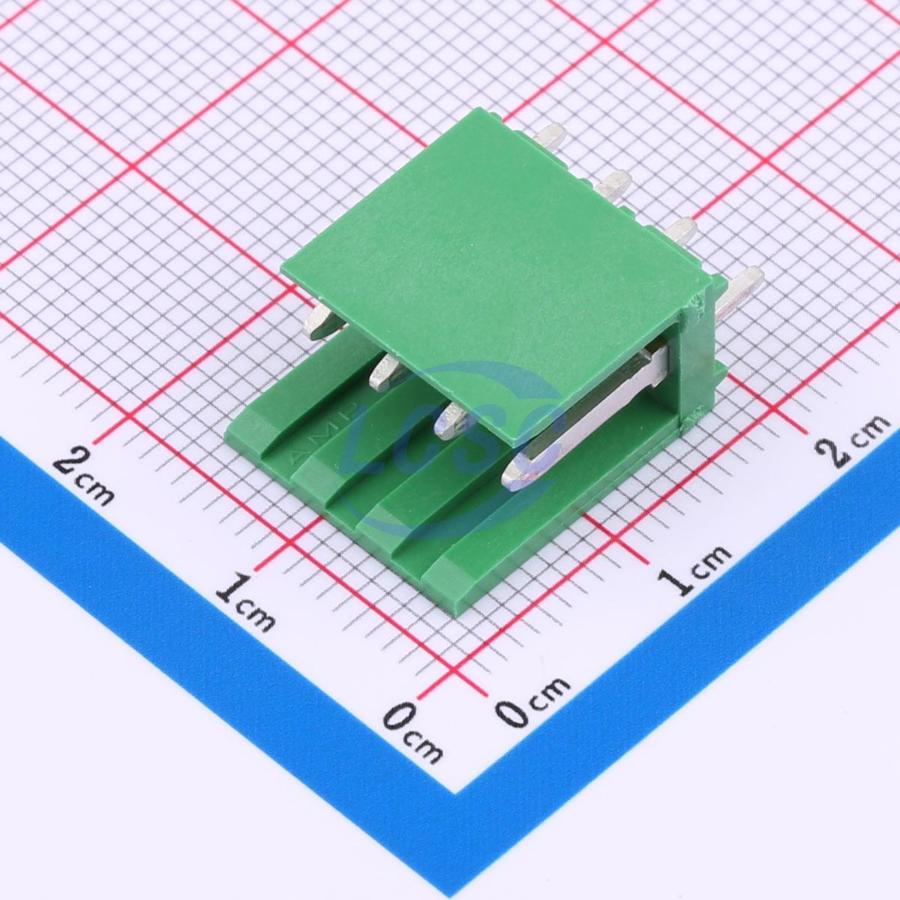

PCB Mount Header, Vertical, Board-to-Board, Partially Shrouded, Through Hole - Solder
- Manufacturer
- TE Connectivity
- Manufacturer part #
- 280610-1
- Store part #
- C596168
- Package / case
- Through Hole
- Category
- Headers, Male Pins
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
53 in stock
#C596168
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.53 | ₹94.53 |
| 10+ | ₹92.15 | ₹921.50 |
| 30+ | ₹90.63 | ₹2,718.90 |
| 100+ | ₹89.10 | ₹8,910.00 |
1 × ₹94.53
₹94.53
excl. GST
₹111.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per bag
280610-1
₹94.53 for 1 + GST
Specifications
- Pitch
- 3.96mm
- Connector Type
- Through Hole
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 3A
- Contact Plating
- Tin
- Number of PINs
- 4P
- Operating Temperature
- -65℃~+105℃
- Contact Material
- Brass
- Color
- Green
- Number of PINs Per Row
- 4
- Pin Structure
- 1x4P
- Number of Rows
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 500 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.437 g
Overview
Key features
- PCB mount plug, vertical orientation, board-to-board connection, 4-pin, 3.96mm [0.156 in] centerline spacing, partially shrouded, tin-plated, through-hole solder, AMPMODU MOD 1
- TE-identified part number compliant with EU RoHS; maximum concentration by weight in homogeneous materials: 0.1% for lead, hexavalent chromium, mercury, PBB, PBDE, DBP, BBP, DEHP, and DIBP; 0.01% for cadmium; or compliant with exemptions specified in the Annex of Directive 2011/65/EU (RoHS2).
- TE-identified part number compliant with EU ELV; maximum concentration by weight in homogeneous materials: 0.1% for lead, hexavalent chromium, and mercury; 0.01% for cadmium; or compliant with exemptions specified in the Annex of Directive 2000/53/EC (ELV).
- Compatible part: PCB mount plug, vertical orientation, board-to-board connection, 4-pin, 3.96mm [0.156 in] centerline spacing, partially shrouded, tin-plated, through-hole solder, AMPMODU MOD 1
