TE ConnectivityDatasheet (PDF)
281839-4

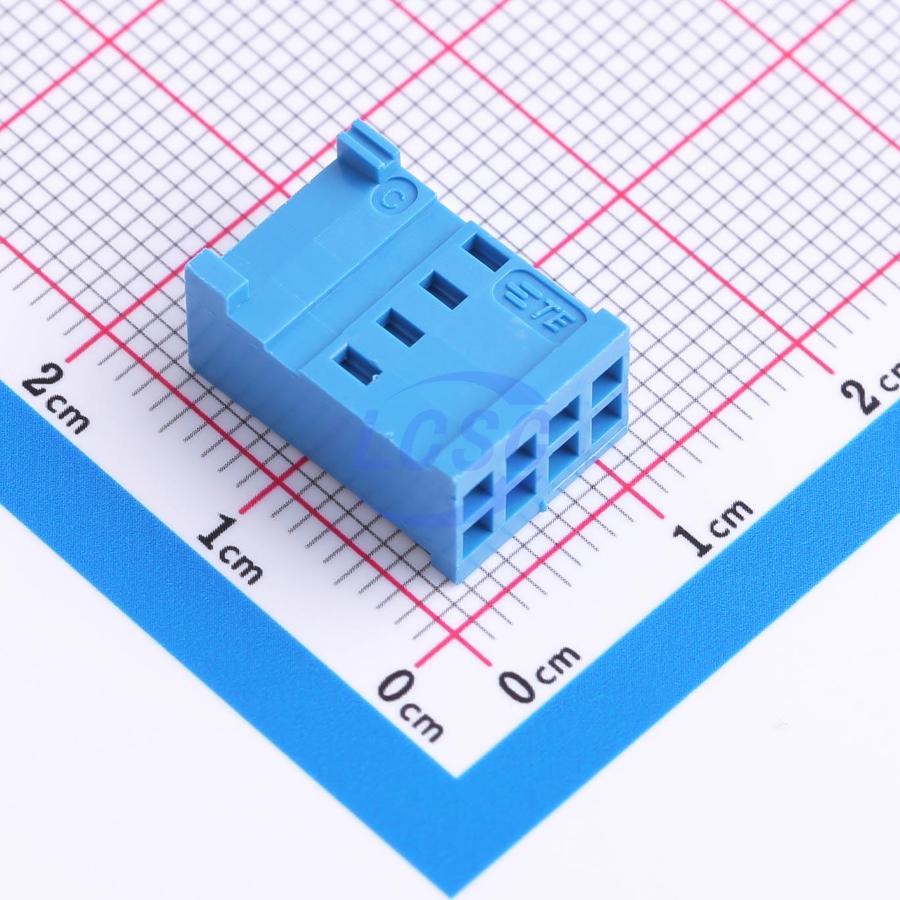

Connector Housing 2.54mm Pitch Glass-Fiber Reinforced PBT -55℃~+125℃
P=2.54mmROHS CompliantActive
Housing, Receptacle, Wire-to-Board, 8 Position, 2.54 mm Centerline, Insulation Displacement (IDC), 2 Row, Blue
- Manufacturer
- TE Connectivity
- Manufacturer part #
- 281839-4
- Store part #
- C590612
- Package / case
- P=2.54mm
- Category
- Rectangular Connector Housings
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
117 in stock
#C590612
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹96.54 | ₹96.54 |
| 10+ | ₹78.72 | ₹787.20 |
| 30+ | ₹70.01 | ₹2,100.30 |
| 100+ | ₹61.11 | ₹6,111.00 |
| 500+ | ₹55.88 | ₹27,940.00 |
| 1,000+ | ₹53.05 | ₹53,050.00 |
1 × ₹96.54
₹96.54
excl. GST
₹113.92 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
281839-4
₹96.54 for 1 + GST
Specifications
- Pitch
- 2.54mm
- Flame Retardant Rating
- UL94V-0
- Number of Rows
- 2
- With Wings
- Without Fins
- Operating Temperature
- -55℃~+125℃
- Holes Structure
- 2x4P
- Number of PINs Per Row
- 4
- Plastic Material
- Glass-Fiber Reinforced PBT
- Color
- Blue
- With Locker
- Non-Latching
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | A2549HB-2x4P#C339493CJT(Changjiang Connectors) · P=2.54mm | CJT(Changjiang Connectors) | P=2.54mm | 1,000 | ₹37.14 · 1,000 in stock | View |
