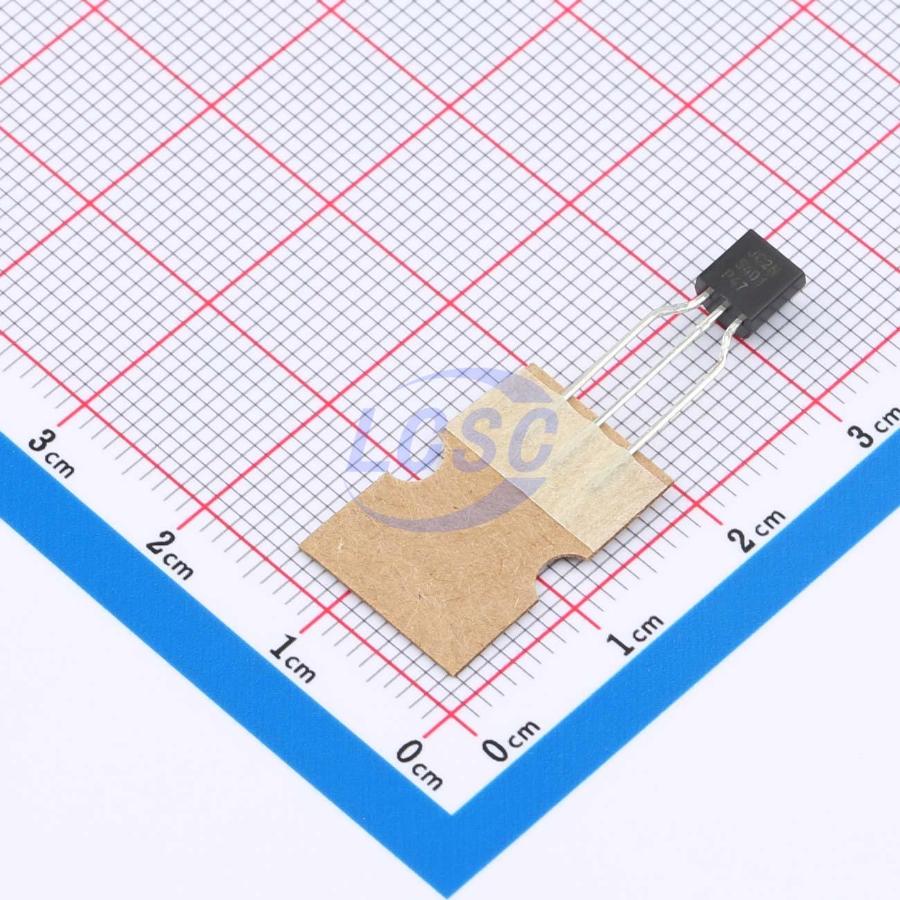

2N5401YTA
Bipolar (BJT) Transistor PNP 150V 600mA 625mW Through Hole TO-92-3L
TO-92-3LROHS3 CompliantActive
TRANS PNP 150V 600mA TO-92-3L
- Manufacturer
- onsemi
- Manufacturer part #
- 2N5401YTA
- Store part #
- C900709
- Package / case
- TO-92-3L
- Category
- Single Bipolar Transistors
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
540 in stock
#C900709
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.31 | ₹76.55 |
| 50+ | ₹12.28 | ₹614.00 |
| 150+ | ₹10.77 | ₹1,615.50 |
| 500+ | ₹9.64 | ₹4,820.00 |
| 2,000+ | ₹8.73 | ₹17,460.00 |
| 4,000+ | ₹8.28 | ₹33,120.00 |
5 × ₹15.31
₹76.55
excl. GST
₹90.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per box
2N5401YTA
₹76.55 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 50uA
- Transition frequency(fT)
- 400MHz
- Collector - Emitter Voltage VCEO
- 150V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 120
- Pd - Power Dissipation
- 625mW
- Current - Collector(Ic)
- 600mA
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 2,000 / Box
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.32 g
Overview
Key features
- Collector-Emitter Voltage: VCEO = 150V
- Collector Dissipation: PC(max) = 625mW
- Suffix “-C” means Conter Collector (1. Emitter 2. Collector 3. Base)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2N5401YBU#C896648onsemi · TO-92-3L | onsemi | TO-92-3L | 12,445 | ₹13.80 · 12,445 in stock | View |
 | 2N5401-TA(RANGE:150-200)#C2082JSCJ · TO-92 | JSCJ | TO-92 | 2,620 | ₹4.95 · 2,620 in stock | View |
 | 2N5401#C2874604JSMSEMI · TO-92 | JSMSEMI | TO-92 | 950 | ₹2.17 · 950 in stock | View |
 | 2N5401(RANGE:100-150)#C60406JSCJ · TO-92 | JSCJ | TO-92 | 200 | ₹3.92 · 200 in stock | View |
