JSMSEMIDatasheet (PDF)

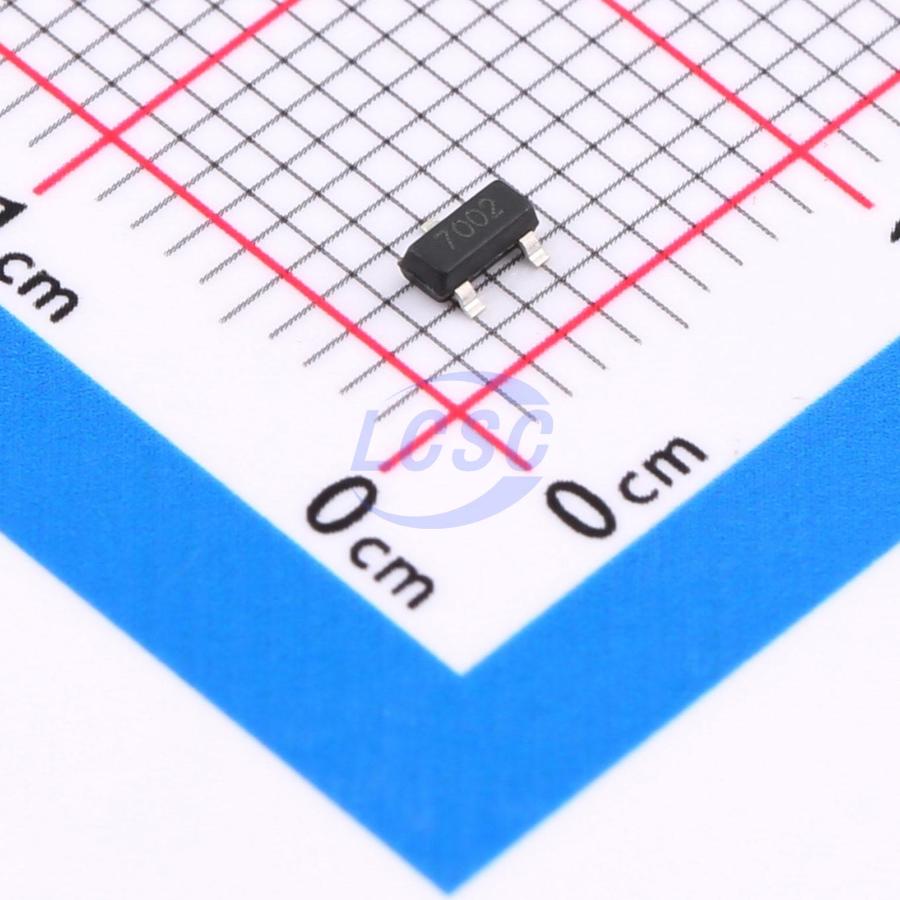

2N7002
N-Channel 60V 115mA 200mW Surface Mount SOT-23
PopularSOT-23ROHS CompliantActive
MOSFET N-CH 60V 115mA SOT-23
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 2N7002
- Store part #
- C916396
- Package / case
- SOT-23
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
14,82,800 in stock
#C916396
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.48 | ₹74.00 |
| 500+ | ₹1.14 | ₹570.00 |
| 3,000+ | ₹0.9393 | ₹2,817.90 |
| 6,000+ | ₹0.8467 | ₹5,080.20 |
| 24,000+ | ₹0.7673 | ₹18,415.20 |
50 × ₹1.48
₹74.00
excl. GST
₹87.32 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2N7002
₹74.00 for 50 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 60V
- Current - Continuous Drain(Id)
- 115mA
- Ciss-Input Capacitance
- 50pF
- Pd - Power Dissipation
- 200mW
- Reverse Transfer Capacitance (Crss)
- 5pF
- RDS(on)
- 1.7Ω@5V
- Number
- 1 N-channel
- Gate Threshold Voltage (Vgs(th))
- 2.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.032 g
Overview
Applications
- For general switching and phase circuits
Key features
- Sensitive gate triggering
- Low holding current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BSS123-JSM#C22470439JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 2,680 | ₹2.75 · 2,680 in stock | View |
 | 2N7002K#C916397JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 1,65,400 | ₹1.97 · 1,65,400 in stock | View |
 | JSM3N150G#C42449134JSMSEMI · SOT-23-3L | JSMSEMI | SOT-23-3L | 2,765 | ₹26.72 · 2,765 in stock | View |
 | AO3442-JSM#C18190315JSMSEMI · SOT-23L | JSMSEMI | SOT-23L | 2,110 | ₹8.93 · 2,110 in stock | View |
 | FDN8601-JSM#C18194233JSMSEMI · SOT-23-3L | JSMSEMI | SOT-23-3L | 2,675 | ₹15.47 · 2,675 in stock | View |
