JSMSEMI

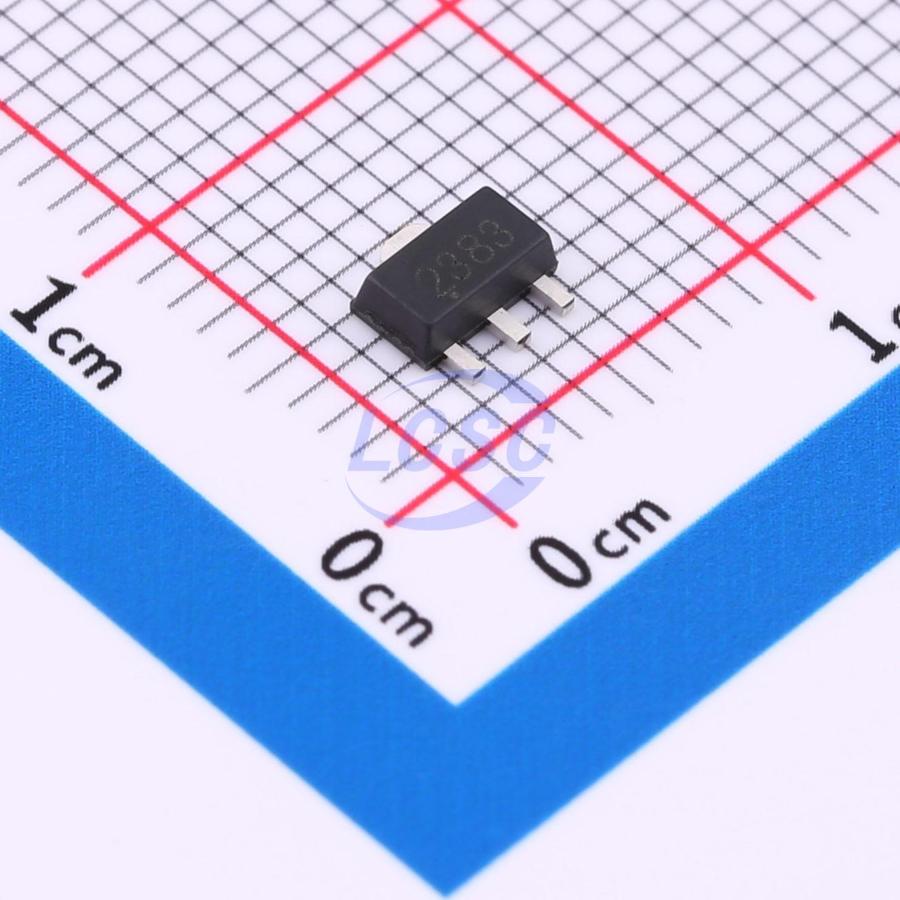

2SC2383-JSM

Bipolar (BJT) Transistor NPN 160V 1A 20MHz 0.5W Surface Mount SOT-89

SOT-89ROHS CompliantActive

TRANS NPN 160V 1A SOT-89

Manufacturer: JSMSEMI
Manufacturer part #: 2SC2383-JSM
Store part #: C30587315
Package / case: SOT-89
Category: Single Bipolar Transistors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,000 in stock

#C30587315

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹8.44	₹84.40
100+	₹6.76	₹676.00
300+	₹5.93	₹1,779.00
1,000+	₹5.29	₹5,290.00
5,000+	₹4.79	₹23,950.00
10,000+	₹4.54	₹45,400.00

Quantity (min 10, multiples of 10)

10 × ₹8.44

₹84.40

excl. GST

₹99.59 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 1,000 per reel

2SC2383-JSM

₹84.40 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Current - Collector Cutoff: 1uA
Transition frequency(fT): 20MHz
Collector - Emitter Voltage VCEO: 160V
Emitter-Base Voltage VEBO: 6V
DC Current Gain: 320
Pd - Power Dissipation: 500mW
Current - Collector(Ic): 1A
Configuration: Standalone
Number: 1 NPN
type: NPN
Vce Saturation(VCE(sat)): 1V

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 1,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.047 g

Overview

Key features

High voltage: VcEo = 160V
Large continuous collector current capability
Pb-Free Package May be Available. The G-Suffix Denotes a Pb-Free Lead Finish
