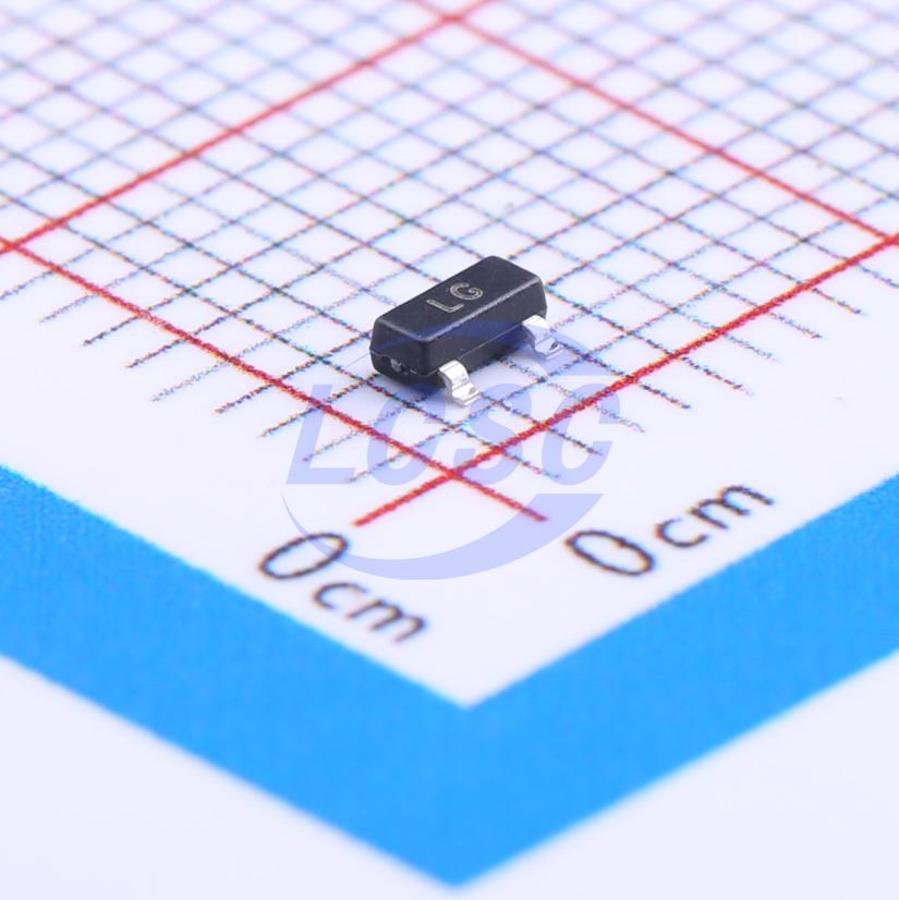

2SC2712(RANGE:200-400)
Bipolar (BJT) Transistor NPN 50V 150mA 80MHz 150mW Surface Mount SOT-23
SOT-23ROHS CompliantActive
TRANS NPN 50V 150mA SOT-23
- Manufacturer
- JSCJ
- Manufacturer part #
- 2SC2712(RANGE:200-400)
- Store part #
- C112427
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
750 in stock
#C112427
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.46 | ₹123.00 |
| 500+ | ₹1.92 | ₹960.00 |
| 3,000+ | ₹1.61 | ₹4,830.00 |
| 6,000+ | ₹1.44 | ₹8,640.00 |
| 24,000+ | ₹1.28 | ₹30,720.00 |
| 51,000+ | ₹1.20 | ₹61,200.00 |
50 × ₹2.46
₹123.00
excl. GST
₹145.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2SC2712(RANGE:200-400)
₹123.00 for 50 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 80MHz
- Collector - Emitter Voltage VCEO
- 50V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 200
- Current - Collector(Ic)
- 150mA
- Pd - Power Dissipation
- 150mW
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 250mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.036 g
Overview
Key features
- Audio Frequency General Purpose Amplifier Applications
- Low Noise: NF = 1 dB (Typ), 10dB(MAX)
- Complementary to 2SA1162
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | C1815(RANGE:200-400)#C8533JSCJ · SOT-23 | JSCJ | SOT-23 | 33,000 | ₹2.28 · 33,000 in stock | View |
 | C945(RANGE:200-400)#C8535JSCJ · SOT-23 | JSCJ | SOT-23 | 4,700 | ₹2.22 · 4,700 in stock | View |
 | FMMT619#C53071JSCJ · SOT-23 | JSCJ | SOT-23 | 36,860 | ₹7.24 · 36,860 in stock | View |
 | MMBT1616A(RANGE:200-400)#C62673JSCJ · SOT-23 | JSCJ | SOT-23 | 9,830 | ₹6.24 · 9,830 in stock | View |
 | MMBTA44#C45278315JSCJ · SOT-23 | JSCJ | SOT-23 | 3,030 | ₹8.96 · 3,030 in stock | View |
