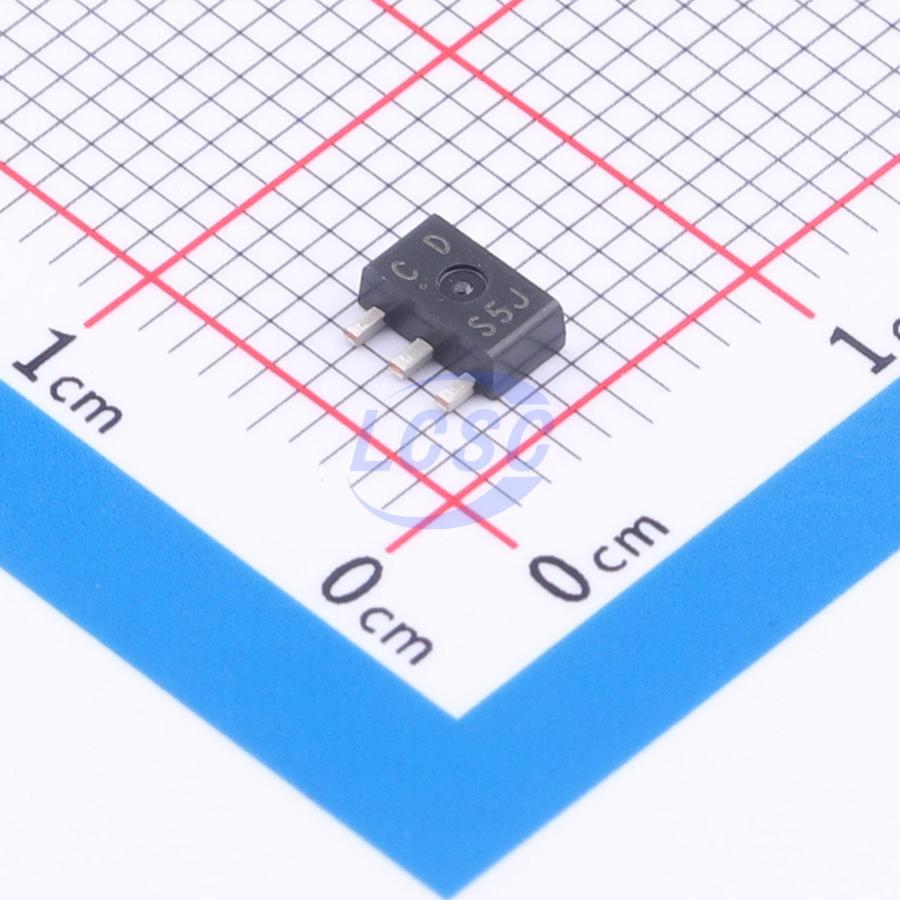

2SC3648S-TD-E
Bipolar (BJT) Transistor NPN 160V 0.7A 120MHz 1.3W Surface Mount SOT-89
SOT-89ROHS3 CompliantActive
TRANS NPN 160V 0.7A SOT-89
- Manufacturer
- onsemi
- Manufacturer part #
- 2SC3648S-TD-E
- Store part #
- C898927
- Package / case
- SOT-89
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90 in stock
#C898927
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹77.25 | ₹77.25 |
| 10+ | ₹75.29 | ₹752.90 |
| 30+ | ₹73.98 | ₹2,219.40 |
| 100+ | ₹72.69 | ₹7,269.00 |
1 × ₹77.25
₹77.25
excl. GST
₹91.16 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
2SC3648S-TD-E
₹77.25 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 120MHz
- Collector - Emitter Voltage VCEO
- 160V
- Emitter-Base Voltage VEBO
- 6V
- DC Current Gain
- 100
- Pd - Power Dissipation
- 1.3W
- Current - Collector(Ic)
- 700mA
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 400mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.125 g
Overview
Applications
- Color TV audio output, inverter
Key features
- Adoption of FBET, MBIT processes
- High breakdown voltage and large current capacity
- Fast switching speed
- Ultrasmall size making it easy to provide high-density, small-sized hybrid IC’s
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SC3648T-TD-E#C327472onsemi · SOT-89 | onsemi | SOT-89 | 962 | ₹65.63 · 962 in stock | View |
 | 2SC3649T-TD-E#C604959onsemi · TO-243AA | onsemi | TO-243AA | 150 | ₹139.22 · 150 in stock | View |
 | 2SC2383#C47435902GOODWORK · SOT-89 | GOODWORK | SOT-89 | 30 | ₹8.57 · 30 in stock | View |
| 2SC2383O#C49435678Huixin · SOT-89 | Huixin | SOT-89 | 1,000 | ₹15.81 · 1,000 in stock | View | |
 | 2SC2383-Y#C2988046YFW · SOT-89 | YFW | SOT-89 | 535 | ₹11.75 · 535 in stock | View |
