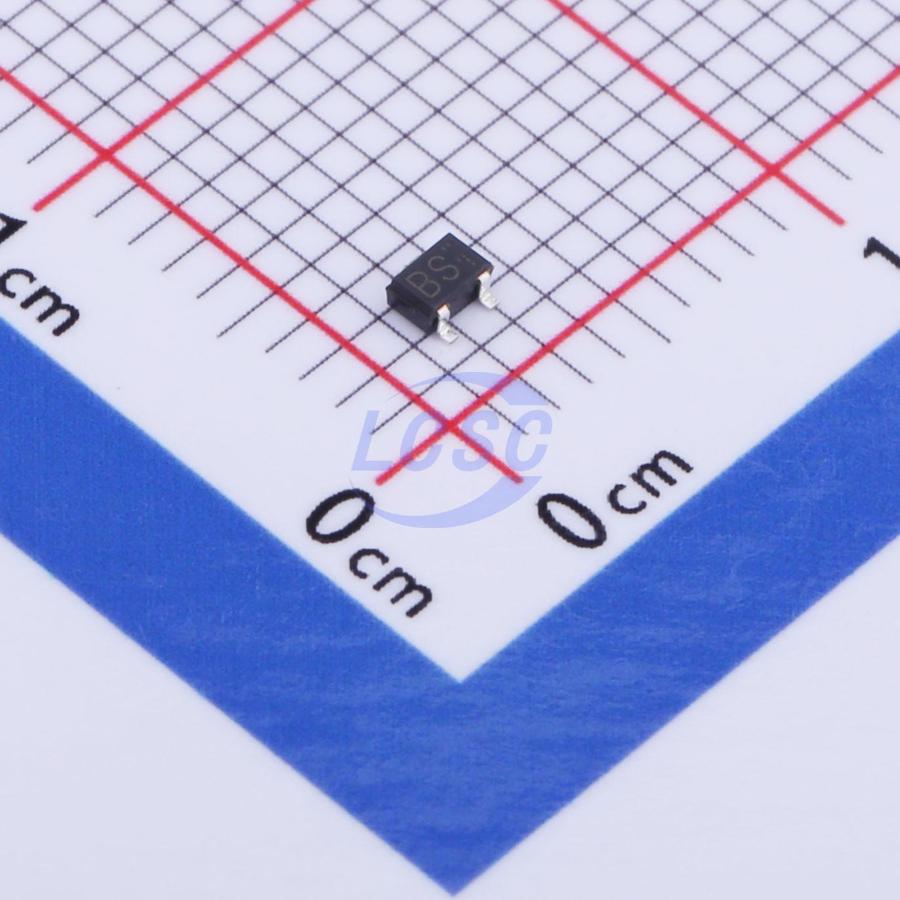

2SC4081T106S
Bipolar (BJT) Transistor NPN 50V 150mA 180MHz Surface Mount SC-70(SOT-323)
SC-70(SOT-323)ROHS3 CompliantActive
TRANS NPN 50V 150mA SC-70(SOT-323)
- Manufacturer
- ROHM
- Manufacturer part #
- 2SC4081T106S
- Store part #
- C509797
- Package / case
- SC-70(SOT-323)
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C509797
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.61 | ₹76.10 |
| 100+ | ₹6.09 | ₹609.00 |
| 300+ | ₹5.33 | ₹1,599.00 |
| 3,000+ | ₹4.76 | ₹14,280.00 |
| 6,000+ | ₹4.30 | ₹25,800.00 |
| 9,000+ | ₹4.07 | ₹36,630.00 |
10 × ₹7.61
₹76.10
excl. GST
₹89.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
2SC4081T106S
₹76.10 for 10 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 180MHz
- Collector - Emitter Voltage VCEO
- 50V
- Emitter-Base Voltage VEBO
- 7V
- DC Current Gain
- 120
- Pd - Power Dissipation
- 200mW
- Current - Collector(Ic)
- 150mA
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 400mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.026 g
Overview
General purpose small signal amplifier (50V, 150mA)
Applications
- GENERAL PURPOSE SMALL SIGNAL AMPLIFIER
Key features
- Low Cob. Cob = 2.0 pF(Typ.)
- Complements the 2SA2029/ 2SA1774EB/2SA1774/2SA1576UB/ 2SA1576U3/2SA1037AK.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 2SC4081T106R#C111700ROHM · SC-70(SOT-323) | ROHM | SC-70(SOT-323) | 1,65,300 | ₹5.87 · 1,65,300 in stock | View |
 | 2SC4081T106Q#C122983ROHM · SC-70(SOT-323) | ROHM | SC-70(SOT-323) | 190 | ₹6.80 · 190 in stock | View |
 | 2SC4081(RANGE:120-270)#C147852JSCJ · SOT-323 | JSCJ | SOT-323 | 320 | ₹3.60 · 320 in stock | View |
 | 2SC4081U3HZGT106Q#C509798ROHM · SC-70(SOT-323) | ROHM | SC-70(SOT-323) | 15,240 | ₹5.46 · 15,240 in stock | View |
 | 2SD1949T106R#C509805ROHM · SOT-323 | ROHM | SOT-323 | 1,500 | ₹17.99 · 1,500 in stock | View |
