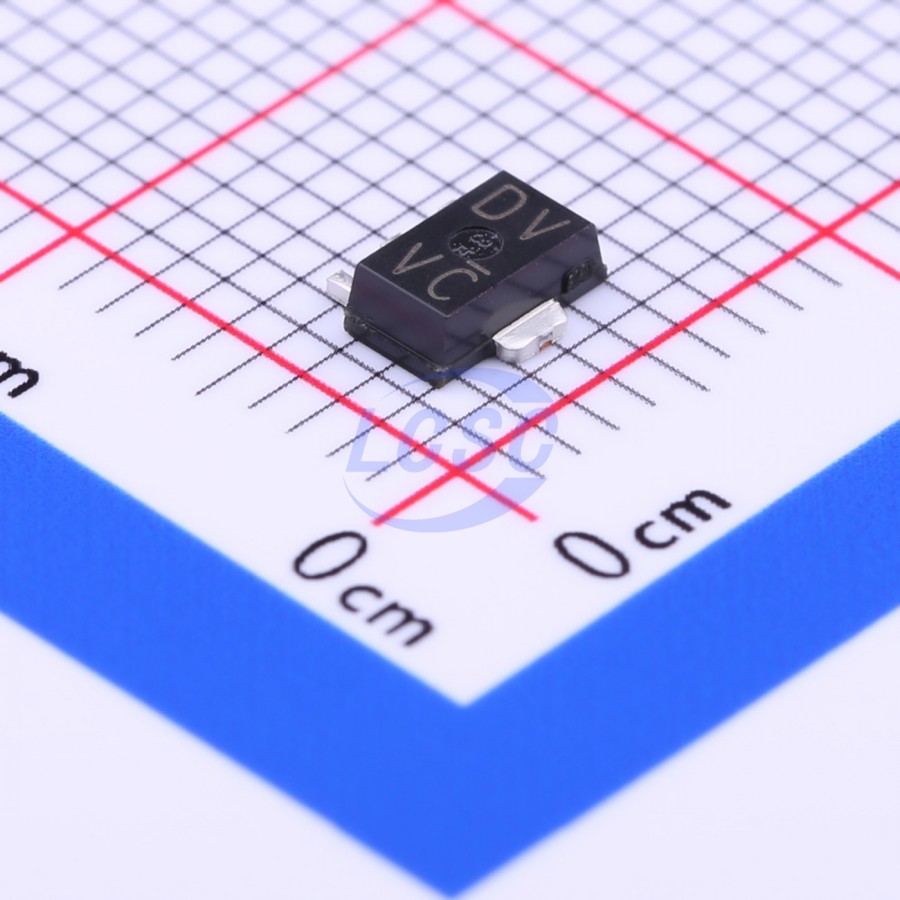

2SD2537T100V
Bipolar (BJT) Transistor NPN 25V 1.2A 200MHz 2W Surface Mount SOT-89
SOT-89ROHS3 CompliantActive
TRANS NPN 25V 1.2A SOT-89
- Manufacturer
- ROHM
- Manufacturer part #
- 2SD2537T100V
- Store part #
- C253170
- Package / case
- SOT-89
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
560 in stock
#C253170
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.28 | ₹221.40 |
| 50+ | ₹37.20 | ₹1,860.00 |
| 150+ | ₹34.17 | ₹5,125.50 |
| 1,000+ | ₹27.95 | ₹27,950.00 |
| 2,000+ | ₹26.27 | ₹52,540.00 |
| 5,000+ | ₹25.27 | ₹1,26,350.00 |
5 × ₹44.28
₹221.40
excl. GST
₹261.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
2SD2537T100V
₹221.40 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 300nA
- Transition frequency(fT)
- 200MHz
- Collector - Emitter Voltage VCEO
- 25V
- Emitter-Base Voltage VEBO
- 12V
- DC Current Gain
- 820
- Current - Collector(Ic)
- 1.2A
- Pd - Power Dissipation
- 2W
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 300mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.131 g
Overview
Applications
- LOW FREQUENCY AMPLIFIER
Key features
- Low saturation voltage, Max. VCE(sat)=300mV at IC/lB=500mA/10mA.
- High emitter-base voltage. (VEBO=12V)
- PD=2W (Mounted on a ceramic board (40×40×0.7mm)).
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 2SD2153T100V#C6667951ROHM · TO-243AA | ROHM | TO-243AA | 420 | ₹49.04 · 420 in stock | View | |
 | 2SC3650(RANGE:800-3200)#C2910292JSCJ · SOT-89-3L | JSCJ | SOT-89-3L | 2 | ₹27.21 · 2 in stock | View |
| 2SD2153T100U#C5887806ROHM · TO-243AA | ROHM | TO-243AA | On request | ₹41.87 · 0 in stock | View | |
