VBsemi ElecDatasheet (PDF)

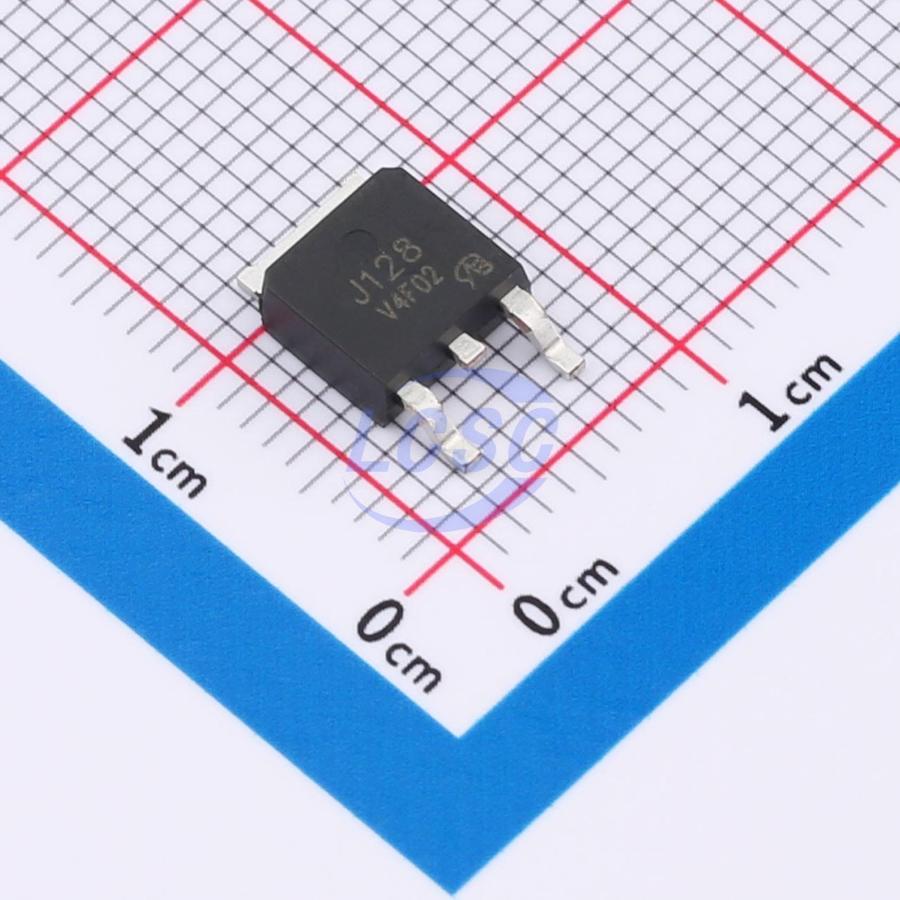

2SJ128-Z-VB
P-Channel 100V 8.8A 32.1W Surface Mount TO-252
TO-252RoHSActive
MOSFET P-CH 100V 8.8A TO-252
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SJ128-Z-VB
- Store part #
- C22389819
- Package / case
- TO-252
- Category
- Single FETs, MOSFETs
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C22389819
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹72.47 | ₹72.47 |
| 10+ | ₹56.93 | ₹569.30 |
| 30+ | ₹50.42 | ₹1,512.60 |
| 100+ | ₹42.02 | ₹4,202.00 |
| 500+ | ₹38.23 | ₹19,115.00 |
| 1,000+ | ₹36.13 | ₹36,130.00 |
1 × ₹72.47
₹72.47
excl. GST
₹85.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
2SJ128-Z-VB
₹72.47 for 1 + GST
Specifications
- Drain to Source Voltage
- 100V
- Operating Temperature
- -55℃~+150℃
- Current - Continuous Drain(Id)
- 8.8A
- Output Capacitance(Coss)
- 65pF
- Ciss-Input Capacitance
- 1.055nF
- Pd - Power Dissipation
- 32.1W
- Reverse Transfer Capacitance (Crss)
- 41pF
- RDS(on)
- 250mΩ@10V;280mΩ@4.5V
- Number
- 1 P-Channel
- Gate Charge(Qg)
- 23.2nC@10V
- Gate Threshold Voltage (Vgs(th))
- 2.5V
- Type
- P-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.495 g
Overview
Applications
- Power Switch - DC/DC Converter
Key features
- Halogen-free compliant per IEC 61249-2-21
- Trench power MOSFET
- 100% Rg and UIS tested
- RoHS compliant per directive 2002/95/EC
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SPD04P10PG-VB#C18212532VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 12 | ₹76.51 · 12 in stock | View |
 | SPD04P10PLG-VB#C18794974VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 6 | ₹82.73 · 6 in stock | View |
 | J637-TL-E-VB#C19188212VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 50 | ₹76.51 · 50 in stock | View |
 | IRFR9110PBF-VB#C19626840VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 15 | ₹72.47 · 15 in stock | View |
 | ZXMP10A16KTC-VB#C20417534VBsemi Elec · TO-252 | VBsemi Elec | TO-252 | 5 | ₹72.47 · 5 in stock | View |
