VBsemi ElecDatasheet (PDF)

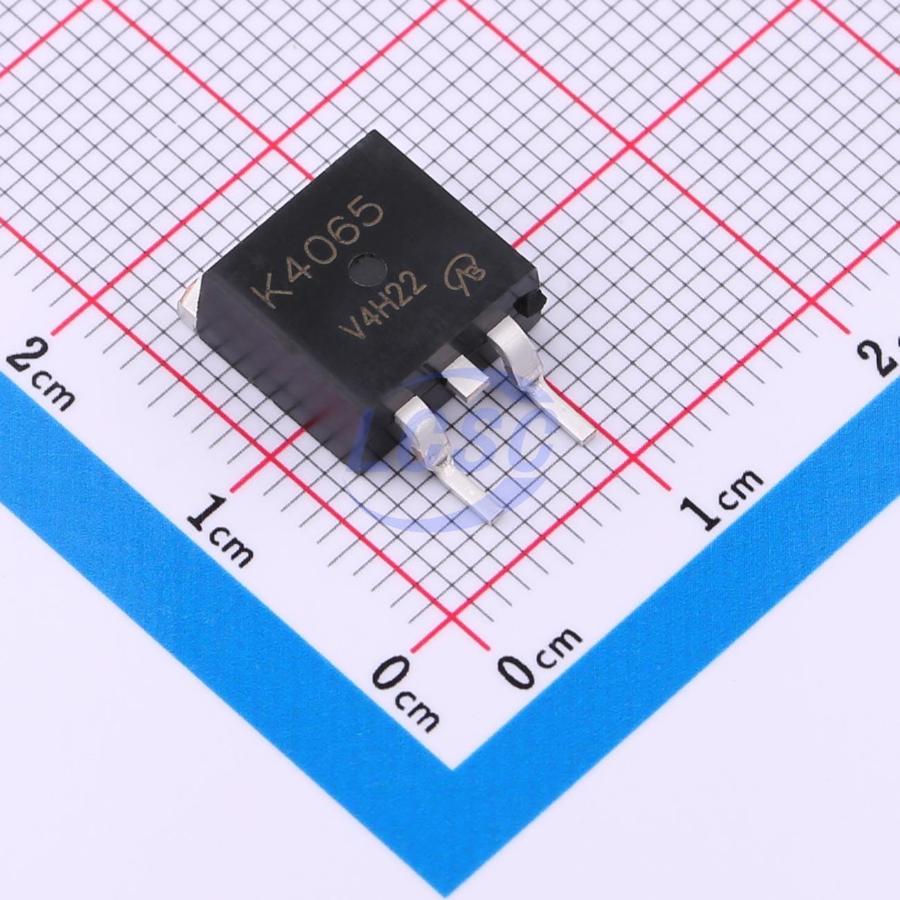

2SK4065-DL-1E-VB
N-Channel 80V 120A 370W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 80V 120A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 2SK4065-DL-1E-VB
- Store part #
- C29779824
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29779824
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹162.08 | ₹162.08 |
| 10+ | ₹135.54 | ₹1,355.40 |
| 30+ | ₹120.96 | ₹3,628.80 |
| 100+ | ₹95.41 | ₹9,541.00 |
| 500+ | ₹88.23 | ₹44,115.00 |
| 1,000+ | ₹84.83 | ₹84,830.00 |
1 × ₹162.08
₹162.08
excl. GST
₹191.25 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
2SK4065-DL-1E-VB
₹162.08 for 1 + GST
Specifications
- Output Capacitance(Coss)
- 1.395nF
- Ciss-Input Capacitance
- 3.33nF
- Pd - Power Dissipation
- 370W
- Drain to Source Voltage
- 80V
- Operating Temperature
- -55℃~+175℃
- Current - Continuous Drain(Id)
- 120A
- Reverse Transfer Capacitance (Crss)
- 95pF
- RDS(on)
- 6mΩ@10V;10mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 53.5nC@10V
- Vgs
- ±20V
- Gate Threshold Voltage (Vgs(th))
- 2.5V;4.5V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.5 g
Overview
Applications
- OR operation
- Server
- DC-DC conversion
Key features
- Thunder Power MOSFET
- Maximum junction temperature 175 °C
- 100% Rg and UIS tested
