VBsemi ElecDatasheet (PDF)

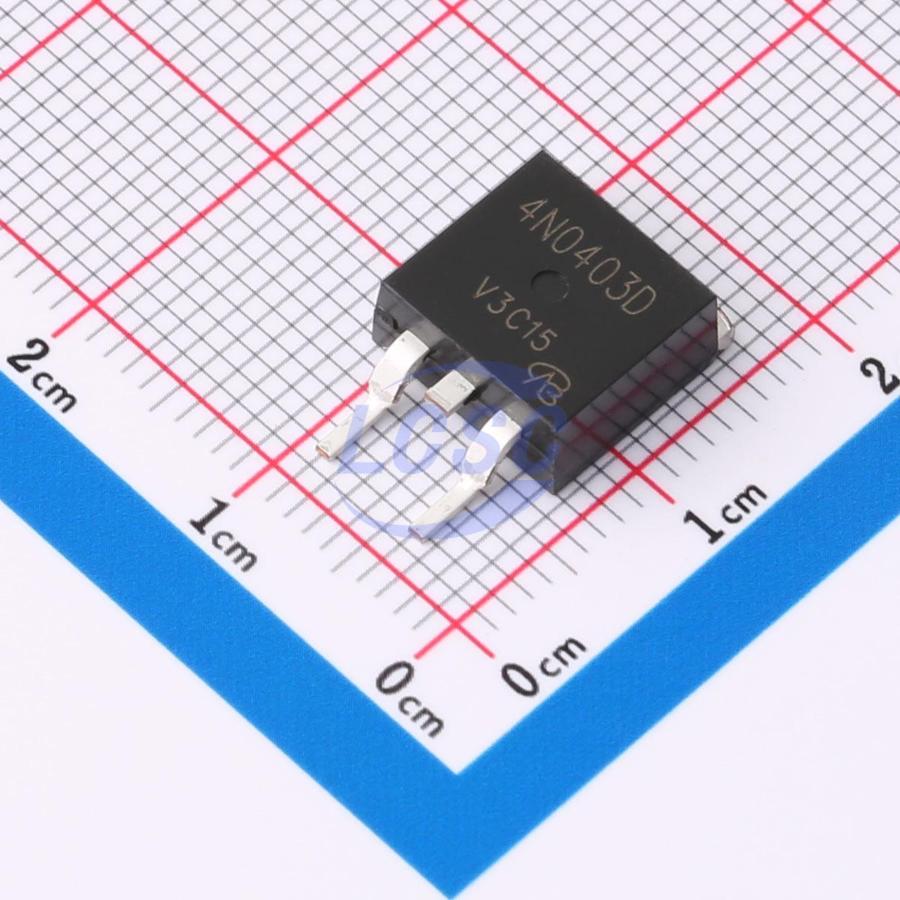

4N0403D TO263-VB
N-Channel 40V 150A 312W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)ROHS CompliantActive
MOSFET N-CH 40V 150A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 4N0403D TO263-VB
- Store part #
- C7568974
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
20 in stock
#C7568974
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹201.03 | ₹201.03 |
| 10+ | ₹167.84 | ₹1,678.40 |
| 50+ | ₹149.57 | ₹7,478.50 |
| 100+ | ₹128.77 | ₹12,877.00 |
| 500+ | ₹119.52 | ₹59,760.00 |
| 1,000+ | ₹115.33 | ₹1,15,330.00 |
1 × ₹201.03
₹201.03
excl. GST
₹237.22 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
4N0403D TO263-VB
₹201.03 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 650pF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 9nF
- Pd - Power Dissipation
- 312W
- Reverse Transfer Capacitance (Crss)
- 450pF
- RDS(on)
- 2mΩ@10V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 120nC@10V
- Gate Threshold Voltage (Vgs(th))
- 3V
- Type
- N-Channel
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.53 g
Overview
Applications
- Synchronous Rectification - Power Supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BUK761R7-40E-VB#C29779272VBsemi Elec · TO-263(D2PAK) | VBsemi Elec | TO-263(D2PAK) | 10 | ₹192.84 · 10 in stock | View |
 | BUK763R1-40B-VB#C52148720VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 10 | ₹208.99 · 10 in stock | View |
 | BUK963R2-40B-VB#C52148721VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 10 | ₹208.99 · 10 in stock | View |
 | PSMN2R8-40BS-VB#C52148722VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 10 | ₹208.99 · 10 in stock | View |
 | BUK763R6-40C,118-VB#C52190992VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹208.99 · 5 in stock | View |
