VBsemi ElecDatasheet (PDF)

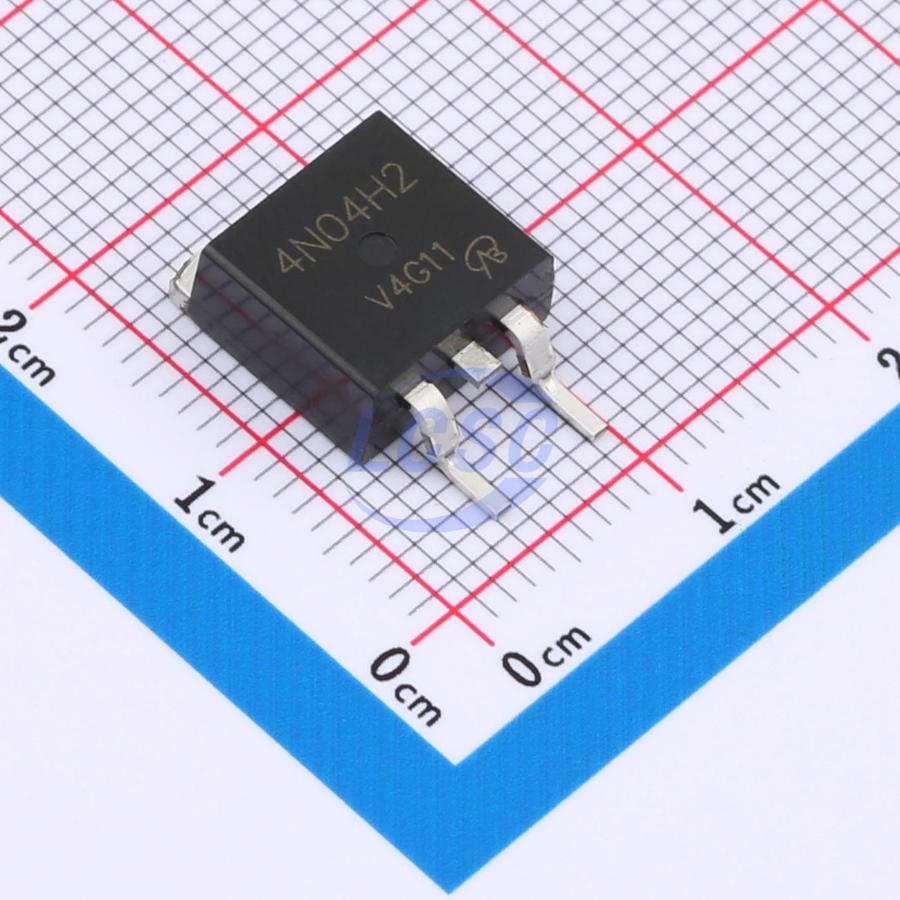

4N04H2-VB TO263
N-Channel 40V 150A 312W Surface Mount TO-263(D2PAK)
TO-263(D2PAK)RoHSActive
MOSFET N-CH 40V 150A TO-263(D2PAK)
- Manufacturer
- VBsemi Elec
- Manufacturer part #
- 4N04H2-VB TO263
- Store part #
- C29779242
- Package / case
- TO-263(D2PAK)
- Category
- Single FETs, MOSFETs
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
10 in stock
#C29779242
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹192.84 | ₹192.84 |
| 10+ | ₹159.43 | ₹1,594.30 |
| 50+ | ₹141.16 | ₹7,058.00 |
| 100+ | ₹120.37 | ₹12,037.00 |
| 500+ | ₹111.12 | ₹55,560.00 |
| 1,000+ | ₹107.14 | ₹1,07,140.00 |
1 × ₹192.84
₹192.84
excl. GST
₹227.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
4N04H2-VB TO263
₹192.84 for 1 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Drain to Source Voltage
- 40V
- Output Capacitance(Coss)
- 650pF
- Current - Continuous Drain(Id)
- 150A
- Ciss-Input Capacitance
- 9nF
- Pd - Power Dissipation
- 312W
- Reverse Transfer Capacitance (Crss)
- 450pF
- RDS(on)
- 1.7mΩ@10V;2.5mΩ@4.5V
- Number
- 1 N-channel
- Gate Charge(Qg)
- 120nC@10V
- Vgs
- ±25V
- Gate Threshold Voltage (Vgs(th))
- 1.2V
- Type
- N-Channel
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.4 g
Overview
Applications
- Synchronous rectification
- Power supply
Key features
- Trench power MOSFET
- 100% Rg and UIS tested
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | PSMN1R1-40BS,118-VB#C52190987VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹208.99 · 5 in stock | View |
 | BUK761R6-40E,118-VB#C52190988VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹208.99 · 5 in stock | View |
 | BUK963R1-40E,118-VB#C52190989VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹208.99 · 5 in stock | View |
 | BUK965R4-40E,118-VB#C52190990VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹208.99 · 5 in stock | View |
 | PSMN2R2-40BS,118-VB#C52190993VBsemi Elec · TO-263 | VBsemi Elec | TO-263 | 5 | ₹208.99 · 5 in stock | View |
