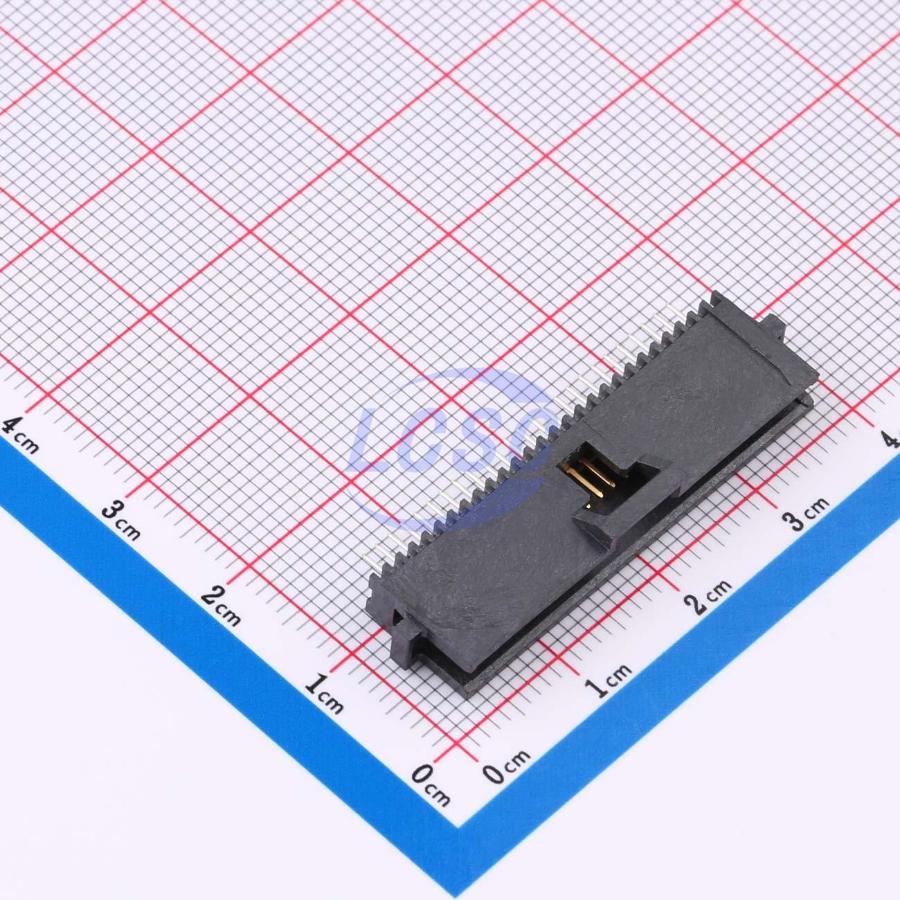

TE Connectivity

5-104071-5

1.27mm Through Hole 30V Tin -65℃~+105℃ 25P Black 25 1x25P 1 Through Hole,P=1.27mm Headers, Male Pins RoHS

Through Hole,P=1.27mmROHS3 CompliantActive

Manufacturer: TE Connectivity
Manufacturer part #: 5-104071-5
Store part #: C5166366
Package / case: Through Hole,P=1.27mm
Category: Headers, Male Pins
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

10 in stock

#C5166366

Stock & price checked 9 days ago

Quantity	Unit price	Pack price
1+	₹1,200.16	₹1,200.16
10+	₹1,171.99	₹11,719.90
30+	₹1,153.14	₹34,594.20
100+	₹1,134.50	₹1,13,450.00

Quantity (min 1)

1 × ₹1,200.16

₹1,200.16

excl. GST

₹1,416.19 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 13 per tube

5-104071-5

₹1,200.16 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Pitch: 1.27mm
Connector Type: Through Hole
Flame Retardant Rating: UL94V-0
Voltage Rating (Max): 30V
Contact Plating: Tin
Operating Temperature: -65℃~+105℃
Number of PINs: 25P
Contact Material: Copper alloy
Color: Black
Number of PINs Per Row: 25
Pin Structure: 1x25P
Number of Rows: 1

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tube-packed
Standard pack: 13 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 4.25 g

Overview

Recommended hole patterns, including basic dimensions for both odd and even spacing (see table). Contact areas are plated with 0.76μm gold, legacy TAICS plated with 3.81μm tin-lead, and overall plating of 1.27μm nickel. Circuit identification features are omitted on plug assemblies at pin positions 4, 5, 6, and 7. Dimensions apply to the bottom of the shroud and at the interface of pins and housing. For materials, the housing is LCP in black, and contacts are copper alloy.
