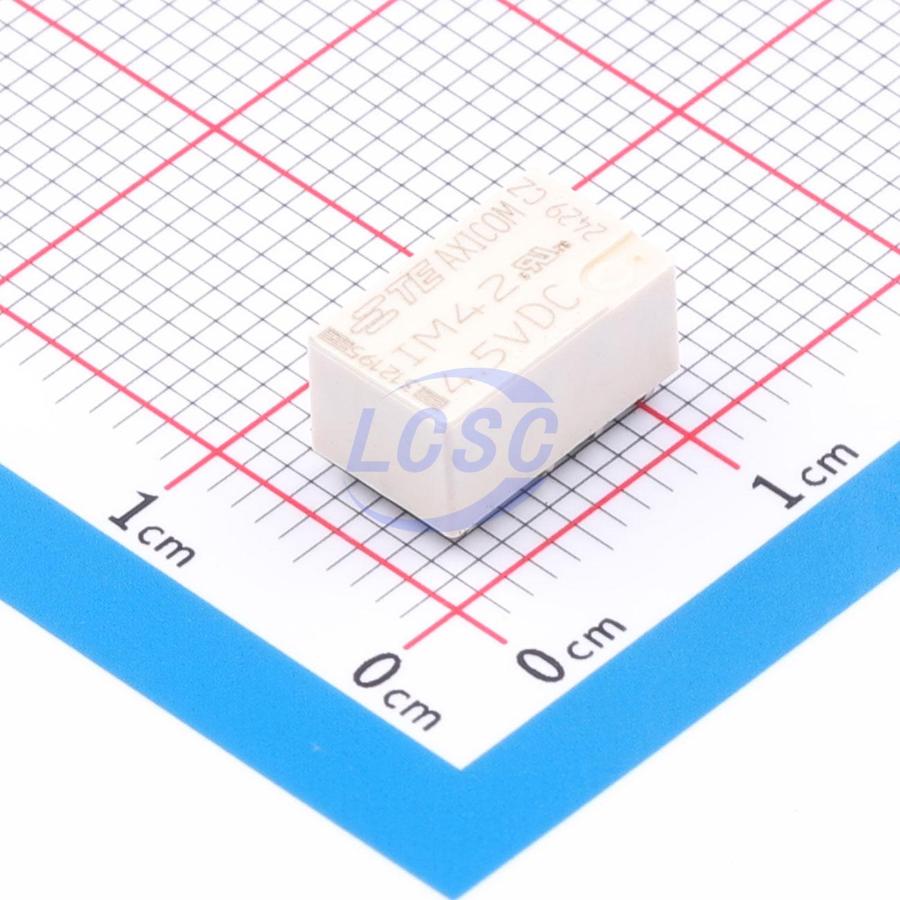

TE ConnectivityDatasheet (PDF)
5-1462037-7
2A 4.5V 2 Form C: 2C (DPDT-CO) SMD-8P,10x6mm Signal Relays, Up to 2 Amps RoHS
SMD-8P,10x6mmROHS3 CompliantActive
Signal Relays Slim line, low profile and min.board-space, Switching current, power and voltage, Low coil power consumption, High dielectric and surge capability, High mechanical shock resistance
- Manufacturer
- TE Connectivity
- Manufacturer part #
- 5-1462037-7
- Store part #
- C6818832
- Package / case
- SMD-8P,10x6mm
- Category
- Signal Relays, Up to 2 Amps
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
58 in stock
#C6818832
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,516.66 | ₹1,516.66 |
| 10+ | ₹1,336.72 | ₹13,367.20 |
| 30+ | ₹1,227.08 | ₹36,812.40 |
| 100+ | ₹1,135.29 | ₹1,13,529.00 |
1 × ₹1,516.66
₹1,516.66
excl. GST
₹1,789.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
5-1462037-7
₹1,516.66 for 1 + GST
Specifications
- Width
- 6.5mm
- Length
- 10mm
- Coil Type
- Single Coil
- Switching Voltage(Max)
- 250V@AC;220V@DC
- Switching Current(Max)
- 2A
- Coil Voltage
- 4.5V
- Release Time
- 3ms
- Operate Time
- 3ms
- Contact Form
- 2 Form C: 2C (DPDT-CO)
- Operating Temperature
- -40℃~+85℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.178 g
Overview
Slim line 10x6mm, low profile 5.65mm and min. board- space 60mm². Switching current 2/5A, switching power 60W/62.5VA and switching voltage 220VDC/250VAC. Low coil power consumption, 140mW standard, 100mW for high sensitive version, 50mW for ultra high sensitive version and 100mW for bistable version. High dielectric and surge capability up to 2500Vrms between open contacts and 2500Vrms between coil and contacts. High mechanical shock resistance up to 50g functional.
Applications
- Telecommunication
- access and transmission equipment
- optical network terminals
- modems
- office and business equipment
- consumer electronics
- measurement and test equipment
- industrial control
- medical equipment
- HVAC
Key features
- Slim line 10x6mm, low profile 5.65mm and min. board-space 60mm²
- Switching current 2/5A, switching power 60W/62.5VA and switching voltage 220VDC/250VAC
- Low coil power consumption, 140mW standard, 100mW for high sensitive version, 50mW for ultra high sensitive version and 100mW for bistable version
- High dielectric and surge capability up to 2500Vrms between open contacts and 2500Vrms between coil and contacts
- High mechanical shock resistance up to 50g functional
