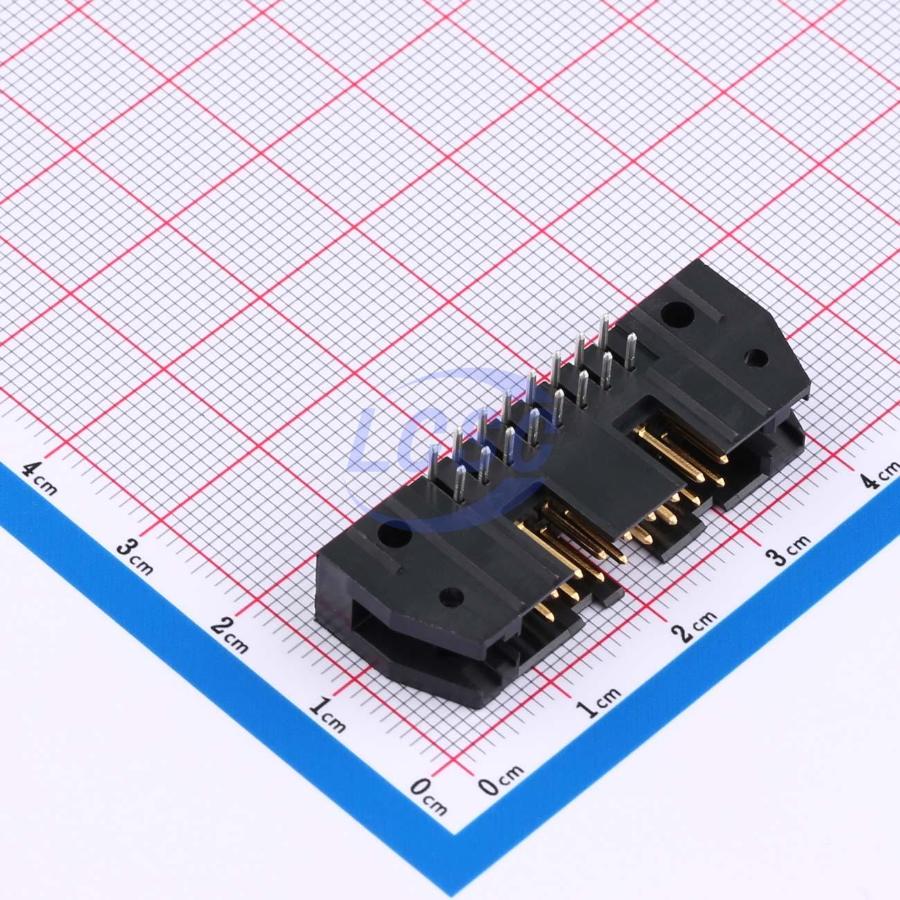

TE ConnectivityDatasheet (PDF)
5102160-3
Connector Header Right Angle -65℃~+105℃
Through Hole,Right AngleROHS3 CompliantActive
HEADER ASSY UNIVERSAL
- Manufacturer
- TE Connectivity
- Manufacturer part #
- 5102160-3
- Store part #
- C17455933
- Package / case
- Through Hole,Right Angle
- Category
- Headers, Male Pins
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
65 in stock
#C17455933
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹521.54 | ₹521.54 |
| 10+ | ₹493.58 | ₹4,935.80 |
| 30+ | ₹476.90 | ₹14,307.00 |
| 70+ | ₹460.01 | ₹32,200.70 |
| 490+ | ₹452.20 | ₹2,21,578.00 |
| 980+ | ₹448.74 | ₹4,39,765.20 |
1 × ₹521.54
₹521.54
excl. GST
₹615.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 70 per tray
5102160-3
₹521.54 for 1 + GST
Specifications
- Connector Type
- Right Angle
- Voltage Rating (Max)
- 250V
- Contact Material
- Brass
- Number of PINs Per Row
- 8
- Number of Rows
- 2
- Current Rating
- 1A
- Flame Retardant Rating
- UL94V-0
- Number of PINs
- 16P
- Contact Plating
- Tin
- Operating Temperature
- -65℃~+105℃
- Plastic Material
- Glass fiber reinforced PA
- Color
- Black
- Pin Structure
- 2x8P
- Row Spacing
- 2.54mm
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 70 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 6.636 g
Overview
Key features
- Coordinate dimensions apply from the basic position.
- 10 and 14 pin sizes contain only one slot for a snap-in polarizer (civilian polarization), position as shown.
- 10 pin size contains only one slot for dual polarization, position as shown.
- Recommended PCB thickness: 1.57 [0.062].
- Material: Housing — glass-filled nylon or polyester, UL94V-0 rated, color per table; contacts — brass.
- Finish: Contacts in selective plating area — flash gold over palladium-nickel, minimum thickness 0.76μm [0.000030]; solder tails — tin plating, minimum thickness 2.54μm [0.000100]; nickel underplate over entire contact, minimum thickness 1.27μm [0.000050]; or selective plating area — gold plating, minimum thickness 0.76μm [0.000030]; solder tails — tin plating, minimum thickness 2.54μm [0.000100]; nickel underplate over entire contact, minimum thickness 1.27μm [0.000050].
- Datums M and N are determined by the customer.
