TE ConnectivityDatasheet (PDF)

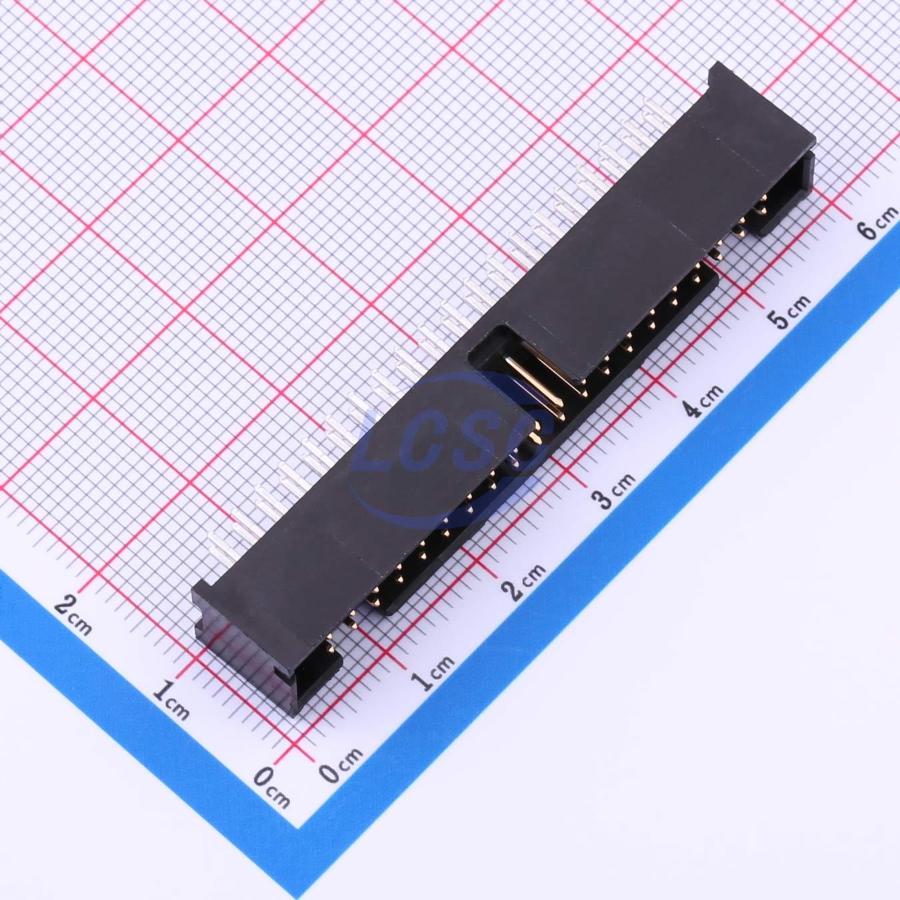

5103308-8
Connector Header 2.54mm Pitch 1A Through Hole -65℃~+105℃
Through Hole,P=2.54mmROHS3 CompliantActive
CONN HEADER TH 2.54mm
- Manufacturer
- TE Connectivity
- Manufacturer part #
- 5103308-8
- Store part #
- C305964
- Package / case
- Through Hole,P=2.54mm
- Category
- Headers, Male Pins
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
107 in stock
#C305964
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹426.77 | ₹426.77 |
| 10+ | ₹363.32 | ₹3,633.20 |
| 30+ | ₹325.51 | ₹9,765.30 |
| 100+ | ₹287.28 | ₹28,728.00 |
| 500+ | ₹269.67 | ₹1,34,835.00 |
| 1,000+ | ₹261.85 | ₹2,61,850.00 |
1 × ₹426.77
₹426.77
excl. GST
₹503.59 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 45 per tray
5103308-8
₹426.77 for 1 + GST
Specifications
- Connector Type
- Through Hole
- Voltage Rating (Max)
- 250V
- Contact Material
- Brass
- Number of PINs Per Row
- 20
- Number of Rows
- 2
- Pitch
- 2.54mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 1A
- Number of PINs
- 40P
- Contact Plating
- Tin
- Operating Temperature
- -65℃~+105℃
- Color
- Black
- X-Length of Bottom Edge on Board (Spacing Line)
- 58.42mm
- Pin Structure
- 2x20P
- Row Spacing
- 2.54mm
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tray
- Standard pack
- 45 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 4.13 g
Overview
Dual-pole polarization slot 2 center polarization slots For 10-position components, this slot position is omitted Datums U and V to be determined by customer Housing: glass-filled nylon or PBT, black, UL 94V-O rated. Contacts: brass Contacts: flash gold over palladium nickel plating, mating surface minimum total thickness 0.000015 in. (0.00038 mm), solder tail minimum tin plating thickness 0.000100 in. (0.00254 mm), overall contact minimum nickel underplate thickness 0.000050 in. (0.00127 mm); or mating surface minimum gold plating thickness 0.000015 in. (0.00038 mm), solder tail minimum tin plating thickness 0.000100 in. (0.00254 mm), overall contact minimum nickel underplate thickness 0.000050 in. (0.00127 mm) Ribs: all position sizes — 2 located at housing ends. 20 through 34 position sizes — 1 additional rib at housing center. 40 through 60 position sizes — 2 additional ribs evenly distributed across remaining housing length Recommended PCB layout
