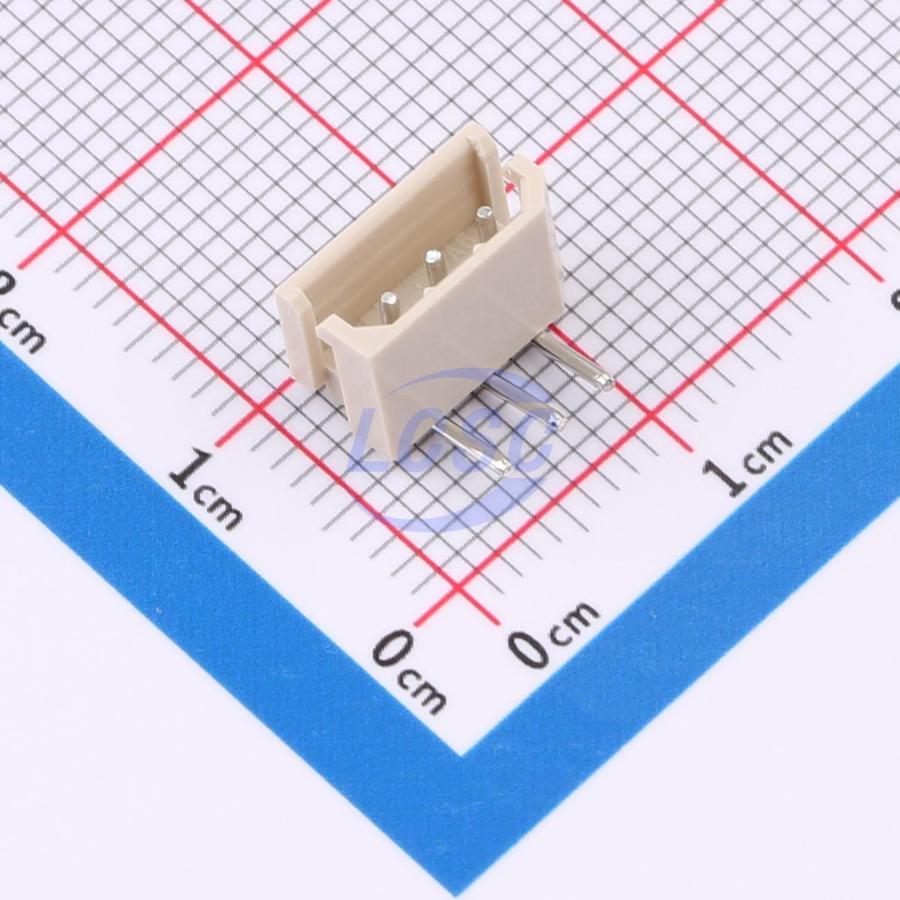

5264-3P WZMS

This specification applies to the production and inspection of the company's standard series strip connectors (pin headers). The product technical requirements are as follows: materials and plating are specified in the attached table; plastic part surfaces shall be smooth and clean, free from burrs, bubbles, burns, and deformation, with no pull marks, excess material, or material shortage at the gate; terminal surfaces shall be free from oxidation and plating defects. The applicable wire gauge is 28#~22#, applicable PCB thickness is 1.6mm, temperature range is -25℃~85℃, rated voltage is 250V AC/DC, rated current is 3A, contact resistance ≤0.02Ω, insulation resistance ≥1000MΩ, and withstanding voltage is 1000V AC/minute. Product surfaces shall be free from defects, contamination, cracks, and mechanical damage harmful to the product; contacts shall be free from corrosion, plating oxidation, and peeling. Outline dimensions shall conform to the attached drawings, and units of the same specifications shall be interchangeable. Regarding packaging, the inner packaging for plastic parts is plastic bags; terminals are inner-packaged in tape-and-reel format, with a certificate of conformity enclosed, indicating product name, specifications, quantity, and production date; outer packaging is a carton with a packing list attached, stating product name, specifications, quantity, and shipping date, with products secured against movement inside the carton. Transportation by any means is permitted, provided the products are kept dry and protected from mechanical damage.
