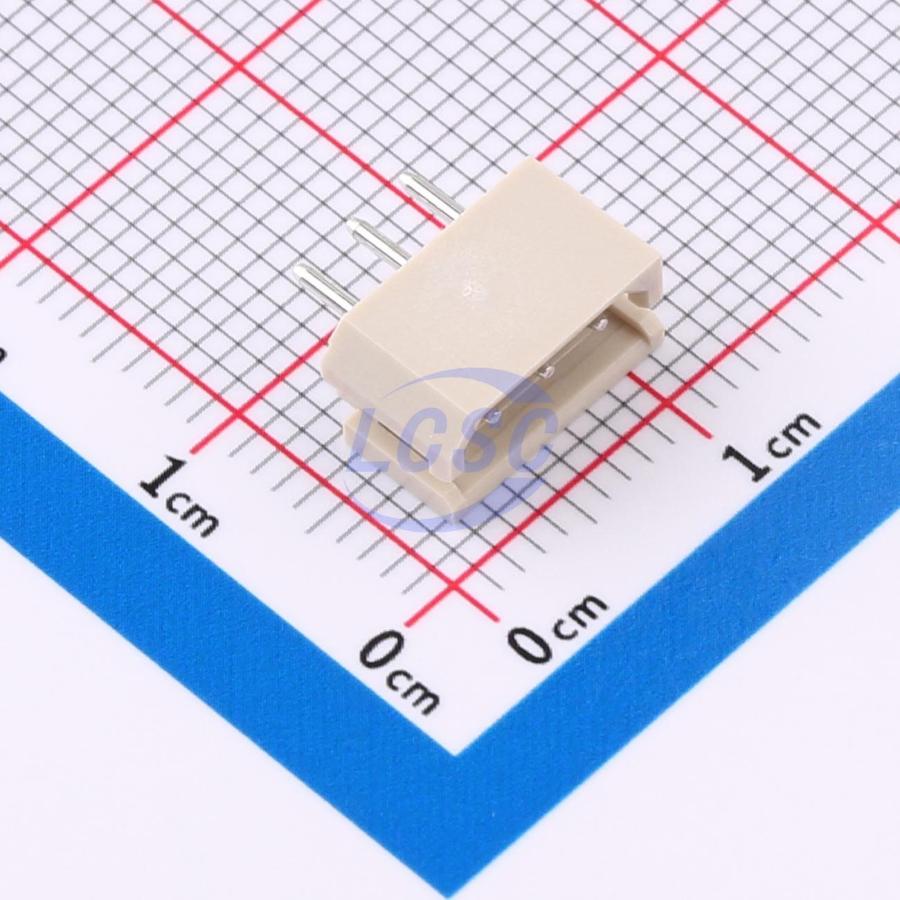

5264-3P ZZMS

This specification applies to the production and inspection of the company's standard series strip connectors (pin headers). The product technical requirements are as follows: - Materials and plating are specified in the attached table. - Plastic surfaces shall be smooth and clean, free from burrs, bubbles, burn marks, and deformation; gate areas shall be free from drag marks, excess material, or short shots. - Terminal surfaces shall be free from oxidation, plating defects, and similar issues. The applicable wire gauge is 28#~22#, applicable PCB thickness is 1.6mm, temperature range is -25℃~85℃, rated voltage is 250V AC/DC, rated current is 3A, contact resistance ≤0.02Ω, insulation resistance ≥1000MΩ, and withstanding voltage is 1000V AC/minute. Product surfaces shall be free from defects, contamination, cracks, and mechanical damage that could be detrimental to the product; contacts shall be free from corrosion, plating oxidation, and peeling. Outline dimensions shall conform to the attached drawings, and products of the same specification shall be interchangeable. Regarding packaging: the inner packaging for plastic parts is a plastic bag; terminals are inner-packaged in reel tape-and-reel format; a certificate of conformance shall be included, stating the product name, specification/model, quantity, and manufacturing date. The outer packaging is a carton with a packing list attached, indicating the product name, specification/model, quantity, and shipping date; products shall not shift or rattle inside the carton. Transportation by any means is permitted; protect from moisture and mechanical damage. Packaged connectors shall be stored in a warehouse with an ambient temperature of -10℃~+40℃ and relative humidity ≤80%, with no acidic, alkaline, or other corrosive gases in the ambient air.
