MOLEXDatasheet (PDF)

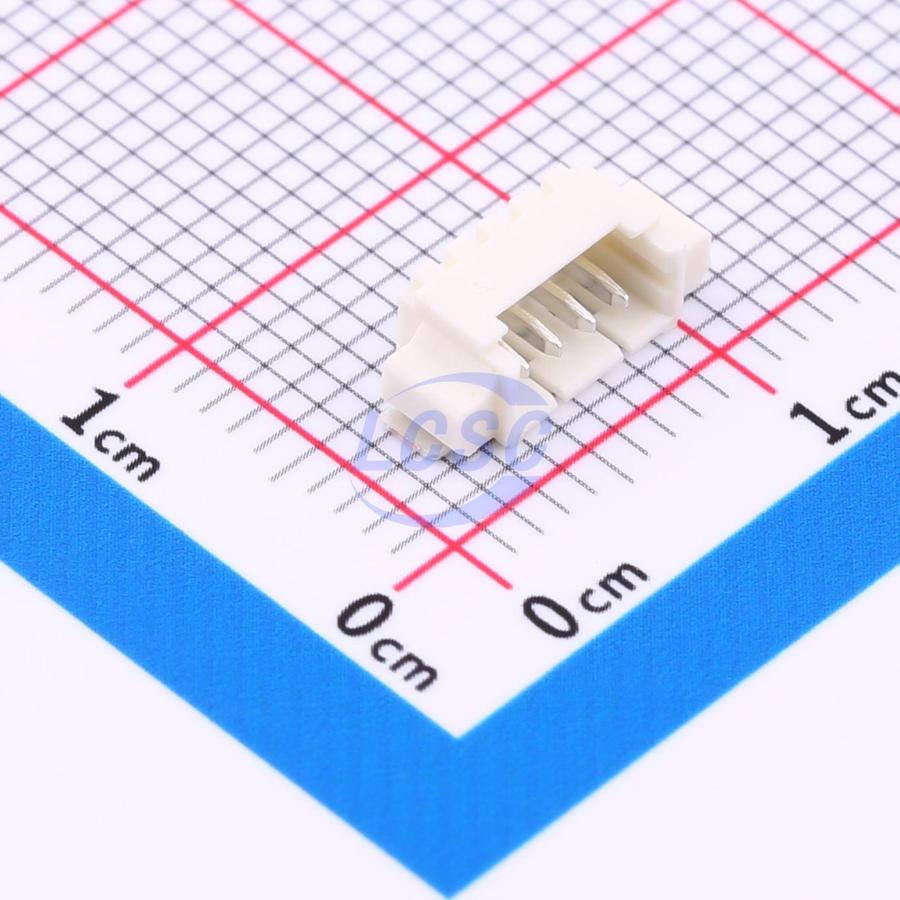

532610471
Connector Header 4 position 1.25mm Pitch 1A Surface Mount, Right Angle -40℃~+105℃
PopularSMD,P=1.25mm,Surface Mount,Right AngleROHS3 CompliantActive
CONN HEADER SMD R/A 4POS 1.25mm
- Manufacturer
- MOLEX
- Manufacturer part #
- 532610471
- Store part #
- C696092
- Package / case
- SMD,P=1.25mm,Surface Mount,Right Angle
- Category
- Headers, Male Pins
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
42,575 in stock
#C696092
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.91 | ₹99.55 |
| 50+ | ₹16.35 | ₹817.50 |
| 150+ | ₹14.53 | ₹2,179.50 |
| 500+ | ₹13.02 | ₹6,510.00 |
| 3,200+ | ₹12.49 | ₹39,968.00 |
| 4,800+ | ₹12.13 | ₹58,224.00 |
5 × ₹19.91
₹99.55
excl. GST
₹117.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,600 per reel
532610471
₹99.55 for 5 + GST
Specifications
- Connector Type
- Surface Mount, Right Angle
- Reference Series
- PicoBlade(MX 1.25)
- Voltage Rating (Max)
- 125V
- Contact Material
- Phosphor bronze
- Number of PINs Per Row
- 4
- Number of Rows
- 1
- Pitch
- 1.25mm
- Current Rating
- 1A
- Flame Retardant Rating
- UL94V-0
- Supplementary Features
- Auxiliary Solder Pin
- Contact Plating
- Tin
- Operating Temperature
- -40℃~+105℃
- Number of PINs
- 4P
- Plastic Material
- Glass fiber reinforced PA
- Color
- White
- X-Length of Bottom Edge on Board (Spacing Line)
- 10.15mm
- Pin Structure
- 1x4P
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,600 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 2 g
