DIODESDatasheet (PDF)

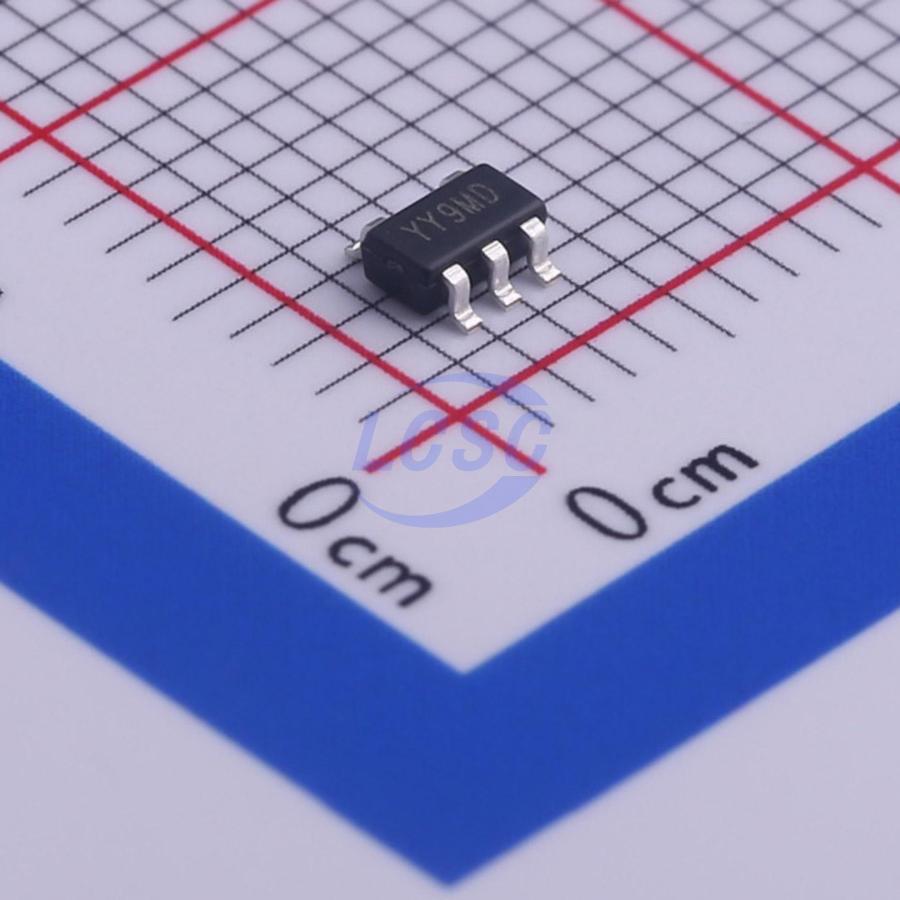

74AHC1G125W5-7
Schmitt trigger 2V~5.5V 1 1 4.8ns@5V,50pF SOT-25 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-25ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- 74AHC1G125W5-7
- Store part #
- C460489
- Package / case
- SOT-25
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,690 in stock
#C460489
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.12 | ₹60.60 |
| 50+ | ₹9.70 | ₹485.00 |
| 150+ | ₹8.48 | ₹1,272.00 |
| 500+ | ₹7.57 | ₹3,785.00 |
| 3,000+ | ₹6.85 | ₹20,550.00 |
| 6,000+ | ₹6.48 | ₹38,880.00 |
5 × ₹12.12
₹60.60
excl. GST
₹71.51 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G125W5-7
₹60.60 for 5 + GST
Specifications
- Function
- Output enable
- Input type
- Schmitt trigger
- Current - Output High(IOH)
- 8mA
- Voltage - Supply
- 2V~5.5V
- Series
- 74AHC
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 4.8ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.023 g
Overview
The 74AHC1G125 is a single non-inverting buffer/bus driver with a 3-state output. The output enters a high impedance state when a HIGH-level is applied to the output enable (OE) pin. The device is designed for operation with a power supply range of 2.0V to 5.5V.
Applications
- General Purpose Logic
- Wide array of products such as:
- PCs, networking, notebooks, netbooks, PDAs
- Computer peripherals, hard drives, CD/DVD ROM
- TV, DVD, DVR, set top box
- Phones, Personal Navigation / GPS
- MP3 players, Cameras, Video Recorders
Key features
- Supply Voltage Range from 2.0V to 5.5V
- ±8 mA Output Drive at 5.0V
- CMOS low power consumption Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for Slower Input Rise and Fall Time
- ESD Protection per JESD 22:
- Exceeds 200-V Machine Model (A115-A)
- Exceeds 2000-V Human Body Model (A114-A)
- Exceeds 1000-V Charged Device Model (C101C)
- Latch-Up Exceeds 100mA per JESD 78, Class II
- SOT25 and SOT353: Assembled with “Green” Molding Compound (no Br, Sb)
- Lead Free Finish / RoHS Compliant
