NexperiaDatasheet (PDF)

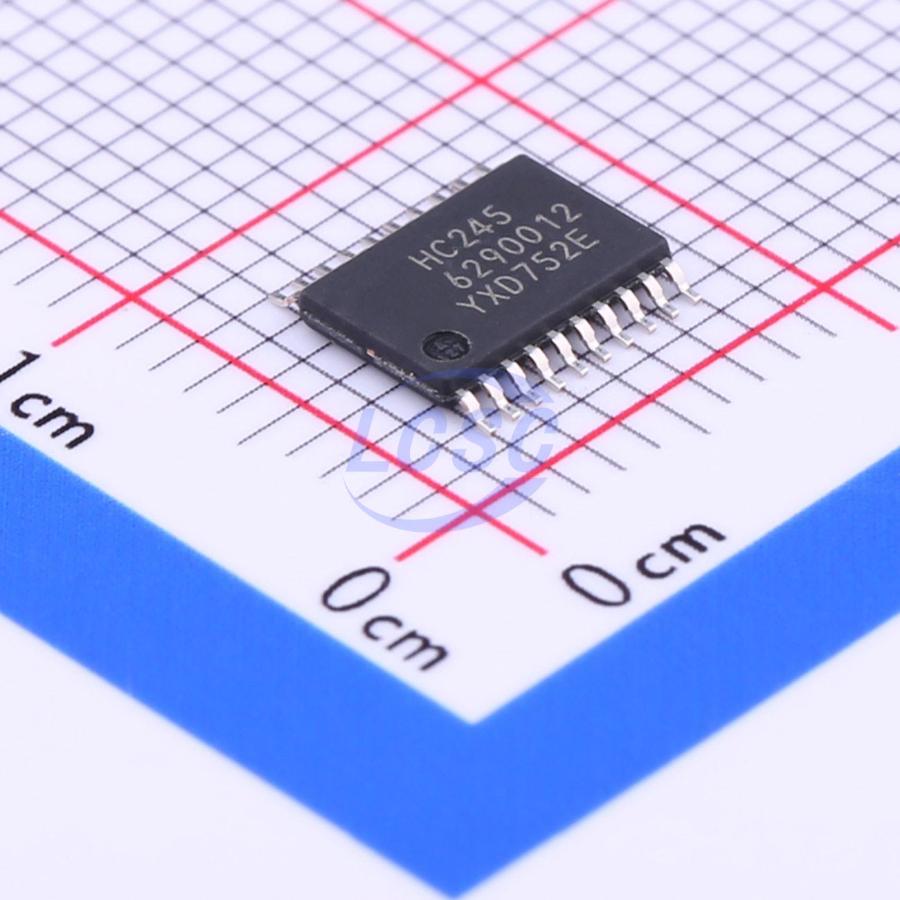

74HC245PW,118
2V~6V 8 1 9ns@4.5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
Octal bus transceiver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC245PW,118
- Store part #
- C5626
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,965 in stock
#C5626
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.30 | ₹116.50 |
| 50+ | ₹18.09 | ₹904.50 |
| 150+ | ₹15.55 | ₹2,332.50 |
| 500+ | ₹13.27 | ₹6,635.00 |
| 2,500+ | ₹12.65 | ₹31,625.00 |
| 5,000+ | ₹12.28 | ₹61,400.00 |
5 × ₹23.30
₹116.50
excl. GST
₹137.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC245PW,118
₹116.50 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 9ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.317 g
Overview
The 74HC245; 74HCT245 is an 8-bit transceiver with 3-state outputs. The device features an output enable (OE) and send/receive (DIR) for direction control. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- 8-channel bidirectional bus interface
Key features
- Wide supply voltage range from 2.0 to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Octal bidirectional bus interface
- Non-inverting 3-state outputs
- Input levels: For 74HC245: CMOS level For 74HCT245: TTL level
- Complies with JEDEC standards
- JESD8C (2.7 V to 3.6 V) JESD7A (2.0V to 6.0 V)
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- ESD protection:
- HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| 74HC245PW-Q100J#C546760Nexperia · TSSOP-20 | Nexperia | TSSOP-20 | 1,633 | ₹51.56 · 1,633 in stock | View | |
 | SN74HC245PW(LX)#C22374053lingxingic · TSSOP-20 | lingxingic | TSSOP-20 | 26,400 | ₹15.98 · 26,400 in stock | View |
 | CJ74HC245BGN#C52145530JSCJ · TSSOP-20 | JSCJ | TSSOP-20 | 3,895 | ₹29.69 · 3,895 in stock | View |
 | SN74HC640PWR#C2675936TI · TSSOP-20 | TI | TSSOP-20 | 27 | ₹212.92 · 27 in stock | View |
 | MC74HC245ADTR2G#C179581onsemi · TSSOP-20 | onsemi | TSSOP-20 | 2,490 | ₹75.45 · 2,490 in stock | View |
