74HC541D,653
2V~6V 8 1 12ns@4.5V,50pF SOIC-20-300mil Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-20-300milROHS3 CompliantActive

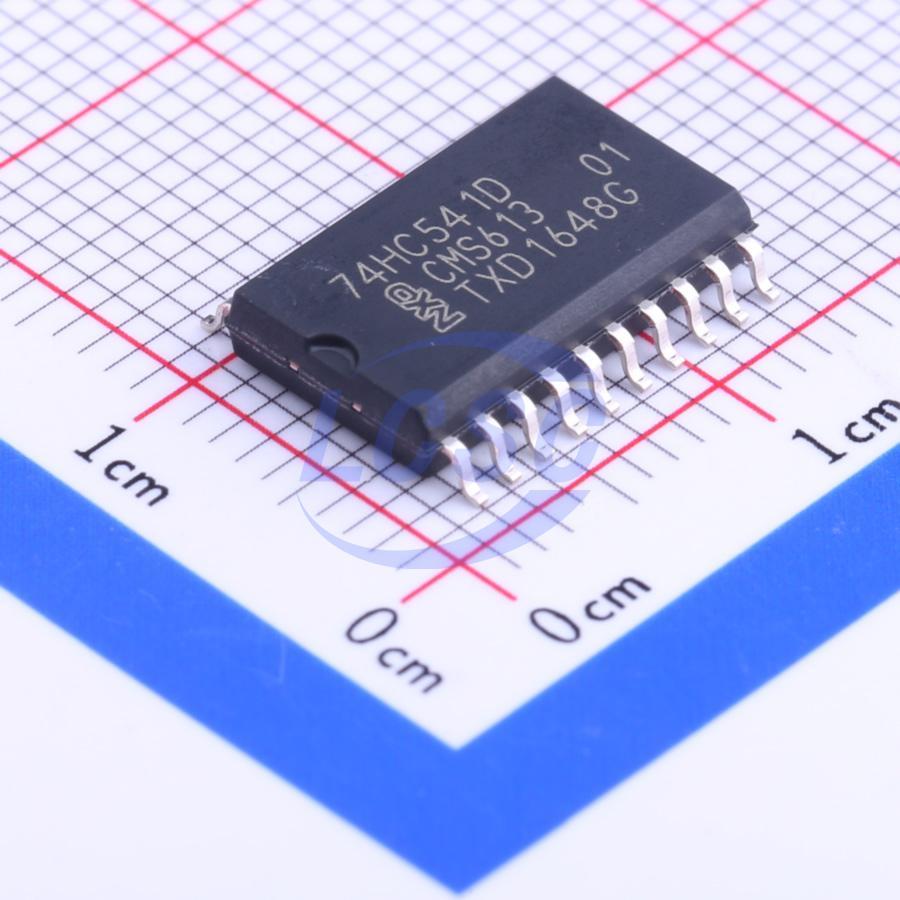

Octal buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC541D,653
- Store part #
- C126008
- Package / case
- SOIC-20-300mil
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,488 in stock
#C126008
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹61.78 | ₹61.78 |
| 10+ | ₹49.82 | ₹498.20 |
| 30+ | ₹44.60 | ₹1,338.00 |
| 100+ | ₹38.08 | ₹3,808.00 |
| 500+ | ₹31.98 | ₹15,990.00 |
| 1,000+ | ₹30.24 | ₹30,240.00 |
1 × ₹61.78
₹61.78
excl. GST
₹72.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
74HC541D,653
₹61.78 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Current - Output Low(IOL)
- 7.8mA
- Output Type
- Tri-State
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 12ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.809 g
Overview
The 74HC541; 74HCT541 is an octal non- inverting buffer/line driver with 3- state outputs. The device features two output enables (OE1 and OE2). A HIGH on OE9 causes the outputs to assume a high- impedance OFF- state. Inputs include clamp diodes that enable the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 to 6.0V
- CMOS low power dissipation
- High noise immunity
- Latch- up performance exceeds 100 mA per JESD 78 Class II Level B
- Non- Inverting outputs
- Comples with JEDEC standards: JESD8C 2.7V to 3.6V, JESD7A 2.0V to 6.0V
- Input levels: For 74HC541: CMOS levels; For 74HCT541: TTL levels
- ESD protection: HBM JESD22- A114F exceeds 2000 V, MM JESD22- A115- A exceeds 200 V
- Specified from - 40°C to +85°C and from - 40°C to +125°C
