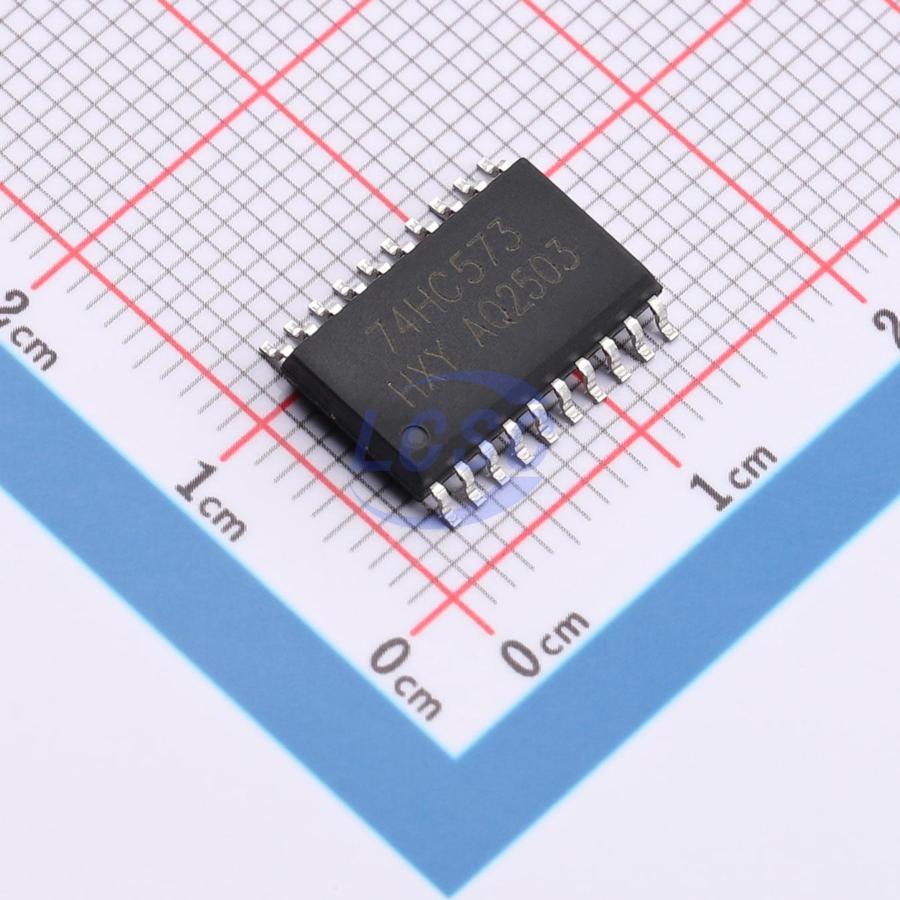

74HC573
D Latch 2V~6V 8 14ns SOP-20 Latches RoHS
8-bit D-type latch with three-state output
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- 74HC573
- Store part #
- C6851434
- Package / case
- SOP-20
- Category
- Latches
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,550 in stock
#C6851434
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.58 | ₹147.90 |
| 50+ | ₹23.96 | ₹1,198.00 |
| 150+ | ₹21.55 | ₹3,232.50 |
| 500+ | ₹18.55 | ₹9,275.00 |
| 2,000+ | ₹15.60 | ₹31,200.00 |
| 4,000+ | ₹14.79 | ₹59,160.00 |
5 × ₹29.58
₹147.90
excl. GST
₹174.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
74HC573
₹147.90 for 5 + GST
Specifications
- Quiescent Current
- 8uA
- Logic Type
- D Latch
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+85℃
- Setup Time
- 4ns
- Number of Gates
- 8
- Hold Time
- 1ns
- Propagation Delay
- 14ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.774 g
Overview
The 74HC/HCT573 is an 8-bit D-type latch with 3-state outputs. The device features a Latch Enable (LE) pin and an Output Enable (OE) pin. When LE is HIGH, input data is entered into the latches; the latches are transparent, and their outputs change in response to the corresponding D inputs. When LE is LOW, the latches store the information that was present at the inputs one setup time prior to the falling edge of LE. A HIGH on OE forces the outputs into a high-impedance state. Operation of the OE input does not affect the state of the latches. Input clamping diodes are provided, allowing input interfacing to voltages exceeding VCC through current-limiting resistors.
Key features
- Input levels: CMOS for 74HC573, TTL for 74HCT573.
- Input and output pins on opposite sides of the package for easy microprocessor interfacing.
- Suitable as I/O ports for microprocessors and microcomputers.
- Three-state non-inverting outputs for bus applications with common three-state output enable.
- Operating temperature range: -40°C ~ +85°C.
- Package types: DIP-20, SOP-20 (SOIC-20-300mil), TSSOP-20.
