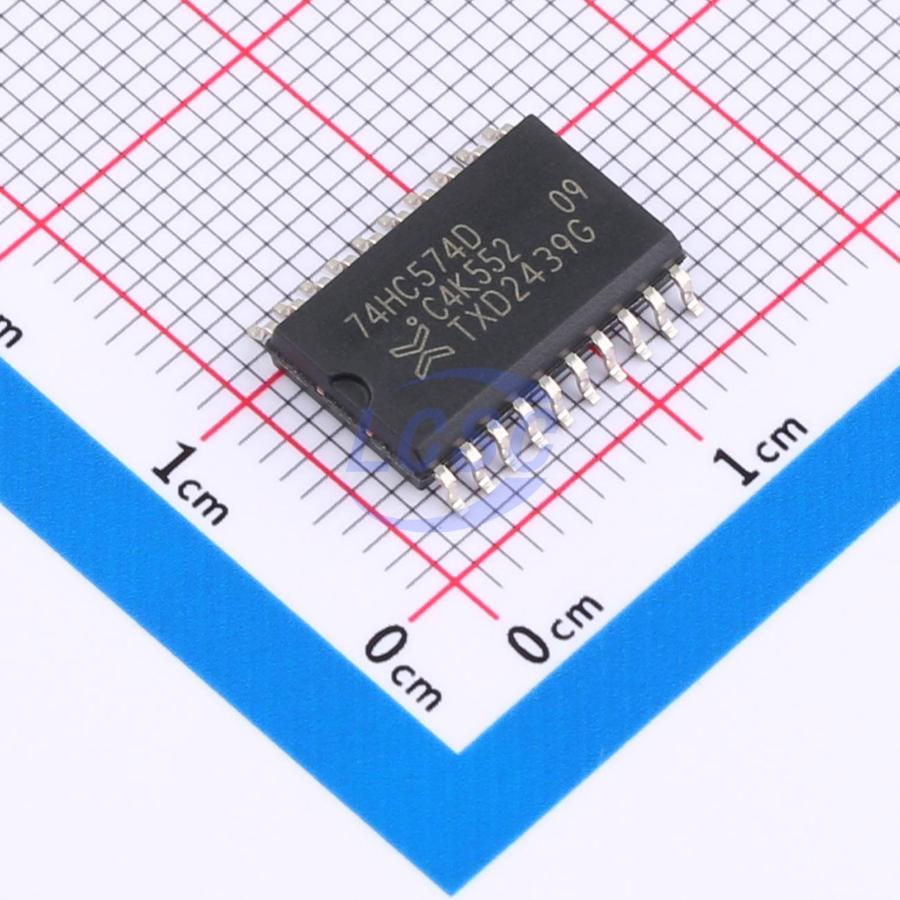

Octal D-type flip-flop; positive edge-trigger; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC574D,653
- Store part #
- C16501
- Package / case
- SOIC-20-300mil
- Category
- Flip Flops
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
43,005 in stock
#C16501
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.72 | ₹213.60 |
| 50+ | ₹33.27 | ₹1,663.50 |
| 150+ | ₹29.24 | ₹4,386.00 |
| 500+ | ₹24.18 | ₹12,090.00 |
| 2,000+ | ₹21.95 | ₹43,900.00 |
| 4,000+ | ₹20.60 | ₹82,400.00 |
5 × ₹42.72
₹213.60
excl. GST
₹252.05 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
74HC574D,653
₹213.60 for 5 + GST
Specifications
- Voltage - Supply
- 2V~6V
- Number of Bits per Element
- 8
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Series
- 74HC Series
- Number of Elements
- 1
- Current - Output High(IOH)
- 6mA
- Current - Output Low(IOL)
- 6mA
- Quiescent Current
- 8uA
- Setup Time
- 12ns
- Hold Time
- 5ns
- Propagation Delay
- 17ns@4.5V,50pF
- Trigger Type
- Rising Edge
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.55 g
Overview
The 74HC574; 74HCT574 is an 8-bit positive-edge triggered D-type flip-flop with 3-state outputs. The device features a clock (CP) and output enable (OE) inputs. The flip-flops will store the state of their individual D-inputs that meet the set-up and hold time requirements on the LOW-to-HIGH clock (CP) transition. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Operation of the OE input does not affect the state of the flip-flops. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards: JESD8C (2.7 V to 3.6 V) JESD7A (2.0 V to 6.0 V)
- Input levels: For 74HC574: CMOS level For 74HCT574: TTL level
- 3-state non-inverting outputs for bus oriented applications
- 8-bit positive, edge-triggered register
- Common 3-state output enable input
- ESD protection:
- HBM JESD22-A114F exceeds 2 kV
- MM JESD22-A115-A exceeds 200 V
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
